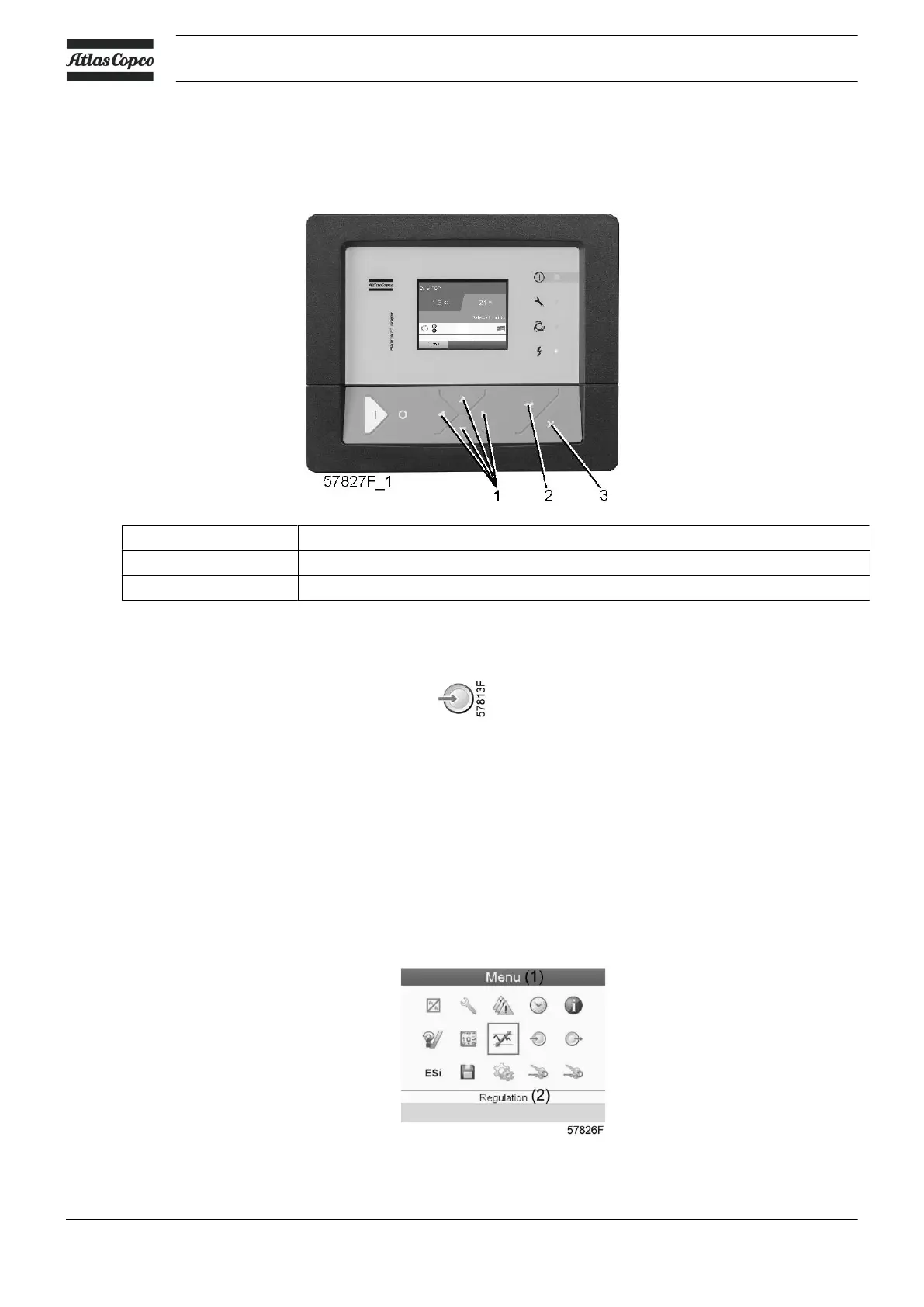

3.6 Inputs menu
Control panel
(1) Scroll keys
(2) Enter key
(3) Escape key
Menu icon, Inputs
Function
• To display the actual value of the measured data (analog inputs) and the status of the digital inputs (e.g.
emergency stop contact, motor overload relay, etc.).
• To select the digital input to be shown on the chart in the main screen.
Procedure
Starting from the main screen (see Main screen),
• Move the cursor to the action button Menu and press the Enter key. Following screen appears:
Text on image
Instruction book
32 2920 7104 10
