Repair Instructions No.166.11/95
PHE 16 RL-N / PHE 20 N
Special Tools
Required
■ Assembly cone
Important! ■ Before beginning the maintenance work, perform an initial check with a high voltage test according
to VDE (see chapter Electrical and Mechanical Test Instructions).
■ Before all repair work, pull the power plug from the socket!

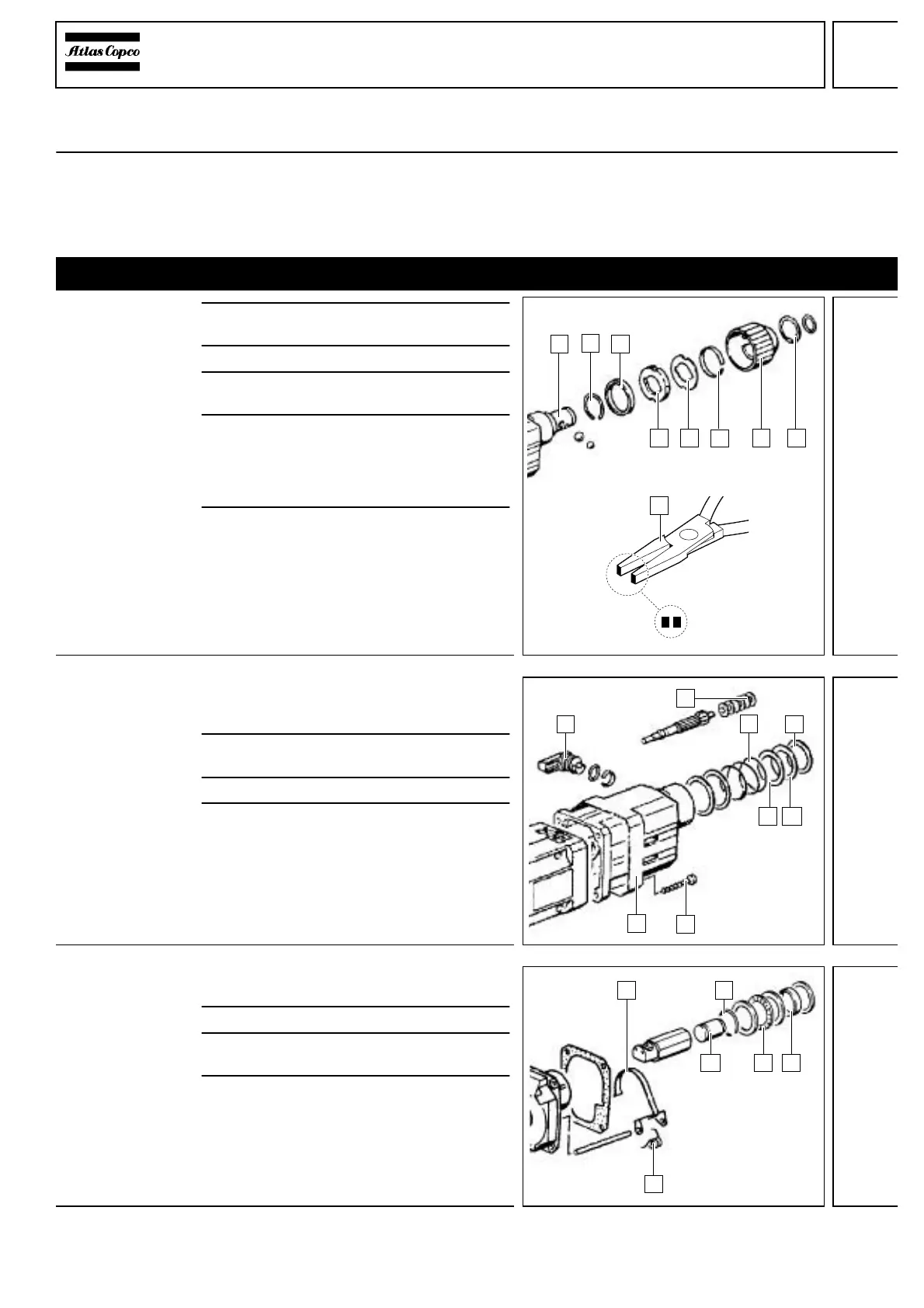

Disassembly
Dismantling the
drill spindle
1 Remove the spring ring (4) with aid of
special pliers and pull off the sleeve (5).
2 Remove the nosepiece.
3 Remove the spring (6), the jumper ring (7),
and the spacer (8).
4 Remove the balls from the drill spindle (1).
☞
Drill a hole into the sealing ring (3) with
a drill bit 3 - 3.5 mm and lever the ring
off with aid of a screwdriver.
5 Remove the sleeve (2) with aid of special
pliers (see illustration).
Dismantling the
gear box
1 Remove the spring (3), the discs (4), the
teflon-coated disc (5), as well as all the
other discs.
2 Move the hammer switch lever (1) to the
neutral position (30 ° before drill position).
3 Unscrew (6) and remove the gear box (7).
4 Remove all disc springs (2).
Removing the
pillow block
1 Lift the pillow block (1) and the spring (6)
with aid of a screwdriver.
2 Remove the drill spindle.
3 Remove the cylinder. Remove the
percussion body (5) from the cylinder.
4 Remove the spring ring (2), the bearing
discs, the axial needle bearing (4), the
spacer (3), and the disc.
4
6
7
2
1
3
8
5
9
1
1
3
4
2
6
7
5
4
2
1
2
345
6
3
