Repair Instruction No. 174.3/95
PHE 26 RA
Removing the
spindle

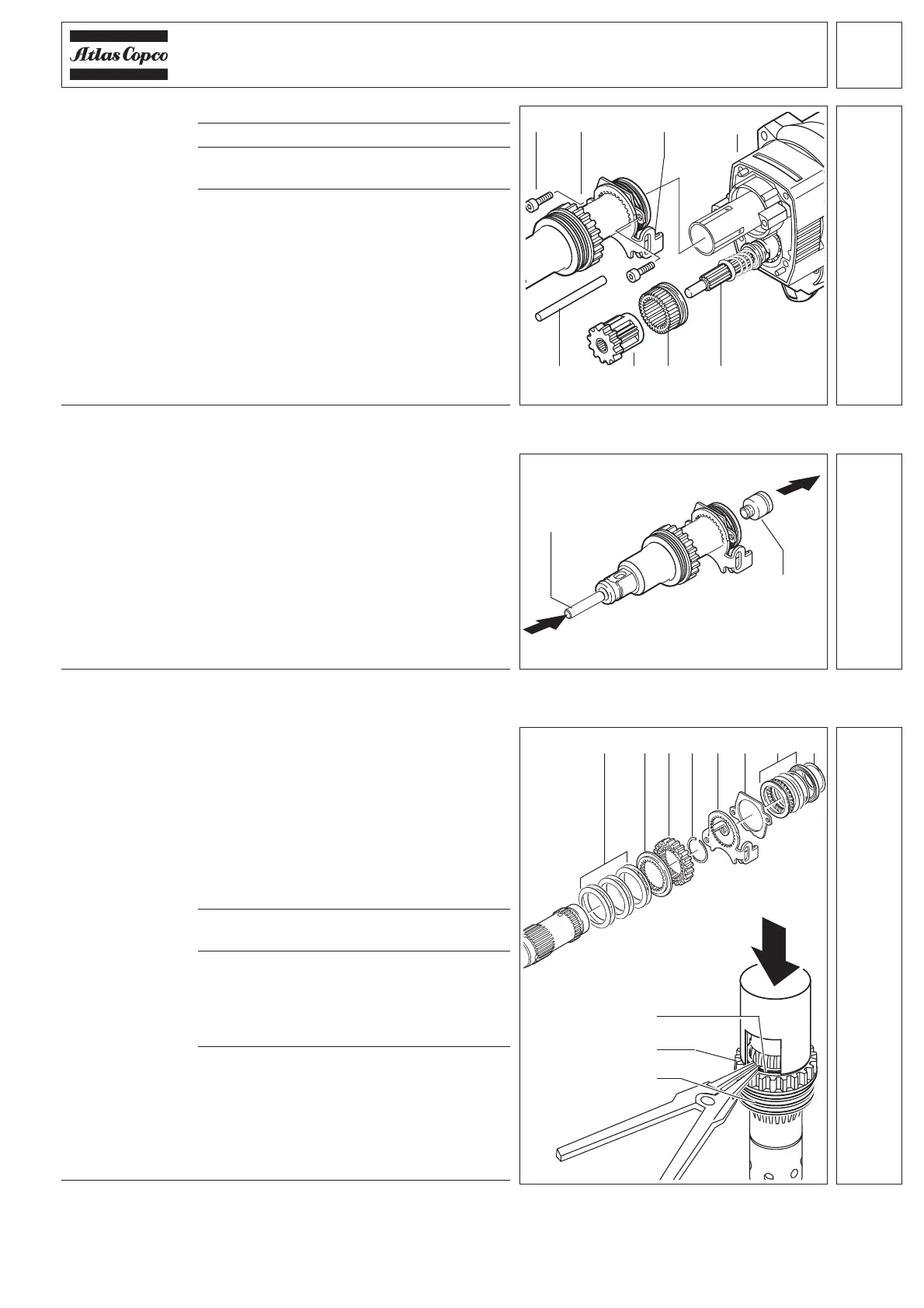

1 Remove the two screws (1).
2 Remove the straight pin (5).
3 Remove the planetary gear (6) and the
ring gear (7).
4 Remove the complete spindle sleeve (2)
from the cylinder.
1 Removing the rear thrust bearing (7):
Lever off the special locking ring (8) with a
screwdriver and remove it (peel it off like a
key ring). The thrust bearing can be
removed in the following component
parts:
– washer
– thrust bearing
– two compensating washers
– profile ring with damper-O-ring
2 Remove the retaining clip (6) and the
locking slide (5).
3 Removing the spindle wheel (3):
Press the spindle wheel with a sleeve
against the disk springs (1) – the locking
ring (4) is released and can be removed
with pliers. Remove the spindle wheel.
4 Remove the ratchet (2) and the disk
springs (1).
Dismantling the
spindle
(removing the
inner locking
ring)
1 Place the spindle vertically and briefly hit
the plunger (1) with a mandril - the
striker (2) comes free.
Removing the
striker
1324
5678
3
4
2
1
5
3
4
1
3456278
1
