Installation
46 Mono Power Unit BUM 62 T
5.99009.03 Baumüller Nürnberg GmbH
6.6.3 Controller connection
Plug-in terminal X60. Refer to the description of the controller.
6.6.4 Safety relay (as an option)
The safety relay is used to disconnect load from the drive by switching of the +24V via contacts 3 and 4.

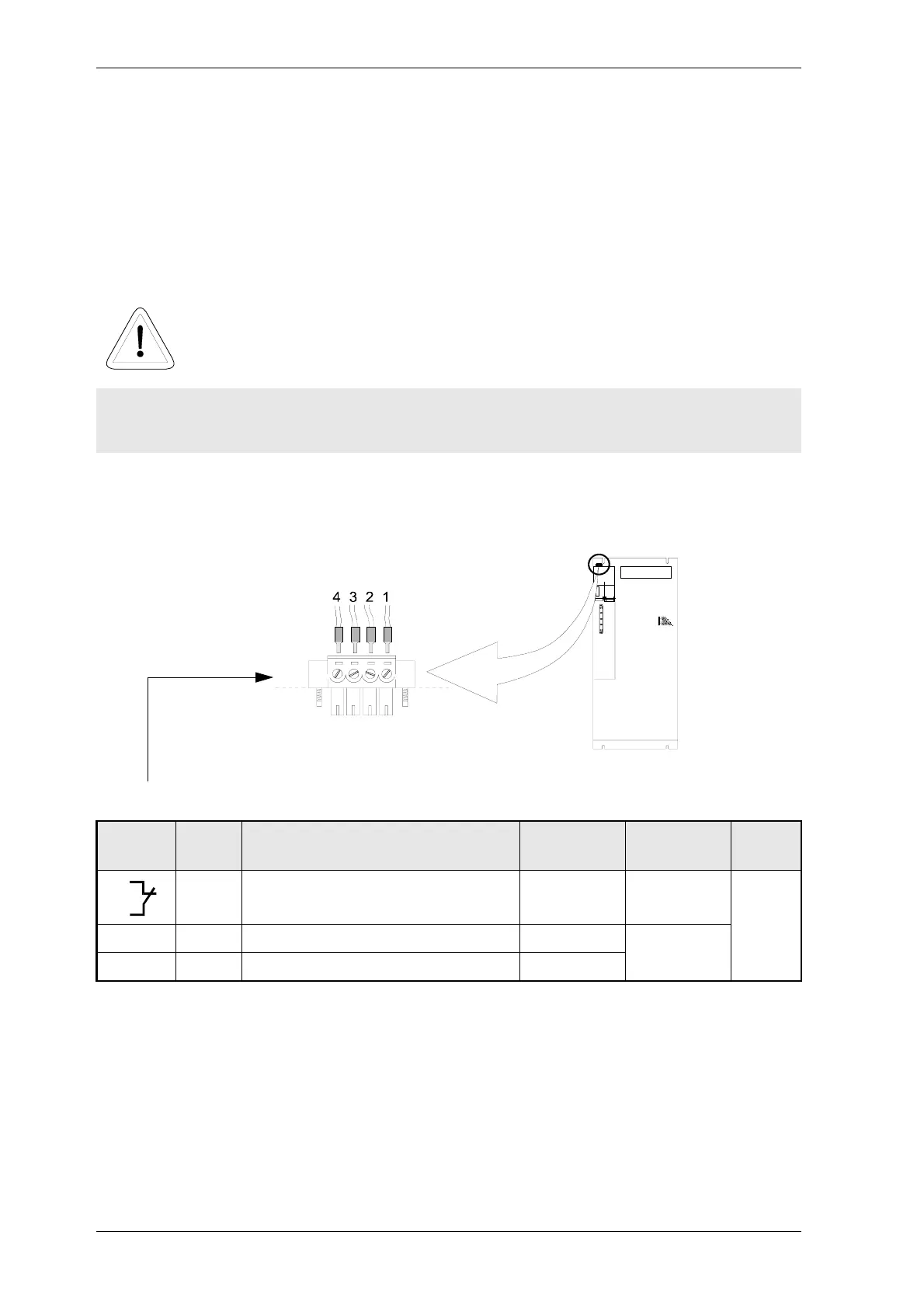

Plug-in terminal X68
Screw connection, cable with wire crimp
1. Position
2. Voltage range (r.m.s. value)
3. Current range (r.m.s. value)
4. Cross-section of the conductor
WARNING
The user must prevent overloading of the relay contacts, e.g. by suitable fuses.
The load of 10 mA is a minimum load to ensure permanently a trouble-free function.
Termina
l
Pos.
1)
Description U
range
2)
I
range
3)
A
4)
1
2
Feedback whether the safety relay
is supplied with 24 V
+24 V max. 8 A
1.5 mm
2
+24 V 3 + 24 V connection for the safety relay (PELV) +24 V max. 25 mA
M 24 V 4 Ground connection for the safety relay (PELV) 0 V
