Behringer 914 Fixed Filter Bank User Manual

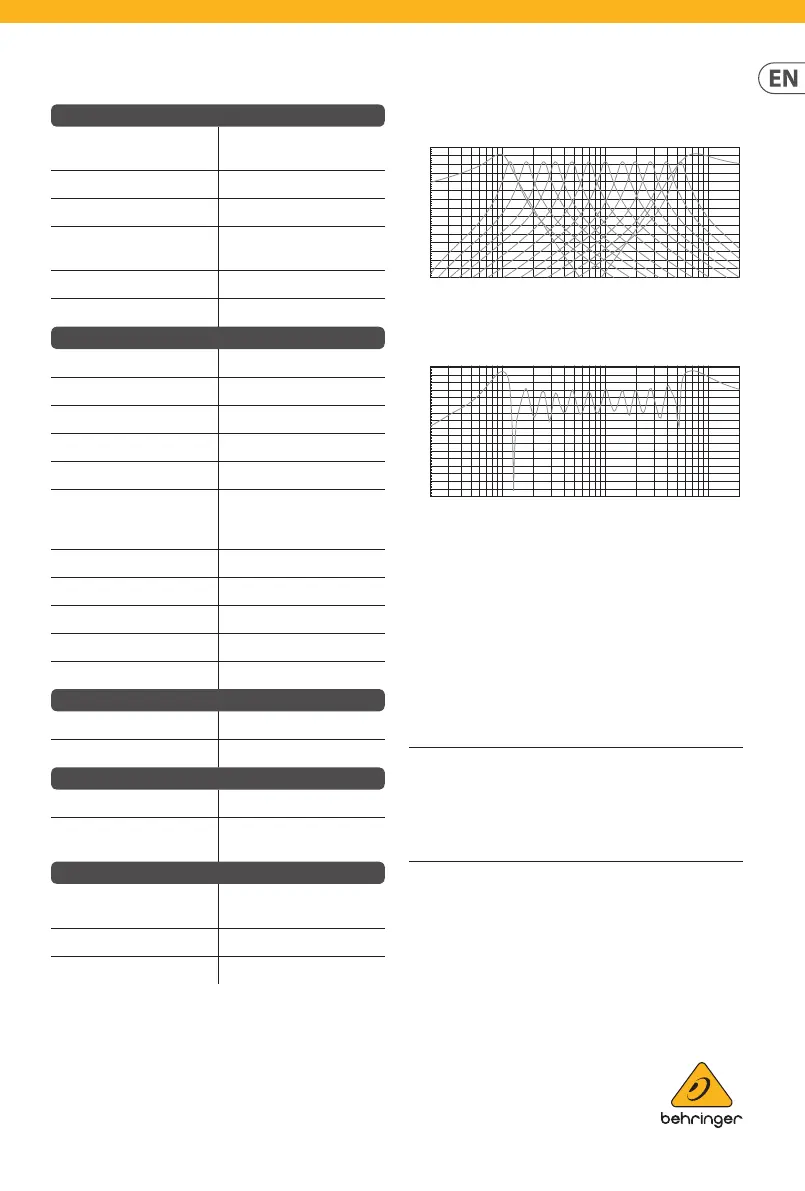

Speci cations
Signal Connections
Input 2 x 3.5 mm parallel jacks,
AC coupled
Impedance 30 kΩ , unbalanced
Maximum input level +20 dBu @ 1 kHz
Output 2 x 3.5 mm parallel jacks,
AC coupled
Impedance < 600 Ω, unbalanced
Maximum output level +10 dBu
Controls
Low pass  lter 1 x rotary knob
Peak frequency 100 Hz
Slope 24 dB/oct.
Filter bank 12 x rotary knob
Type Bandpass  lter
Frequency bands 125, 175, 250, 350, 500,
700, 1000, 1400, 2000,
2800, 4000, 5600 Hz
Level reduction -3 to -80 dB, adjustable
Q7
High pass  lter 1 x rotary knob
Peak frequency 7.5 kHz
Slope 24 dB/oct.
System
Distortion < 0.1% @ 1 kHz, 0 dBu
Noise < -80 dBu, 22 Hz to 22 kHz
Power
Power supply Eurorack
Current draw 60 mA (+12 V),
70 mA (-12 V)
Physical
Dimensions (H x W x D) 42 x 142 x 129 mm
(1.7 x 5.6 x 5.1")
Rack units 28 HP
Weight 0.26 kg (0.57 lbs)
Equalization Graphs
Equalization curves measured with each  lter knob set
to maximum, one at a time:
Equalization curve measured with all  lters knobs set
to maximum:
LEGAL DISCLAIMER
Music Tribe accepts no liability for any loss which may be su ered by any
person who relies either wholly or in part upon any description, photograph,
or statement contained herein. Technical speci cations, appearances and
other information are subject to change without notice. All trademarks are the
property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake,
Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Auratone
and Coolaudio are trademarks or registered trademarks of Music Tribe
Global Brands Ltd. © Music Tribe Global Brands Ltd. 2019 All rights reserved.
LIMITED WARRANTY
For the applicable warranty terms and conditions and additional information
regarding Music Tribe’s Limited Warranty, please see complete details online
at musictribe.com/warranty.
Zhongshan Eurotec Electronics Limited
No. 10 Wanmei Road, South China Modern Chinese Medicine Park,
Nanlang Town, 528451, Zhongshan City, Guangdong Province, China
20
-70
-65
-60
-55
-50
-45
-40
-35
-30
-25
-20
-15
-10
+0
+5
50 100 200 500
Hz
d
B
u
1k 2k 5k 10k 20k
-5
20
-40
-37.5
-35
-32.5
-30
-27.5
-25
-22.5
-20
-17.5
-15
-12.5
-10
-7.5
-5
-2.5
+0
+2.5
50 100 200 500
Hz
d
B
u
1k 2k 5k 10k 20k
