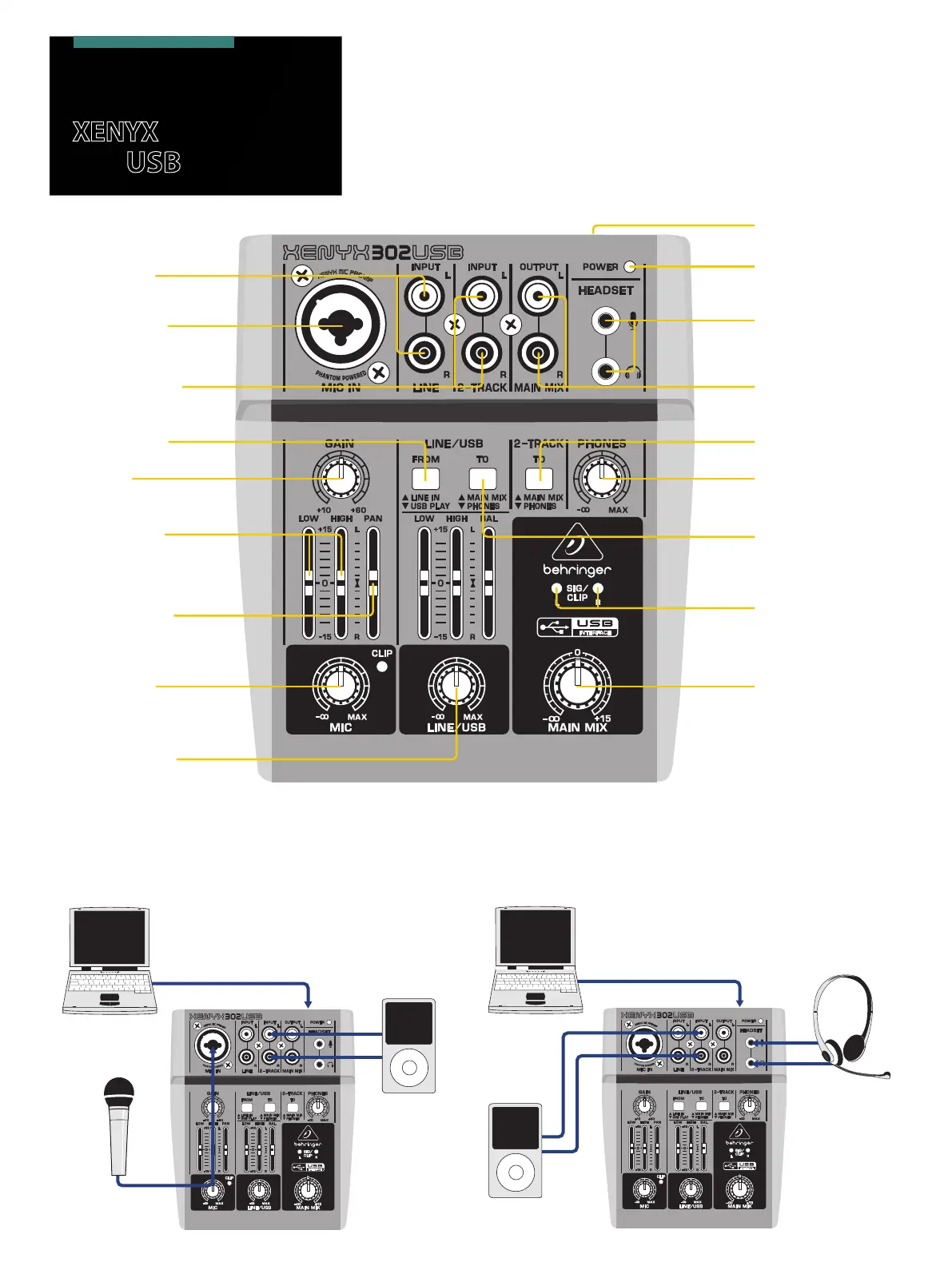

Front Panel
Combination
balanced XLR &
¼" TRS MIC IN jack
Stereo LINE
Inputs (RCA)
FROM Line In/
USB Play source
selector switch
Stereo 2-TRACK
Inputs (RCA) acquit
MIC IN
GAIN control
LOW and HIGH
EQ faders
PAN faders adjust
signal placement
in stereo image
MIC channel
volume control
LINE/USB channel
volume control
MAIN MIX
volume control
Output metering
TO Line/USB switch
assigns signal to
Main Mix or Phones
PHONES volume
control
TO 2-Track switch
assigns signal to
Main Mix or Phones
Stereo MAIN MIX
Outputs (RCA)
HEADSET connections
(MIC/PHONES)
Power LED
USB socket (rear panel)
XENYX 302USB recording setup XENYX 302USB podcasting setup
XM8500
Laptop
Mp3 player
Laptop
Mp3 player
Headset
(not included)
302

Behringer XENYX 302USB Specifications

Power

mains voltage	100-240 V, ~ 50/60 Hz
power consumption	0.9 W
power connector	USB, type A

Audio Specifications

frequency response (Mic In - Main Out)	18 Hz - 40 kHz +0 dB / -1 dB
frequency response	10 Hz - 75 kHz +0 dB / -3 dB
signal-to-noise ratio	98 dB / 101 dB A-weighted

Input/Output Impedance and Levels

mic input impedance	20 kΩ
mic max input level	+20 dBu
main output impedance	470 Ω

Weight and Dimensions

dimensions	1.8 x 4.5 x 5.4 in, 46 x 114 x 136 mm
weight	0.83 lbs / 0.38 kg
