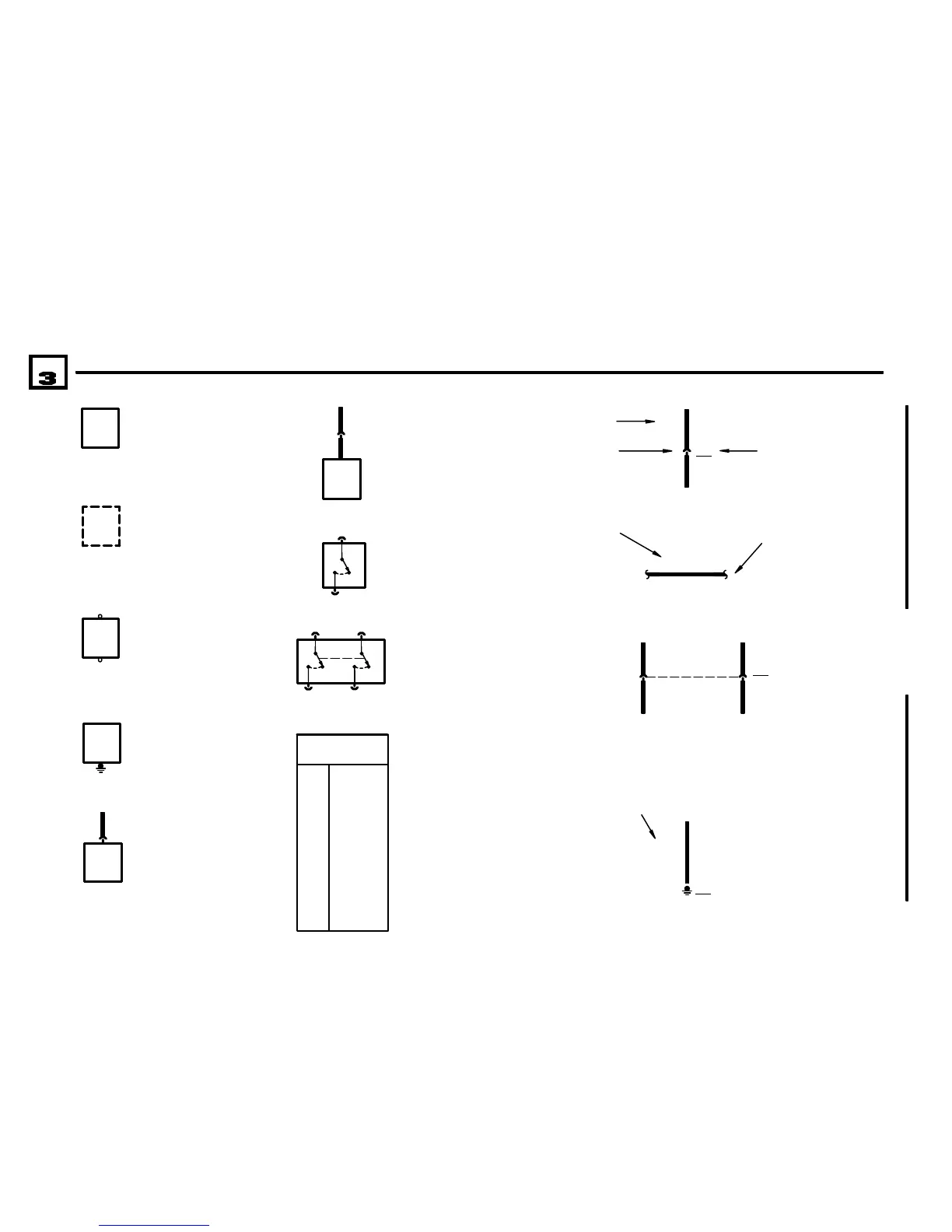

A WAVY LINE
MEANS WIRE IS
CONTINUED
ENTIRE COM-
PONENT SHOWN
COMPONENT WITH
SCREW TERMI-
NALS
CONNECTOR
ATTACHED TO
COMPONENT
PART OF COM-
PONENT SHOWN
.75 BR
.5 BR
X270
4
.5 BR
.5 BR
3
.5 BR
.5 BR
X270
4
.5 BR
.75 GN/WS
CONNECTOR
ATTACHED TO
COMPONENT LEAD
(PIGTAIL)
COMPONENT CASE
ATTACHED
DIRECTLY TO
METAL PART OF
CAR (GROUNDED)
WIRE INSULATION
IS ONE COLOR
PIN NUMBER
WIRE INSULATION
IS ONE COLOR
WITH ANOTHER
COLOR STRIPE
(GREEN WITH
WHITE)
WIRE ATTACHED
TO METAL PART
OF CAR
(GROUNDED)
GROUND NUMBERED FOR
REFERENCE ON COM-
PONENT LOCATION CHART
WIRE SIZE IN MM
SQUARED
BL BLUE
WIRE COLOR
BR BROWN
GE YELLOW
GN GREEN
GR GRAY
OR ORANGE
RS PINK
RT RED
SW BLACK
VI VIOLET
WS WHITE
ONE POLE, TWO
POSITION SWITCH
SWITCHES THAT
MOVE TOGETHER
DASHED LINE SHOWS A
MECHANICAL CONNECTION
BETWEEN SWITCHES
TR TRANSPARENT
CONNECTOR REF-
ERENCE NUMBER
FOR COMPONENT
LOCATION CHART
TWO CONNEC-
TIONS (PINS) IN
THE SAME
CONNECTOR
DASHED LINE INDI-
CATES TERMINALS
OF THE SAME
CONNECTOR
12
X165
12 12
SYMBOLS
