E46 Models

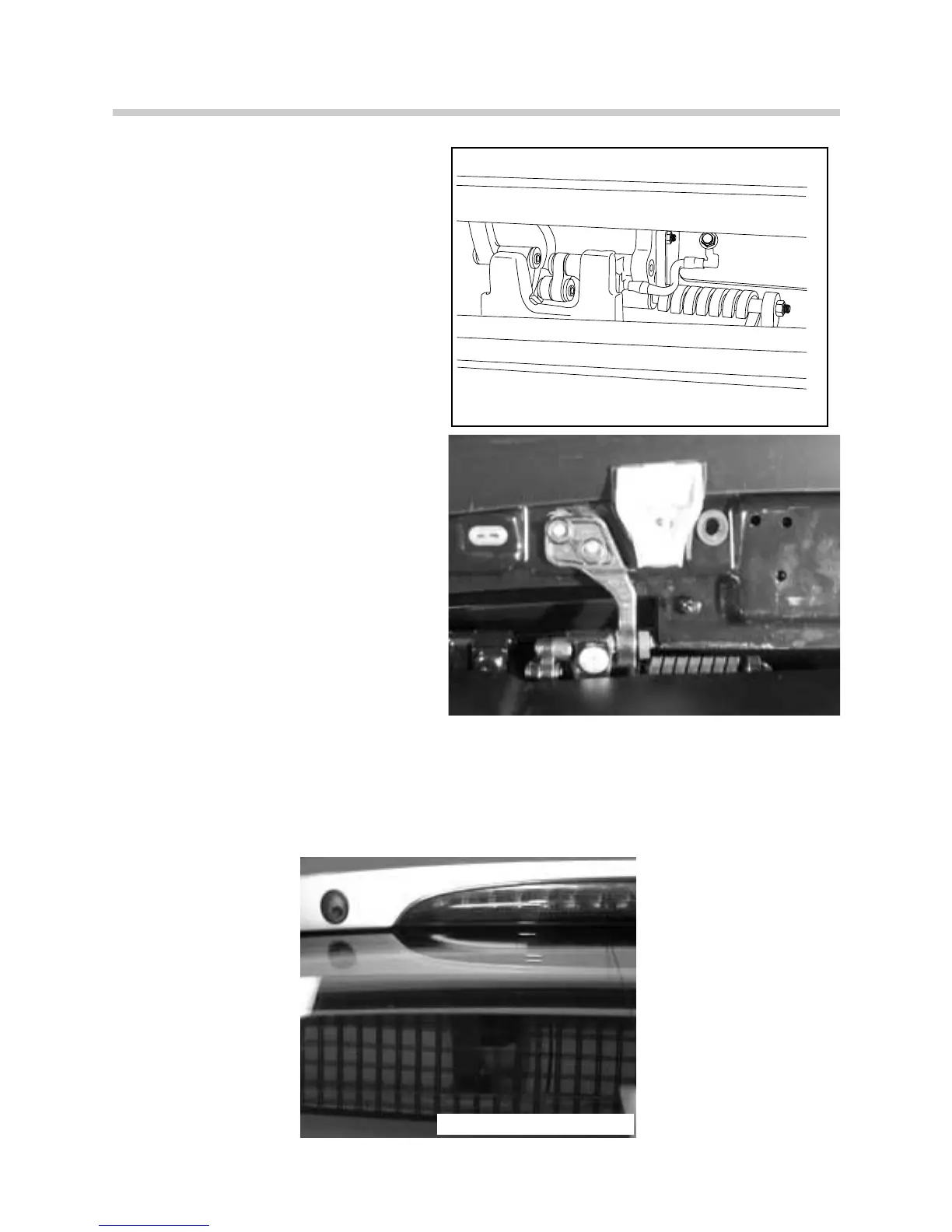

Rear Glass Hinge
The hinges are a new design (torsional
coil spring) that are compact in shape for
space saving reasons.
The rear window is adjusted through the
slotted mounted bolts. The gap of the
window should be uniform on all sides.
The height of the rear window is adjust-
ed using shims on the hinge mounts.
Refer to the repair manual for complete
adjustment procedures and sequence.
Rear Washer Nozzle
The rear window washer spray nozzle, as well as the third brake light, is mounted at the top
left side integrated into the spoiler.
63E46SPTWGNTAILLIGHT0000
41460001
