Information on the solar pump station | 3
6 720 811 270 (2015/04)AGS10-2, AGS10E-2, AGS20-2, AGS50-2
Instructing the user
▶ Instruct users as to how the appliance functions, as well as how to
operate the system as a whole.
▶ Explain that conversions and maintenance must only be carried out by
an authorised contractor.
▶ Point out the need for inspections and maintenance for safe and
environmentally friendly operation.
▶ Hand these installation and maintenance instructions to the user.
Point out that these instructions must be kept and passed on to the
next owner/user.
2 Information on the solar pump station
2.1 Product description
If you wish to open the solar pump station:
▶ Pull the cover (insulation part) forwards.
Fig. 1

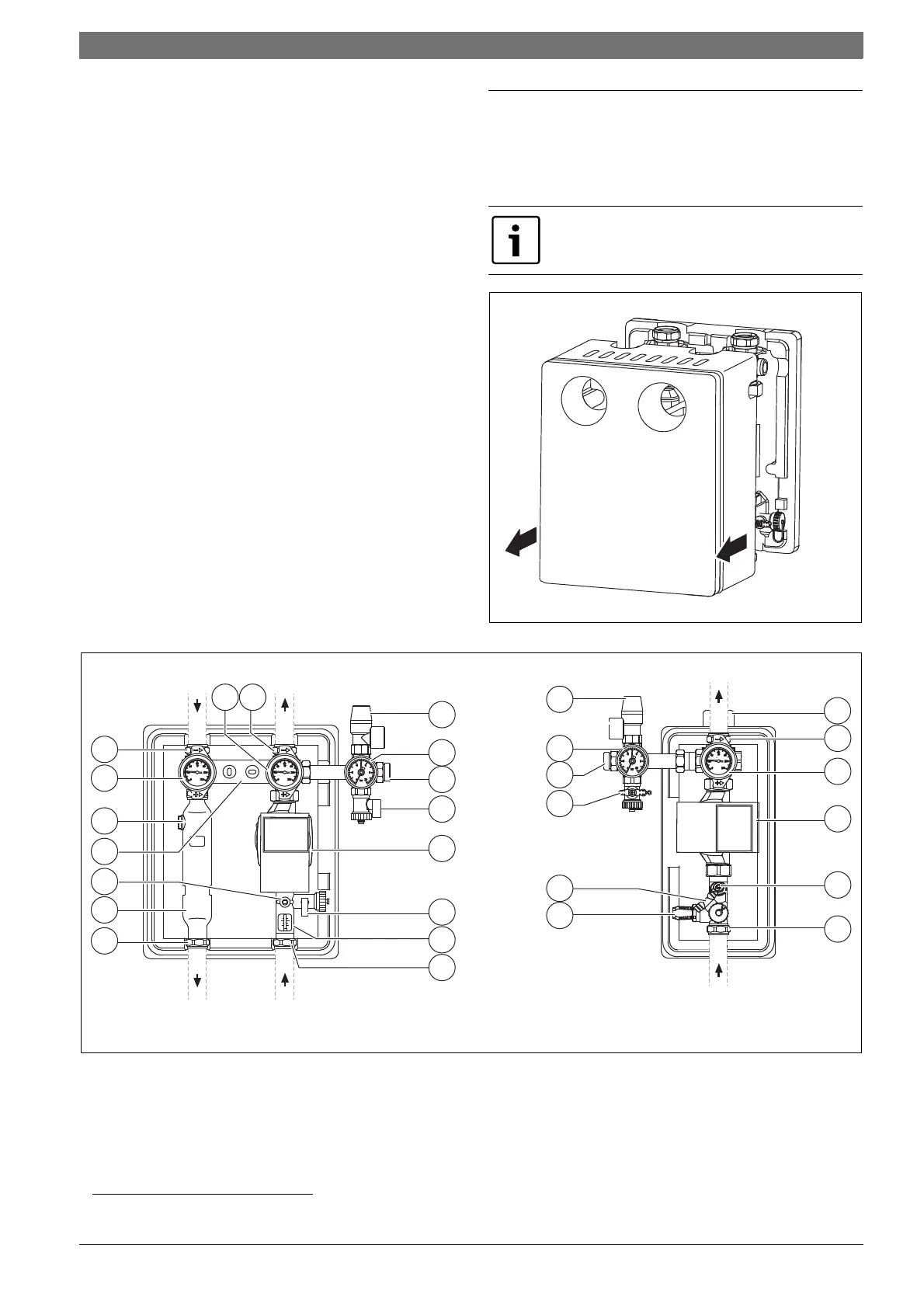

Fig. 2 Single and twin-line solar pump stations without front insulation parts and without integral controllers and modules
[1] Ball valve with thermometer (red = flow
1)
, blue = return) and
integrated check valve
(position 0° = normal running, 45° = check valve bypassed)
[2] Compression fitting
[3] Pressure relief valve
[4] Pressure gauge
[5] Connection for expansion vessel
[6] Drain & fill valve (DFV)
[7] High-efficiency pump (with power cable and sensor cable)
[8] Flow limiter, type A
[9] Flow limiter, type B
[10] Air separator
1)
[11] Control/shut-off valve
[12] Holder for wall mounting
[13] Ventilation
1)
The illustrations in this manual show the twin-line solar
pump station with external solar controller.
11
2
10
1
2
3
4
5
6
8
2
1
2
13
12
3
4
5
6
9
6
2
1
2
11
6720801165.06-2.ST
12
7
6
7
8
AGS10-2, AGS20-2, AGS50-2 AGS10E-2
1) Not for single-line solar pump stations
