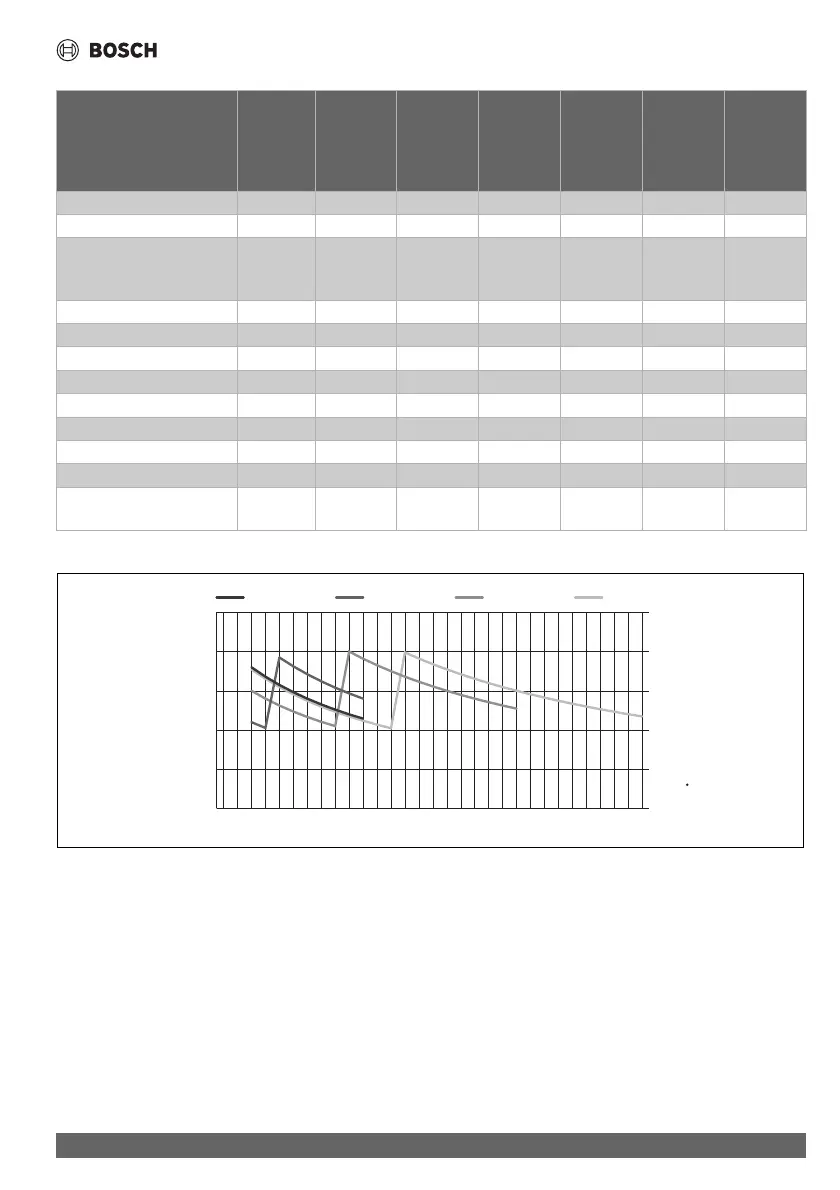

Bosch TR4000 User Manual

Technical data
19
TR4000 | TR4000R – 6720876021 (2022/04)
The temperature of the water leaving the tap is dependent on
the flow of water:
Flow limit at [l/min] 2 2 3 4 3 4
Weight [kg] 1,1 1,1 1,1 1,1 1,1 1,1
Application area in water:
specific electric resistance
at 15 °C
[Ωcm] ≥ 1 300 ≥ 1 300 ≥ 1 300 ≥ 1 300 ≥ 1 300 ≥ 1 300
Rated pressure [MPa (bar)] 1,0 (10,0) 1,0 (10,0) 1,0 (10,0) 1,0 (10,0) 1,0 (10,0) 1,0 (10,0)
Plug-in ready P – – – – –
Fixed connection –PPPPP
Energy efficiency class A A A A A A
Load profile XXS XXS XXS XXS XXS XXS
Annual energy consumption [kWh] 475 477 474 475 474 475
Daily energy consumption [kWh] 2,180 2,190 2,170 2,180 2,170 2,180
Sound power level [dB] 15 15 15 15 15 15
Hot water heating energy
efficiency
[%]393939393939
Type TR4000 4
ET
TR4000R 4
ET
Undersink
TR4000 5
ET
Undersink
TR4000 6
ET
Undersink
TR4000 8
ET
Undersink
TR4000 6
EB
Over-sink
TR4000 8
EB
Over-sink
0
10
20
30
40
50
7,2 kW6,0 kW4,5 kW3,6 kW
1,2 1,4 1,6 1,8 2,0 2,2 2,4 2,6 2,8 3,0 3,2 3,4 3,6 3,8 4,0 4,2
ΔT
[°C]
Q
[l/min]

Bosch TR4000 Specifications

General

Type	Tankless (instantaneous)
Fuel type	Electric
Boiler system	-
Ignition type	Electronic
Product color	White
Heater location	Indoor
Placement supported	Vertical
Solar batteries support	No
International Protection (IP) code	IP24D
Noise level	15 dB
Maximum power	4500 W
Maximum operating pressure	10 bar
Domestic Hot Water (DHW) flow	- l/min
AC input voltage	230 V
Energy efficiency scale	A+ to F
Annual energy consumption	477 kWh

Weight and Dimensions

Depth	88 mm
Width	140 mm
Height	185 mm
Weight	1170 g
