Bose 301 Series V User Manual

4
DISASSEMBLY/ASSEMBLY PROCEDURES
9. Terminal Block Connector Removal
9.1 Perform procedures 1, 3.2 and lift the
woofer out of the cabinet, but do not cut the
wires.
8. Rear Tweeter Replacement
8.1 Strip the wires and connect the red wire
to the positive (+) terminal and the black
wire to the negative (-) terminal. Dress or
twist the wires to prevent buzzes.
8.2 Place the tweeter (3) into the cabinet
and secure it using the tweeter bracket (2)
and screw (1).
8.3 Perform procedures 4.2 and 2.
9.2 Unclip the terminal block connector
(4) from the inside of the cabinet and push
it out through the rear panel. Cut the wires
as close to the terminals as possible.
10.1 Terminal Block Connector
Replacement
10.1 Strip the wires and connect the red
wire to the positive (+) terminal and the
black wire to the negative (-) terminal.
Dress or twist the wires to prevent buzzes.
10.2 Secure the terminal block connector
(4) to the cabinet.
10.3 Perform procedure 4.2 and 2.
Audio Signal
Generator
+
_
Power Amplifier
Input Output
+
_
+
_
+
Speaker
_

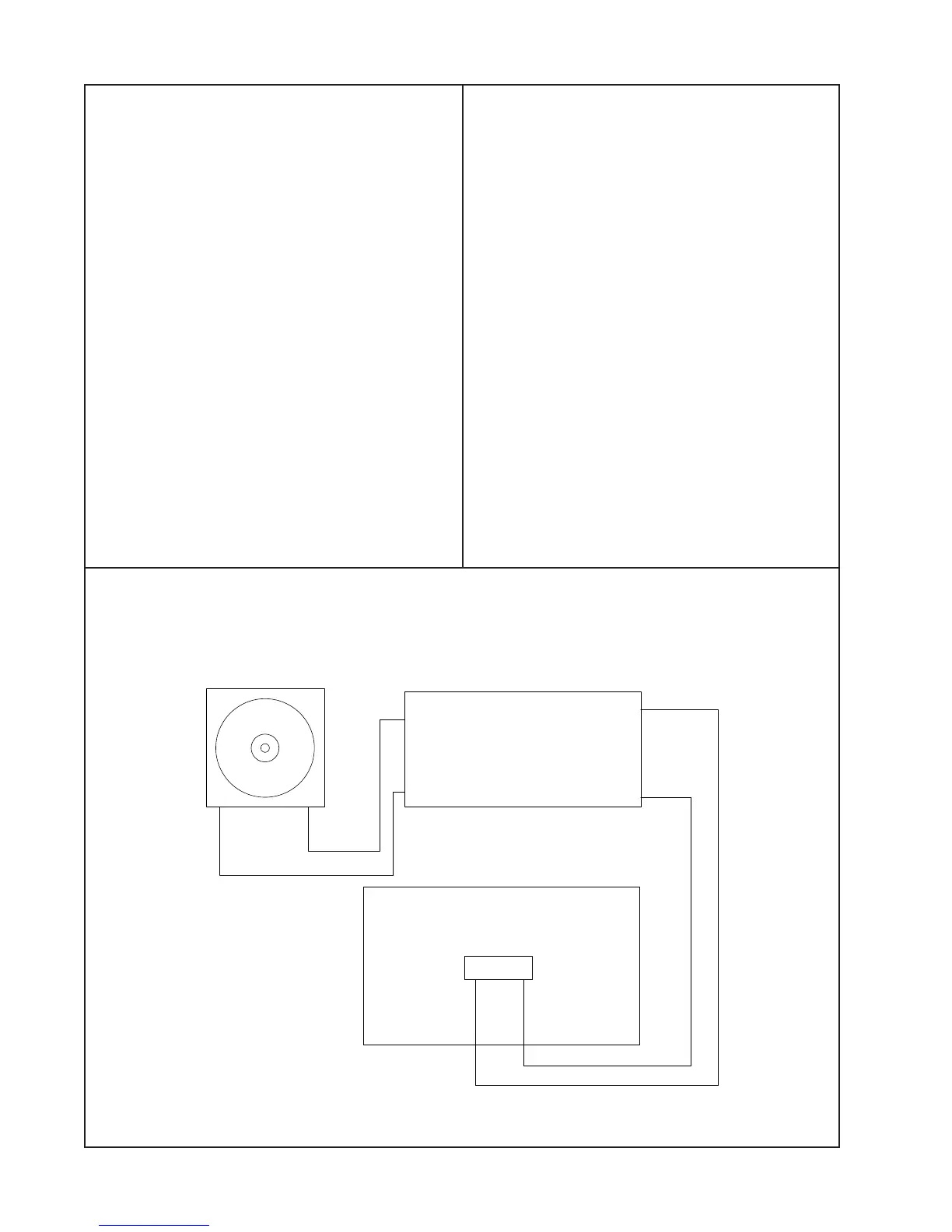

Figure 2. Test Equipment Set Up
