Bose ControlCenter CV41 User Manual

ControlCenter CV41 4-to-1 Converter
Use the ControlCenter CV41 4-to-1 converter to create a single home run connection back to a PowerShare PS602 or PS604 amplifier when multiple
CC-1 zone controllers are distributed throughout an installation. Connect each zone controller to the CV41 converter using CAT 5 cables with RJ-45
connectors, then run a single CAT 5 cable from the CV41 converter to the amplifier.
For more information, see the ControlCenter Zone Controllers Installation and Operation Guide.
CAT 5 cable
609 m (2000 ft) max
CAT 5 cable
7.6 m (25 ft) max
Adaptable Power Amplier
LIMIT
SIGNAL
12
PowerShare
PS602
POWER
CAT 5 cable
609 m (2000 ft) max
CAT 5 cable
7.6 m (25 ft) max
Adaptable Power Amplifier
LIMIT
SIGNAL
12 34
PowerShare
PS604
POWER
2.5 in
2.0 in
27 mm
1.1 in
©2016 Bose Corporation, The Mountain,
Framingham, MA 01701-9168 USA
AM771894 Rev. 00
Connect up to two CC-1 zone controllers to a PS602 amplifier, as shown below. If
the two CC-1 zone controllers are ganged together first, then the CV41 converter
is not required.
Connect up to four CC-1 zone controllers to a PS604 amplifier, as shown below. You
can also gang any combination of CC-1 zone controllers together first, then use the
CV41 converter to create a single homerun to the amplifier. All inputs on the CV41
converter are identical, so any input combination is acceptable.

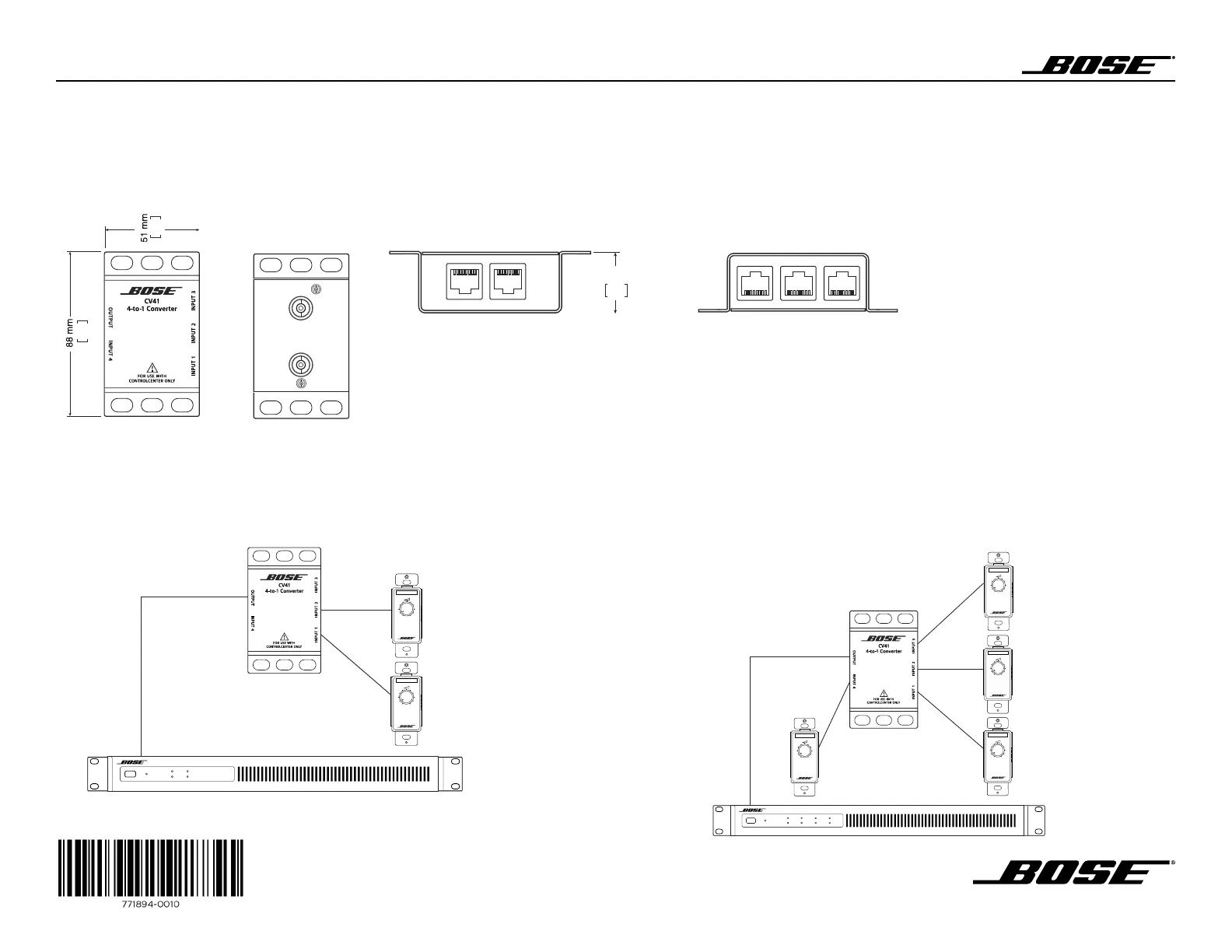

CV41 Converter Diagram
Connecting the CV41 Converter
Top View Bottom View
Left Side View
Right Side View
