Stereo High Pass + Bass Preset Bank:
Presets designed for stereo high pass operation on channels 1 and 2, and mono
low pass operation on channels 3 and 4.
Stereo Mid-High with Mono Bass
Example:

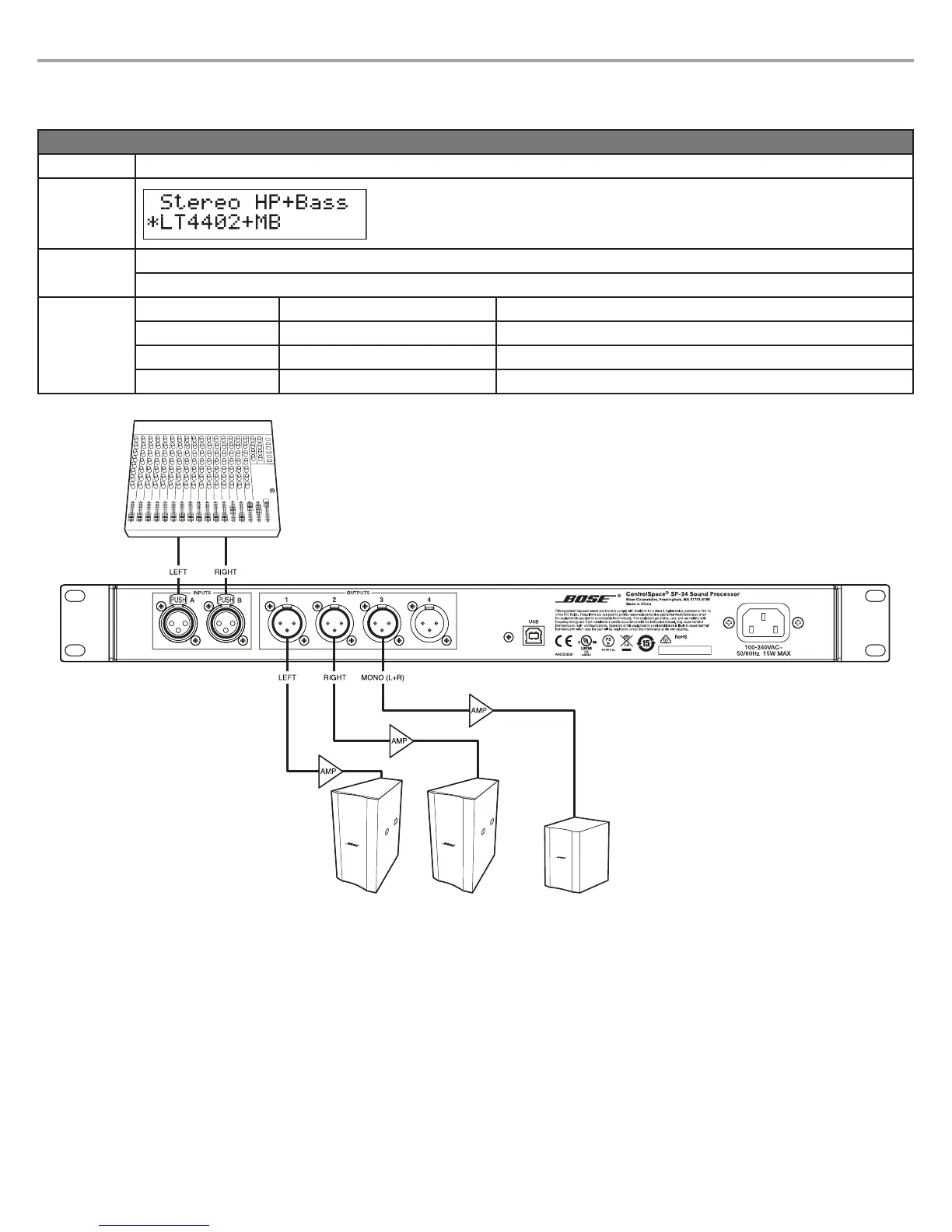

Stereo input with stereo output to two LT 4402 WR loudspeakers and mono output to one MB24 WR.
Preset
Inputs:
A: Left from mixer
B: Right from mixer
Routing:
(default)
Channel 1: LT 4402 WR Left High Pass
Channel 2: LT 4402 WR Right High Pass
Channel 3: MB24 WR Mono (Left + Right) Low Pass
Channel 4: MB24 WR Mono (Left + Right) Low Pass (not used in setup below)
