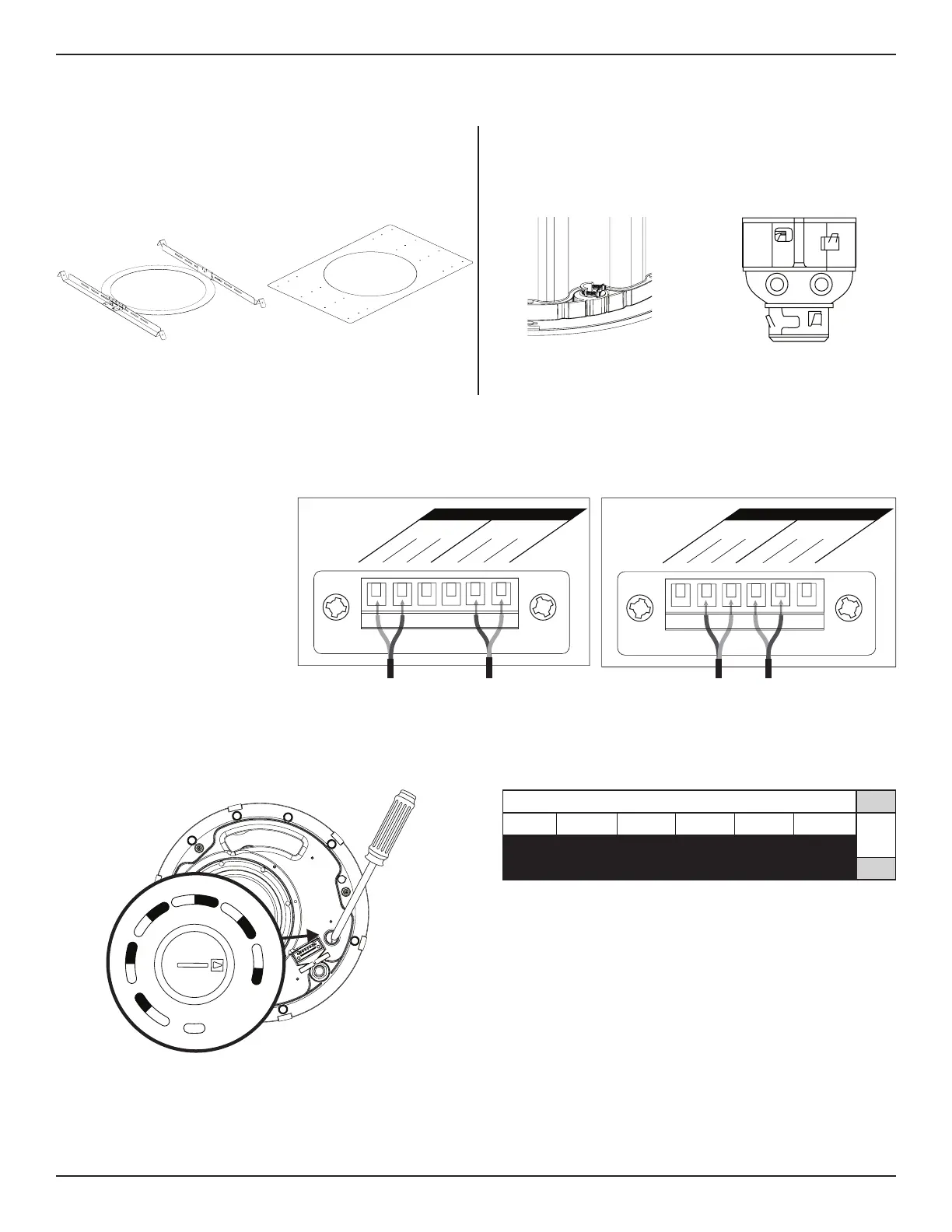

DesignMax DM8C • Installation Guide
Setup
Installation Options
Installation Options and Accessories
q Adjustable Tile Bridge (included)
w Rough-in Pan (optional)
Conduit Fitting
If using a flexible metal conduit, use with a ⅜-inch conduit fitting
or a ⅜-inch dual (duplex) connector.
Note: Conduit fittings are not provided.
q
w
⅜-inch single in ⅜-inch duplex in/loop
Wiring the Loudspeaker
Wire Gauge
The DesignMax DM8C loudspeaker is designed to work with 18 AWG (0.8 mm
2
) to 14 AWG (2.5 mm
2
) size wire only.
Connection Diagrams
Expose six millimeters (¼ inch) of
bare wire to attach to the terminals.
70V/100V 8Ω
Loudspeaker Settings
** NC: No Connection (do not use)* Factory default
Transformer Tap Setting
Set tap by turning. Use a flat head screwdriver.
8
Ω
2
.
5
W
5
W
5
W
1
0
W
1
0
W
2
0
W
2
0
W
4
0
W
4
0
W
8
0
W
8
0
W
N
C
COM
8Ω
70/100V
COM
8Ω
70/100V
OUT
IN
+-++-+
COM
8Ω
70/100V
COM
8Ω
70/100V
OUT
IN
+-++-+
70V
2.5W 5W 10W 20W 40W 80W*
8Ω
5W 10W 20W 40W 80W NC**
100V
