Bose T1 ToneMatch User Manual

11
SYSTEM SETUP
SvenskaItalianoFrançaisEspañolDeutschDanskEnglish Nederlands
Connecting the T1 to an L1
TM
model II power stand
1. Make sure the power stand Power switch is OFF, the T1 power switch is OFF, and the T1 Master volume
control is set to 0.
2. Plug one end of the ToneMatch
TM
cable into the ToneMatch
TM
port ( ) on the T1. Plug the other end of the
Ton e M a tc h
TM
cable into the Ton eM at c h
TM
port on the power stand.
3. Turn on the T1 audio engine and then turn on the L1 model II power stand.
4. Connect your instruments and adjust levels. Refer to “Optimizing input gain and output volume” on page 16.

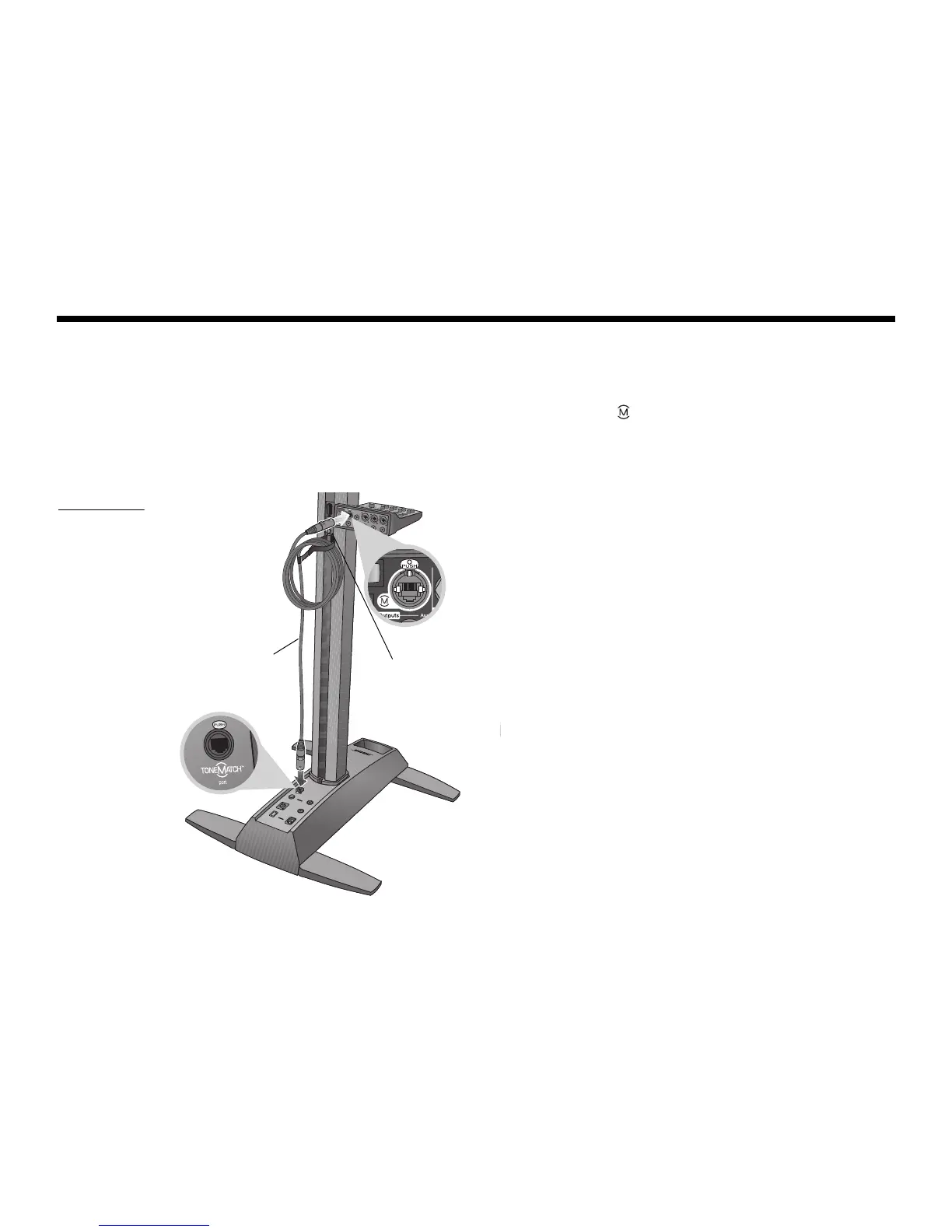

Figure 10
L1
TM
model II
connections to
a T1
Power / Fault
ToneMatch
cable
Hook-and-loop strap
hanging excess cable
on the carriage

Bose T1 ToneMatch Specifications

General

Sample rate	48 kHz
Channels quantity	- channels
Digital sound processing	- bit
DJ mixer	-
Backlight	Yes
Backlight color	Blue
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	208.9 mm
Width	165.5 mm
Height	67.6 mm
Weight	970 g
