Note: The T8S cannot be connected digitally and cannot be powered by the L1 Model 1S/II.
Connecting the T4S/T8S via Analog Connection
1. Make sure the device you are connecting to and the T4S/T8S are powered off and the T4S/T8S Master volume
control is set to minimum.
2. Using XLR balanced cables, connect one or two devices to the XLR Stereo Outputs of your T8S (see Figure
10).
Note: The T4S/T8S can be connected to a device via the Analog R Output port using a 1/4″ TRS cable (sold
separately). Plug the other end of the TRS cable into the Analog Input port of the device. To connect the
T4S/T8S to two devices, connect a second device to the Analog L Output port on the T4S/T8S using a 1/4″
TRS cable.
3. Connect a ToneMatch® power supply to the Power port of the T4S/T8S and plug it into a live AC outlet. Refer
to “Connecting the ToneMatch® Power Supply” on page 12.
4. Turn on the T4S/T8S mixer and then turn on the device.
5. Connect your instruments and adjust levels. Refer to the complete owner’s guide at www.Bose.com for
complete operation information.

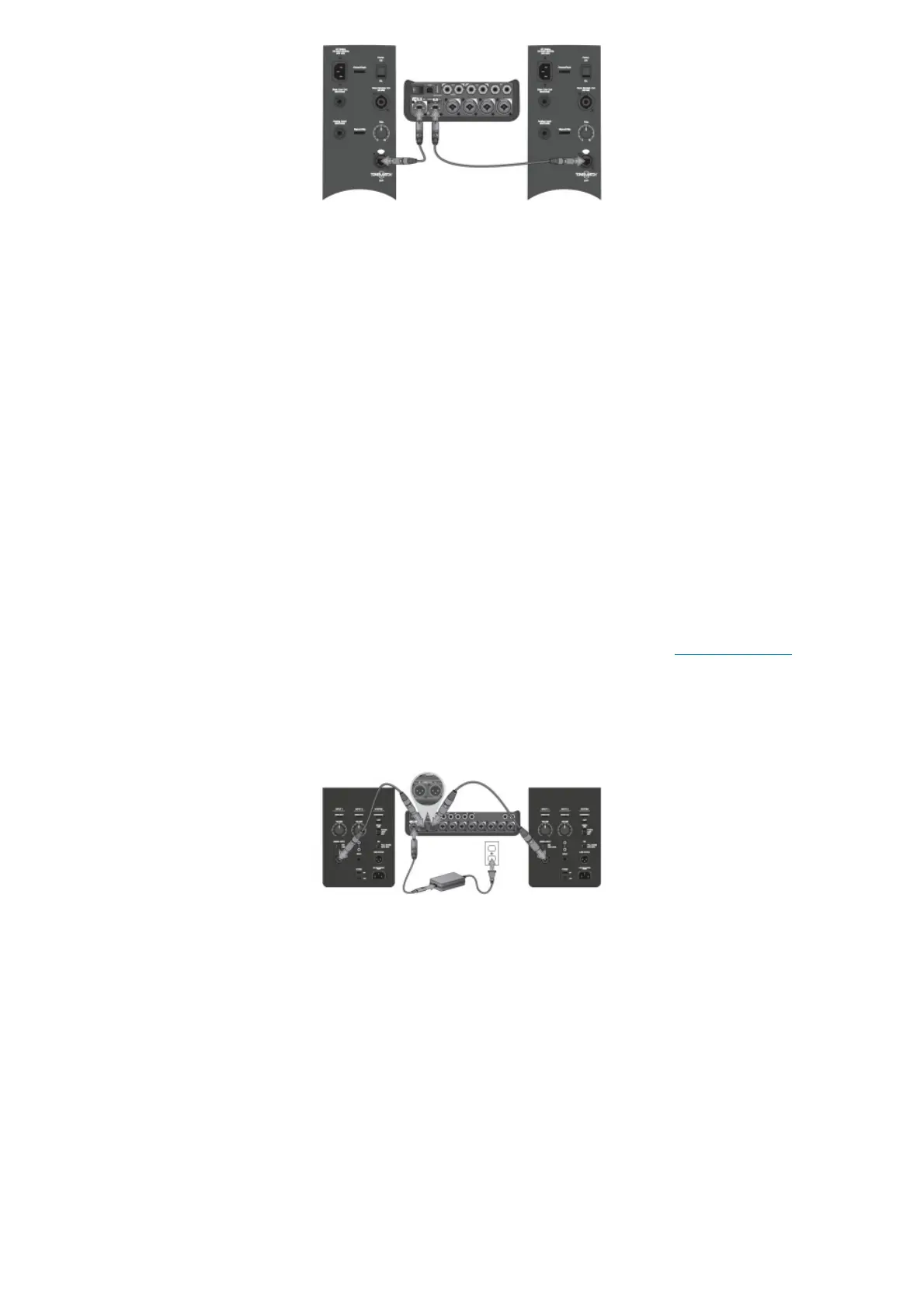

Figure 10. Two F1 systems connected to a T8S via analog connection
Connecting the ToneMatch® Power Supply
The ToneMatch power supply provides power for the T4S/T8S mixer.
1. Plug the power supply cable into the T4S/T8S Power port.
2. Plug one end of the AC power cord into the power supply.
3. Plug the other end of the power cord into a live AC power outlet.
4. Switch the T4S/T8S power switch to the ON position.
Note: Power supply included with T8S is required for operation of the T8S. Power supply is not included with the
T4S and is not required for operation of the T4S.
Figure 11. Connecting T4S to power supply
