Page 20
Hydraulics Parts List
Item Qty. Description Part #
1 1 Pump Assembly (M-268-0112) 120G / 12V / Dual Relief 30915-12V
2 1 Lead Wire Assembly, #6 Guage 29049
3 1 Clamp, Hose (M258) 29663
4 1 Diode Assembly, Up Solenoid 73906A
5 1 Solenoid, 4-Post - Prestolite 28308
6 1 Motor, Pump - 12 Volt - Low RPM 29690
7 1 Valve Assembly, “Dual Relief” (complete) 31120K
8 1 Cartridge (only), “Dual Relief” Valve - (shown below) 31121
9 2 Coil (only) - (shown below) 31122
10 1 Valve Assembly, “Down” (complete) 31348K
11 1 Cartridge (only), “Down” Valve - (shown below) 26078
12 3 Screw, 1/4-20 x 2-1/4”, Allen Head 26080
13 1 Hand Pump (Backup) with O-Rings (Item 14) 26074
14 4 O-Ring (only), Hand Pump Mounting 17351
15 1 Clamp, Reservoir - H-48 (M259) 17069
16 1 Reservoir, Hydraulic Fluid 30160
17 1 Cap, Reservoir Filler - Screw On 30167
18 1
Fitting, 90° - 1/8” NPT x 1/8” Barb - Plastic 87563
19 1 Connector, Plastic “Y”, 1/8” O.D. 18877
20 1 Hose, Thermal Plastic - Black, 1/8” I.D.
23742R* (6”)
21 1 Handle with Grip 17206A
22 1 Fitting, Male 7-16-20 SAE O-Ring to Male 7/16-20 JIC 37° 24504
23 1 Elbow, 7/16-20 JIC 37 Female Swivel (1) - 7/16-20 JIC 37° Male (2) 26579
24 1 Hose Assembly, 1/8” (Opposite-Pump-Side) 16004A-086
25 1 Hose Assembly, 1/8” (Pump-Side) 16004A-046
26 2 Elbow, 90°, 7/16-20 SAE O-Ring Male - 7/16-20 JIC 37° Male, Orifice 26667
27 2 Cylinder ✓
C1514.3-9408
28 2 Elbow, 90°, 1/4 NPT Male to 1/4” Barbed 15150
29 1 Hose, Thermal Plastic - Black, 1/8” I.D.
23742R* (68”)
30 1 Hose, Thermal Plastic - Black, 1/8” I.D.
23742R* (30”)
✓ Seal Kits: If repairing a cylinder, order Seal Kit #1500-0500P.
* Raw material items ordered and priced per inch (order specified length).

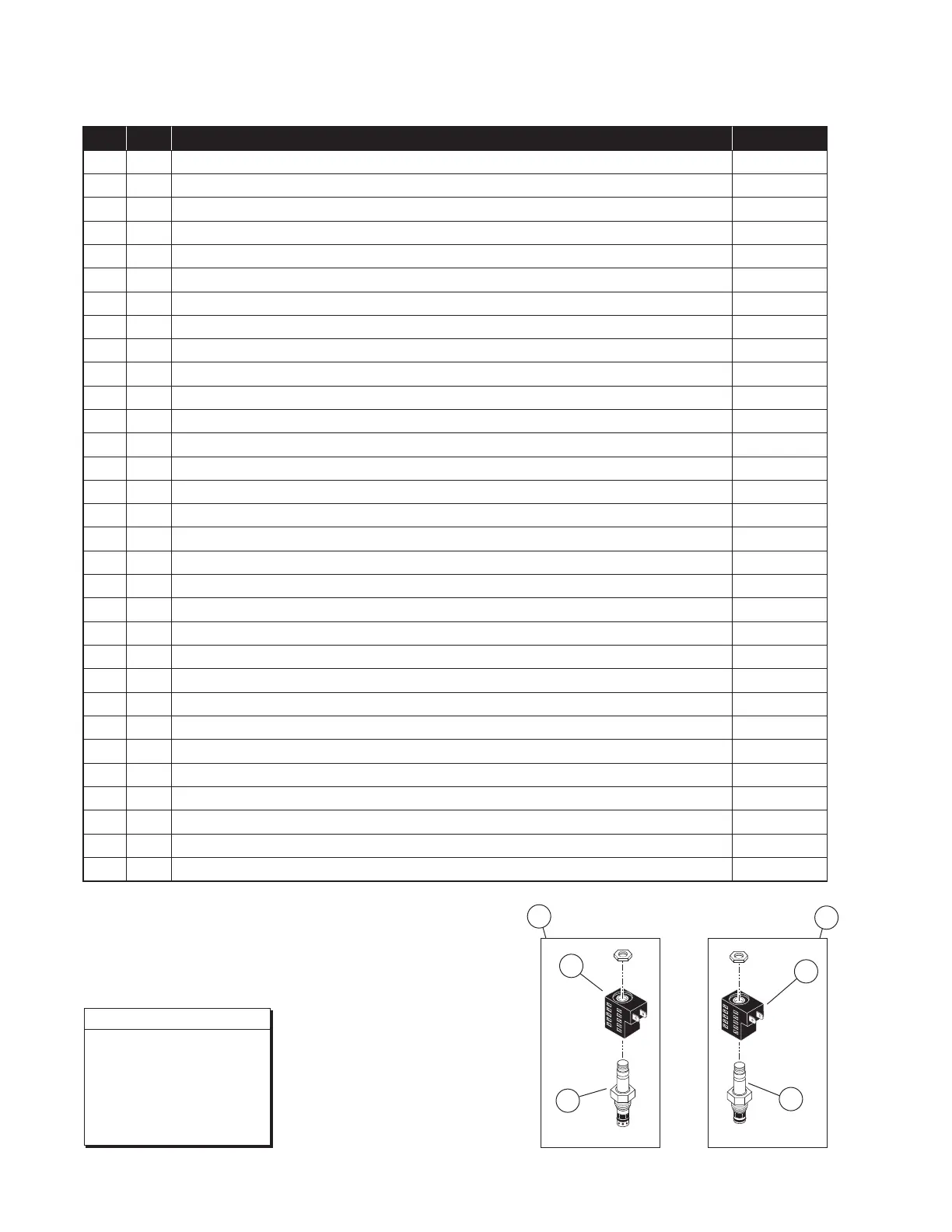

8
Cartridge
#31121
9
Coil
#31122
“Dual Relief” Valve
(complete)
7
11
Cartridge
#26078
9
Coil
#31122
“Down” Valve
(complete)
10
Hydraulic Fluid
When adding or changing
hydraulic fluid, use Braun
32840-QT (Exxon
®
Univis
HVI 26) hydraulic fluid (do
not mix with Dextron III or
other hydraulic fluids).
