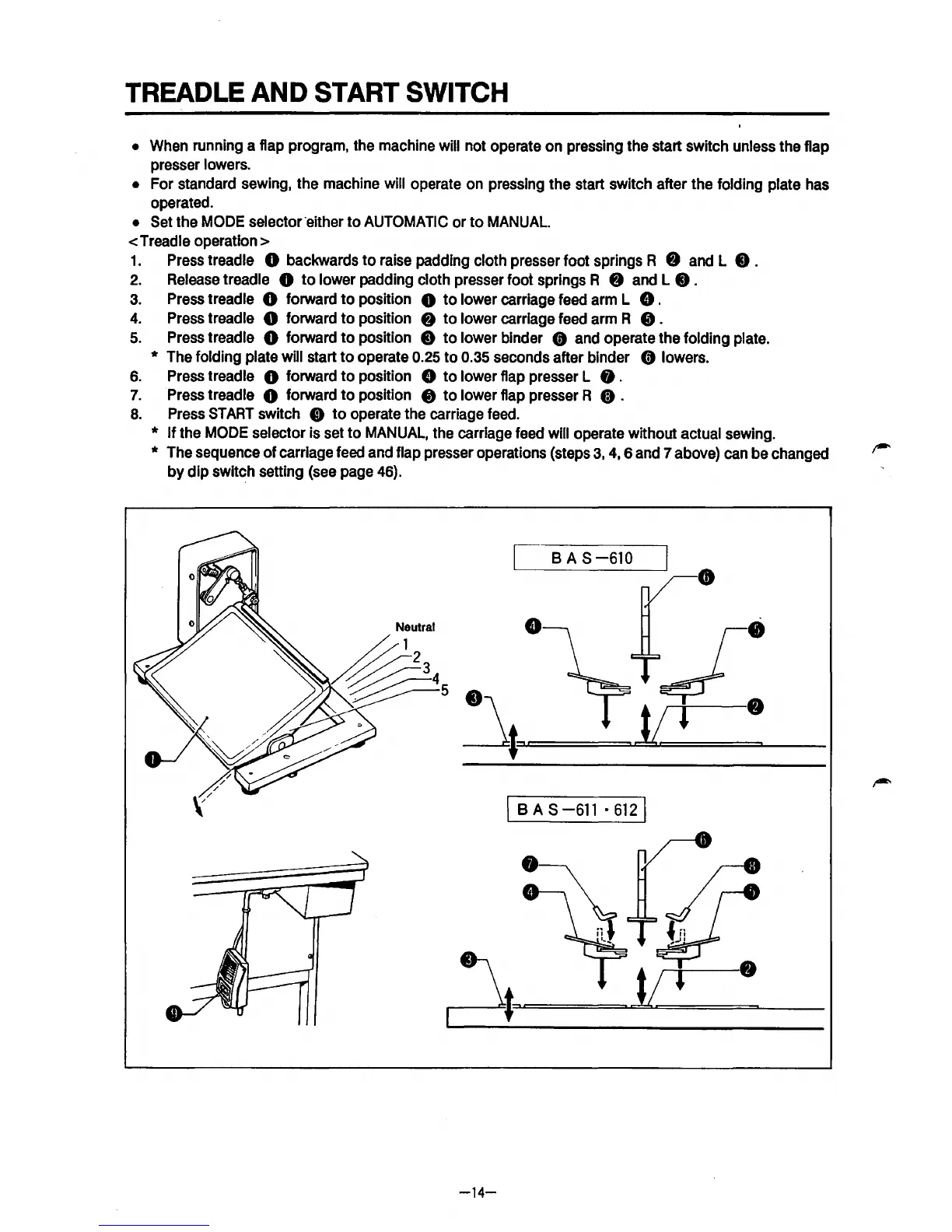

TREADLE
AND
START
SWITCH
• When running a flap program, the machine will not operate on pressing the start switch unless the flap
presser lowers.
• For standard sewing, the machine will operate on pressing the start switch after the folding plate has
operated.
• Set the MODE selector·either
to
AUTOMATIC
or
to
MANUAL.
<Treadle operation>
1.
Press treadle 0 backwards
to
raise padding cloth presser foot springs R 8
and
L 8 .
2.
Release treadle 0
to
lower padding cloth presser foot springs R 8 and L 8 .
3.
Press treadle 0 forward
to
position 0
to
lower carriage feed arm L 8 .
4.
Press treadle 0 forward
to
position 8
to
lower carriage feed arm R e .
5.
Press treadle 0 forward
to
position 8
to
lower binder 8 and operate the folding plate.
* The folding plate will start
to
operate 0.25
to
0.35 seconds after binder 8 lowers.
6.
Press treadle 0 forward
to
position 8
to
lower flap presser L 0 .
7.
Press treadle 0 forward
to
position e
to
lower flap presser R 0 .
8.
Press
START
switch 8
to
operate the carriage feed.
* If the MODE selector is set
to
MANUAL, the carriage feed will operate without actual sewing.
* The sequence
of
carriage feed and flap presser operations (steps
3,
4,
6 and 7 above) can be changed
by
dip
switch setting (see page 46).
C
BA
S-610
I 8 A s -611 •
612
I
-14-
