6. Replacing Parts
6-1-4. Platen Belt and Reduction Belt
Replacing the Platen Belt

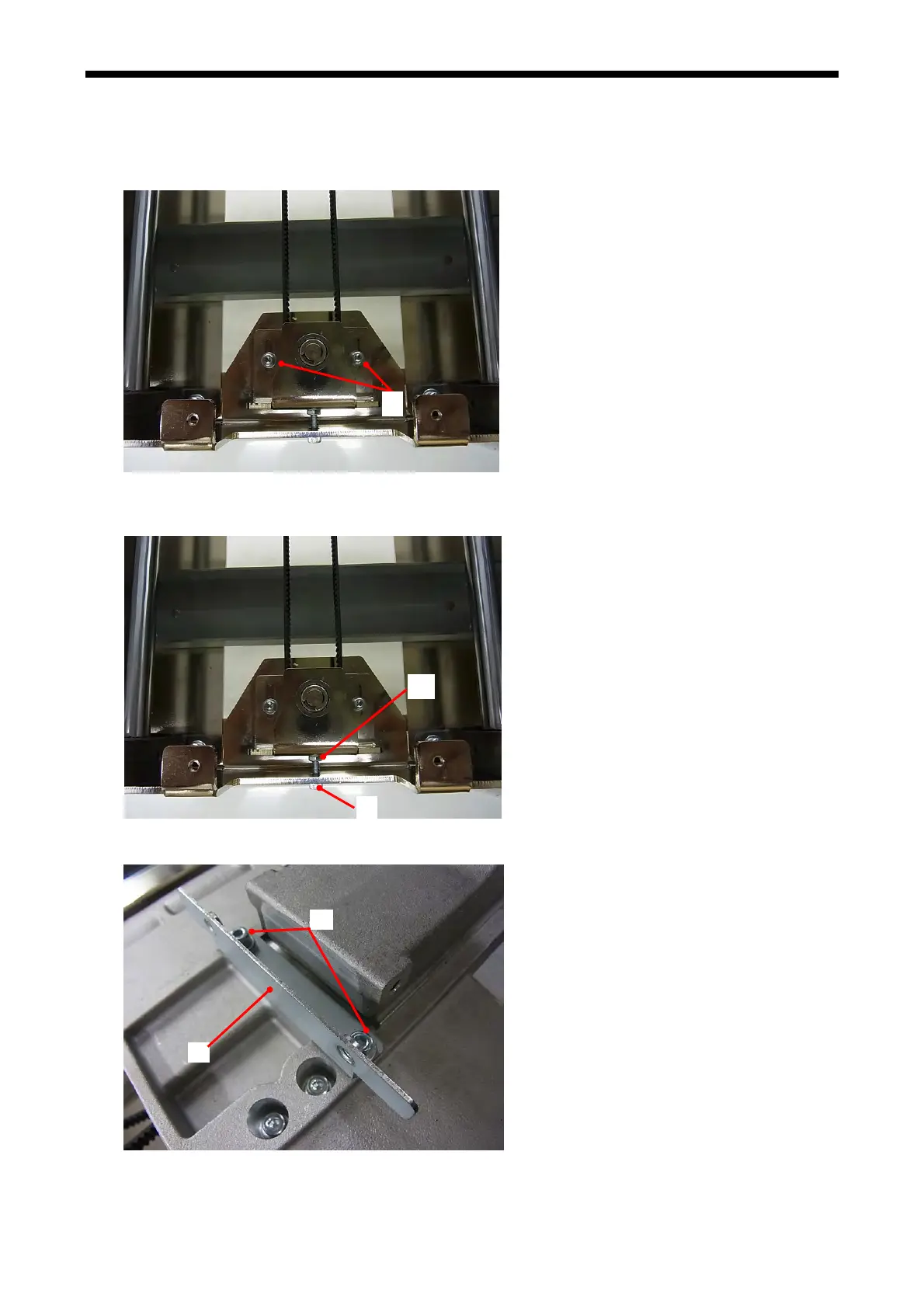

Disassembling
1. Loosen the two Bolts Socket (S/P Washer) M4x14 (1).
(1)
2. Loo
sen the Nut 2 M4 (2) and loosen the Bolt Socket (3) for adjusting the tension.
(3)
(2)
3.
Remove two Bolt Socket
s (4) and remove the Bellows Support Plate (5).
(4)
(5)
GT-3 Series
128
