6. Replacing Parts
6-1-42. Removing the Needle Felt
GT-3 has stopped mounting the Needle Felts since K2994330
because the stuck ink around the Needle may
give damage to the spout on the Ink Cartridge. Remove the Needle Felts if the severe misfiring occurs in the
unit before K2994329.
There are two ways to remove the Needle Felts.
Process 1 is to remove the ink and Felts with the Needle Bracket dismounted (recommended).
Process 2 is to execute with the Needle Bracket mounted. For those who is not used to the machine
maintenance, e.g. Tubes, Needles and other mechanical operations, or some situation that you cannot have
space to dismount the Needle Bracket.
Required Tool
・ Phillips screwdriver Plus: M3, M4
・ Stubby screwdriver Plu
s (less than 7 cm): M4
・ Tweezers (see right photo)
・ Scissors (see right photo)
・ Plastic gloves
・ Paper or cloth with less dust
・ Mirror
<Note>
・ Be sure to turn OFF the printer and disconnect the AC cord.
・ Take care not to bend or crush the Tubes; they are very fragile, especially a new Tube. Handle with care
and keep the minimum bending radius by 50 mm or more.
・ Replace to a new Tube if bent or damaged.
・ Operate as quickly as you can; Ink may be dried and may give damage to the print quality.
・ Be sure to operate with gloves on.

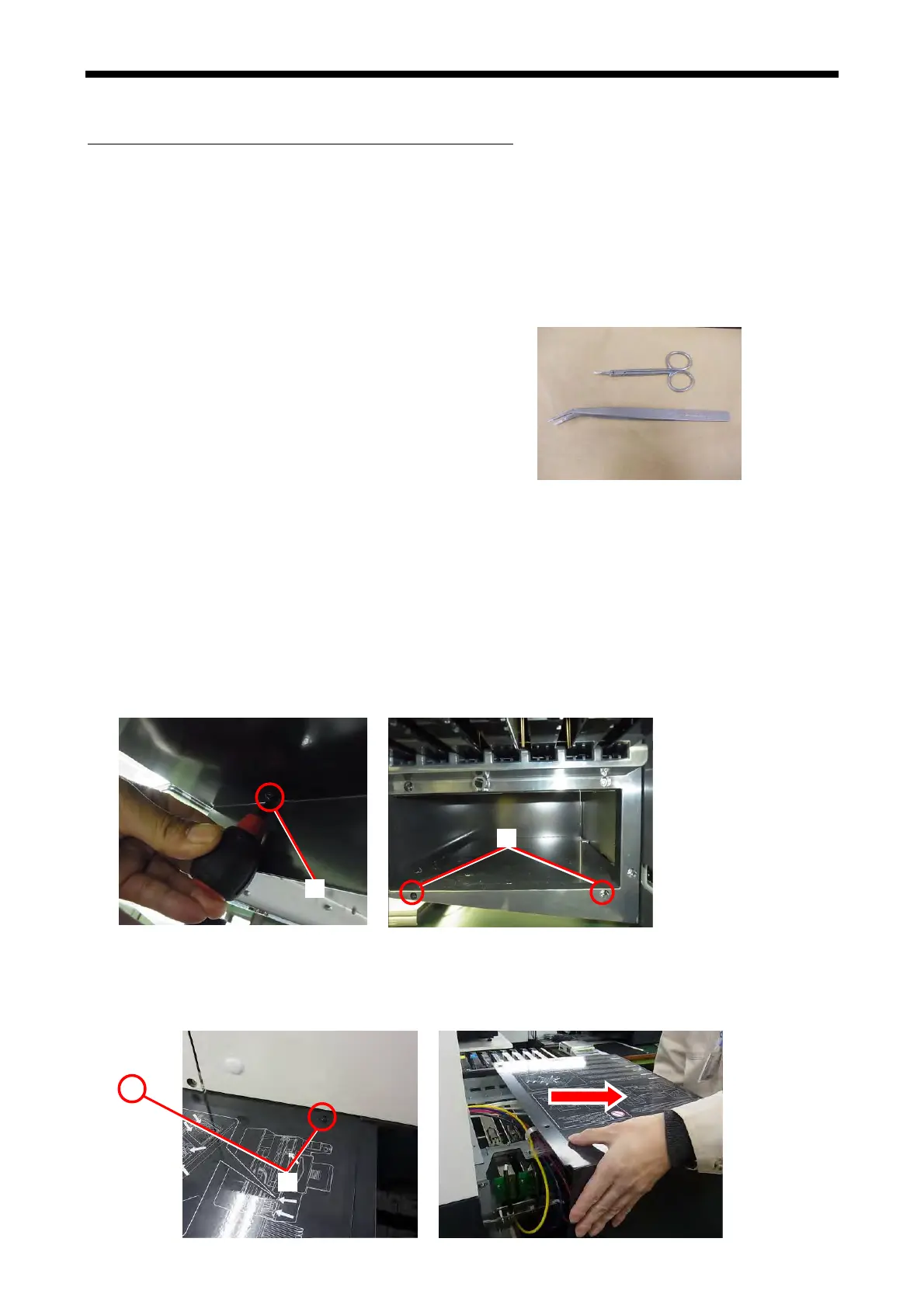

Process 1
1. Remove the Cover Cartridge. (Refer to “6-1-2. Assembling/ Disassembling of the Covers”.)
Loosen the one Screw (1) at the bottom of the Cover Cartridge.
Remove the two Screws (2) in the front of the Cartridge Front Cover.
(2)
(1)
2.
Remove the t
wo Screws (3) on the top of the Cover Cartridge.
Pull out the Cover Cartridge in the direction of the arrow (right photo). Pay attention not to give damage
to the Tubes in operation.
Keep the Cartridge Cover on the safe and flat place.
GT-3 Series
301
(3)
To Next Page
