Brother GT-3 Series Service Manual

6. Replacing Parts
6-2-15. USB Host PCB Assy

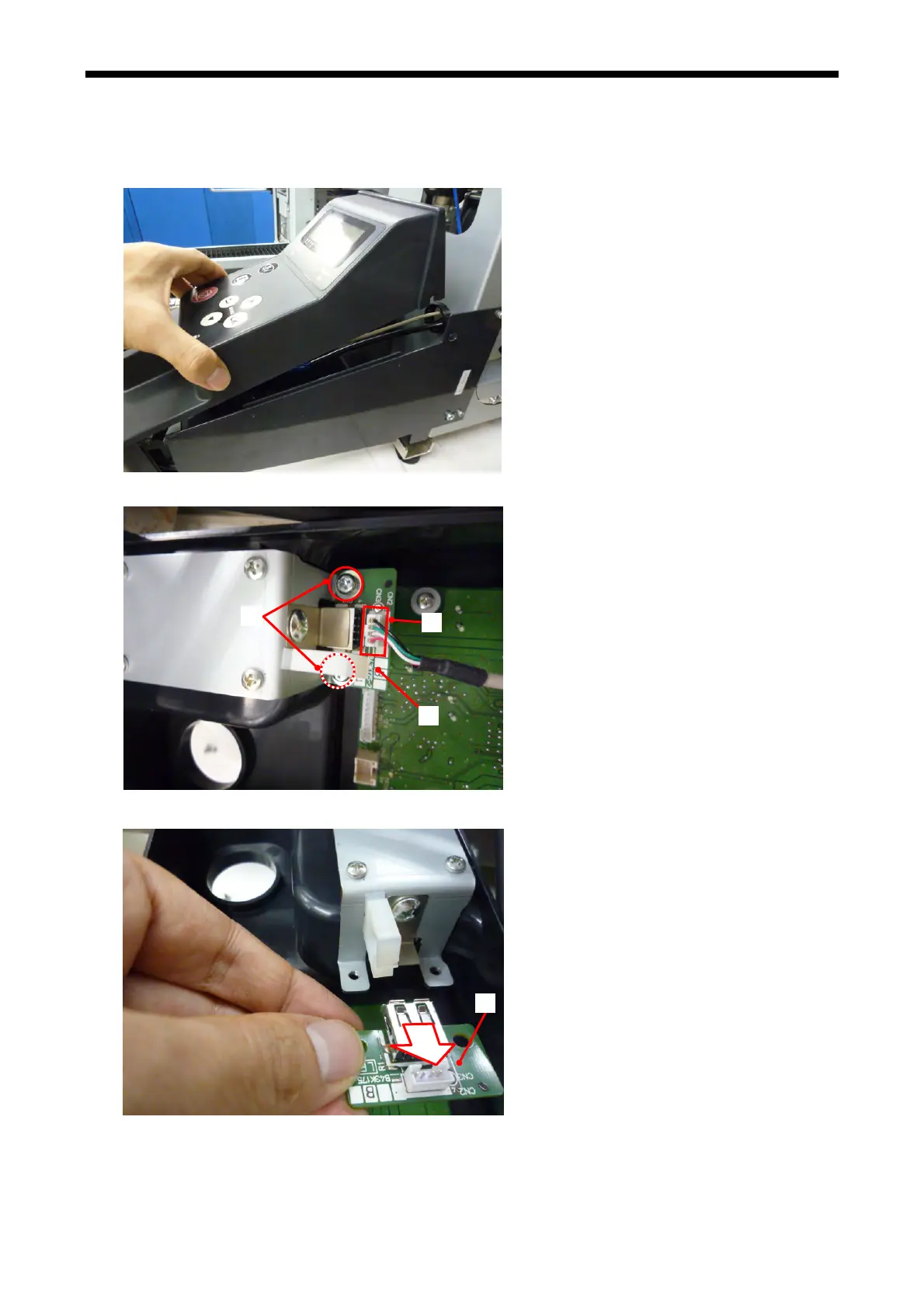

Disassembling
1. Remove the plastic Panel Upper Cover (4) on the top of the Panel Body Assy. (Refer to “6-2-14. Panel
PCB Assy”.)
2.
Remove the
one Connector (2) and remove the two screws that fix the PCB.
(1)
3
(2)
3. Remove the
USB Host PCB Assy (1).
(1)
4.
Follow the
reverse steps in reassembling.
GT-3 Series
334
