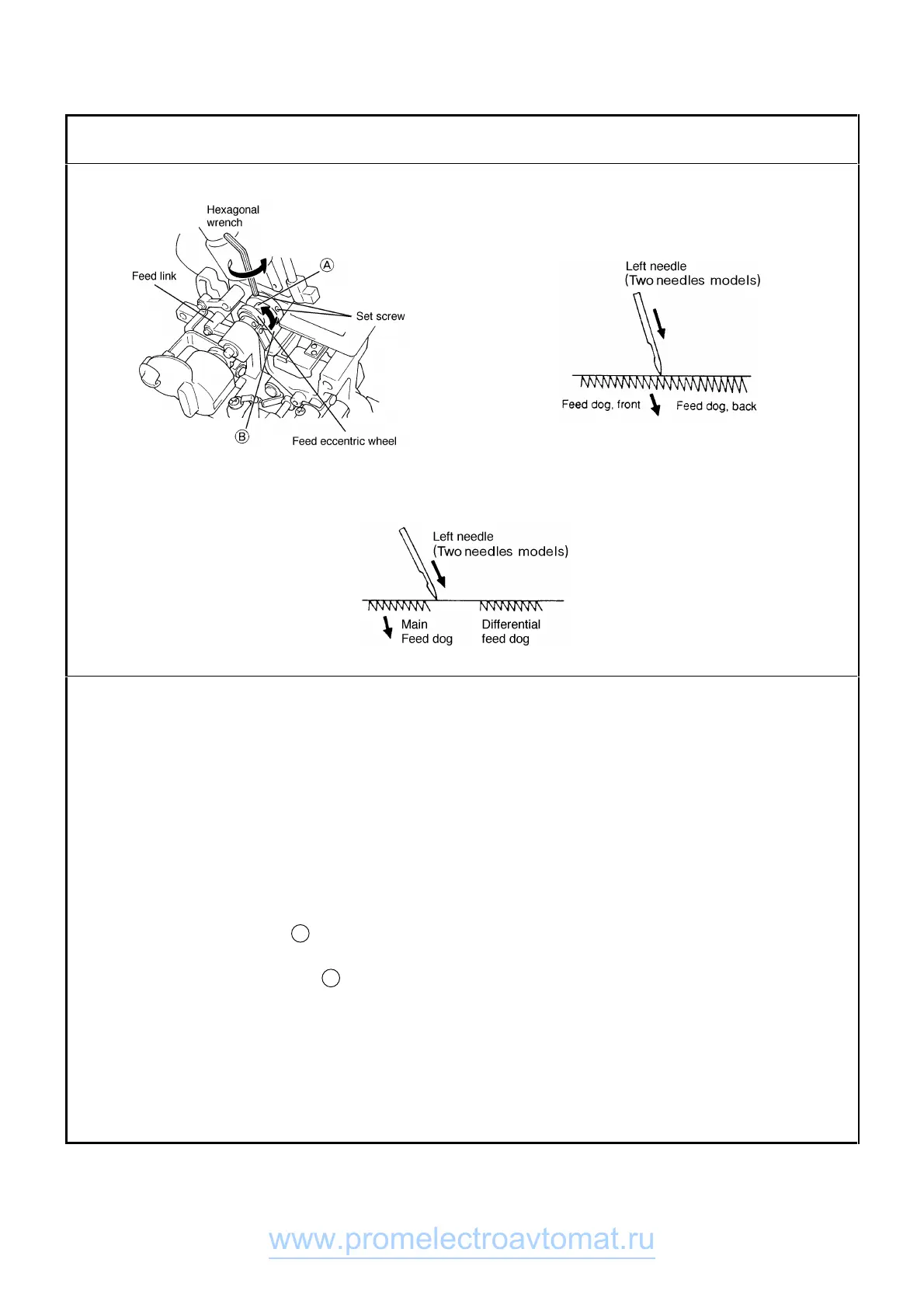

The standard timing of the feeding: Main feed dog should be at the same level as upper surface of needle
plate when needle for overlocking goes down and point of it touches upper surface of needle plate.
As the overlock needle is descending and about to enter the needle plate hole, the feed dog must be
positioned at the surface of the needle plate.
NOTE: (a) Before the adjustment, check the Height of the feed dog and set the "Sewing pitch" at "3".
(b) Fabrics will not be fed straightly in case feed dog is inclined.
1. Open the cloth plate cover and loosen the set screws of the feed eccentric wheel by means of a
hexagonal wrench.
2. Turn the wheel and adjust the timing:
(a) In case of early timing, in other words when the feed dog is still positioned over the needle plate, turn
the wheel in direction A .
(b) In case of late timing, in other words when the feed dog is already positioned under the needle plate,
turn the wheel in direction B .
3. Tighten the set screws well.
