Page 4

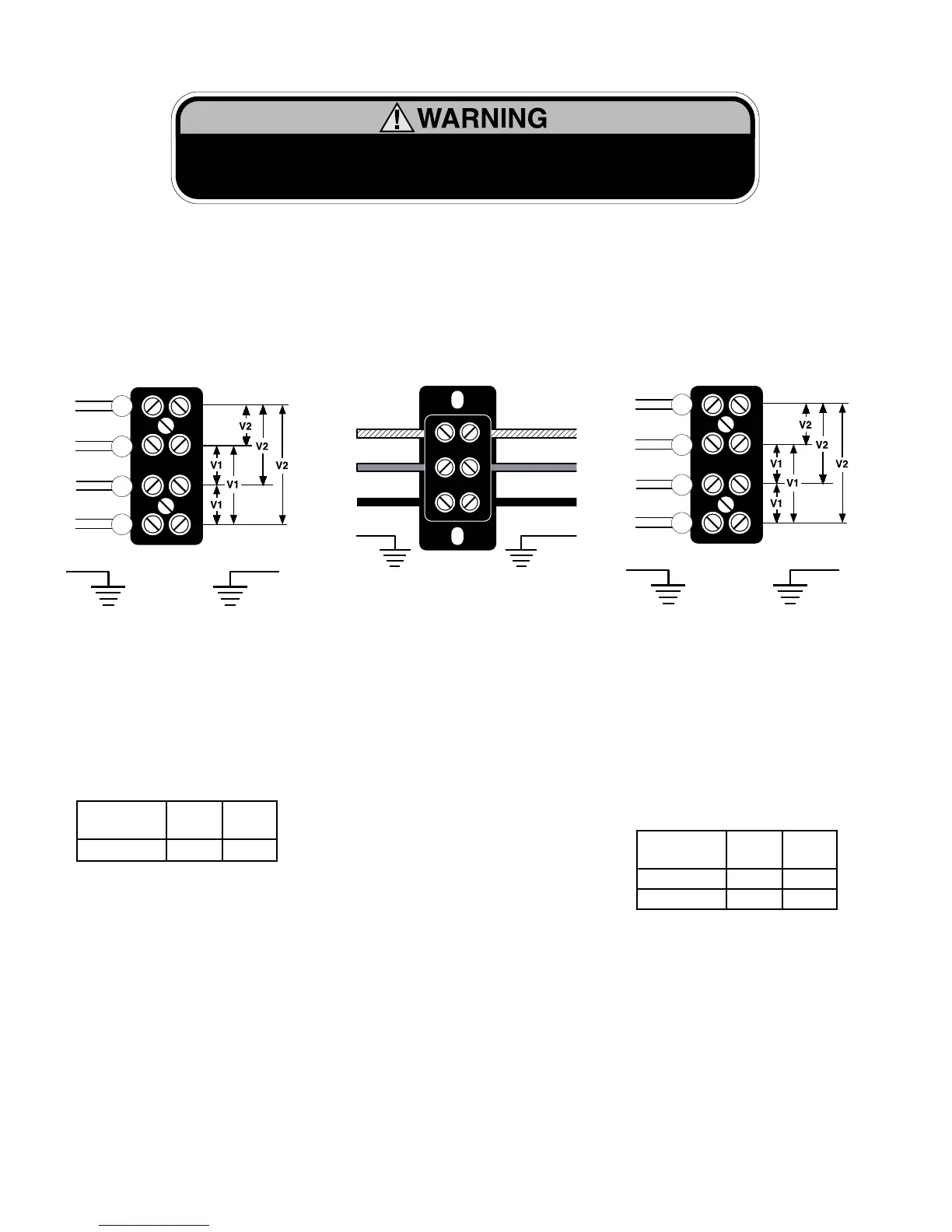

ELECTRICAL REQUIREMENTS (Models with power cord)
WARNING - The brewer must be disconnected from the power source until specified in Initial Set-Up.
Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements.
To reduce the risk of electric shock,
do not remove or open cover.
No user-serviceable parts inside.
Authorized service personnel only.
Disconnect power before servicing.
USER NOTICES (cont.)
37881.0002
GREEN GREEN
L1, L2, L3, are the 3 phases
V1 = Phase to phase voltage, between any 2
phases.
V2 = Phase to neutral voltage, L1 to neutral
must be 120V.
SYSTEM
VOLTAGE V1 V2
208 208 120
240 240 120
CAUTION: Do not connect L1 to a circuit
operating at more than 150 volts to
ground.
120/208 and 120/240 volt ac
3 phase & multi phase,
60 Hz models
Note: This electrical service
consists of 4 current carrying
conductors (Neutral, L1, L2
and L3) and a separate con-
ductor for earth ground.
400/230V ac
3 phase models
Note: This electrical service
consists of 4 current carrying
conductors (Neutral, L1, L2
and L3) and a separate con-
ductor for earth ground.
GREEN GREEN
BLK
RED
BRN
BLU
L1
L2
L3
N
WHI
BLK
RED
BLU
L3
L2
L1
N
SYSTEM
VOLTAGE V1 V2
400/230 400 230
L1, L2, L3, are the 3 phases
V1 = Phase to phase voltage, between
any 2 phases.
V2 = Phase to neutral voltage, between
neutral and any phase.
120/208 and 120/240 volt ac
multi phase, 60 Hz models
Do NOT connect an external neu-
tral to this brewer.
Note: This electrical service con-
sists of 3 current carrying conduc-
tors (L1, L2 and L3) and a separate
conductor for earth ground.
GREEN GREEN
L1 BLACK L1 BLACK
L3 BLU L3 BLU
L2 RED L2 RED
35058.2 022410
