Page 6 - Manual FA01560-EN - 02/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

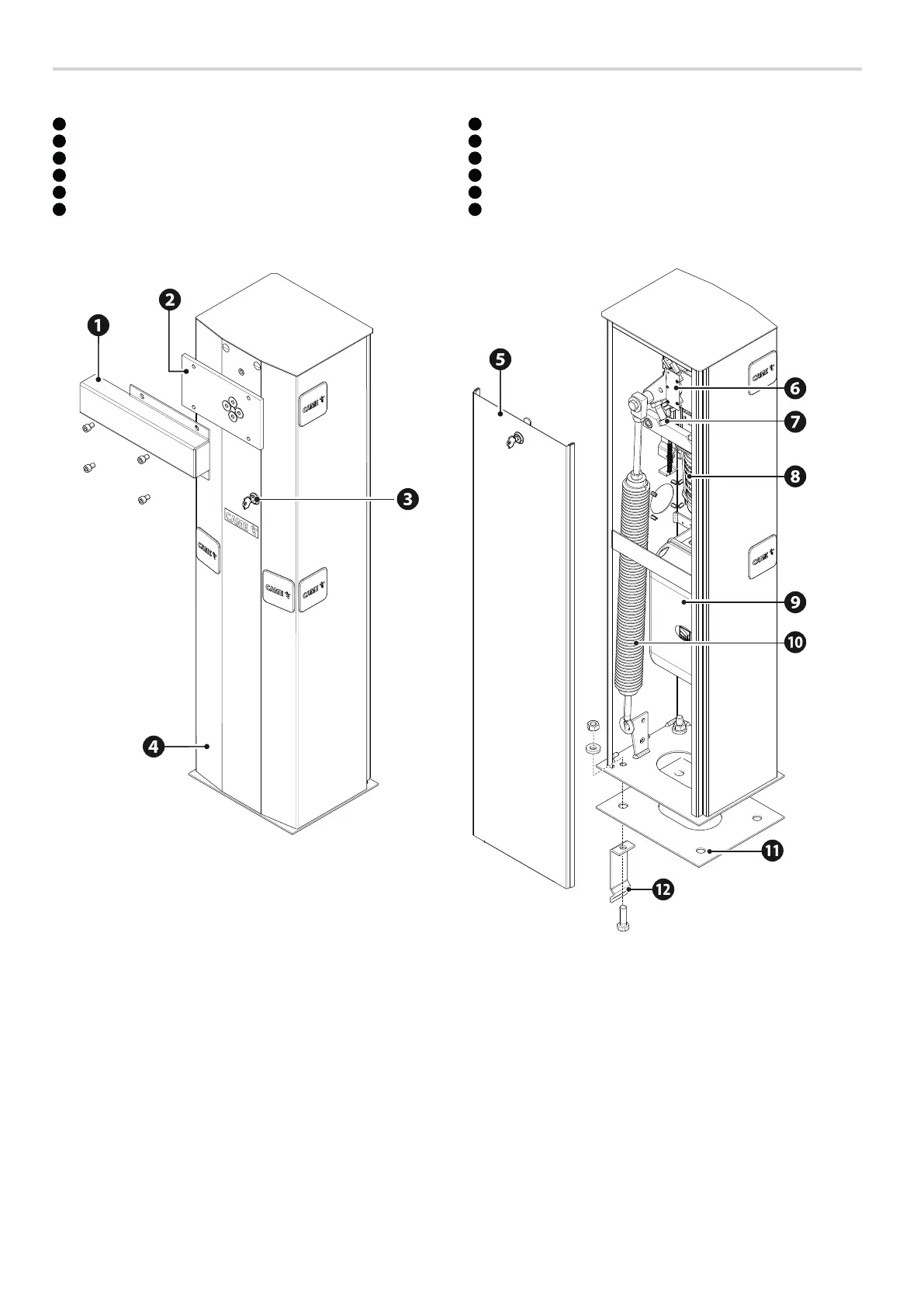

Description of parts
Barrier
1
Boom attachment
2
Boom anchoring plate
3
Lock for release
4
Cabinet
5
Inspection hatch
6
Microswitch support plate
7
Mechanical stops
8
Gearmotor
9
Control panel
10
Balance spring
11
Anchoring plate
12
Anchoring brackets
