SG-38MHRC-01 Specifications subject to change without notice. 13
WIRING DIAGRAMS (CONT)

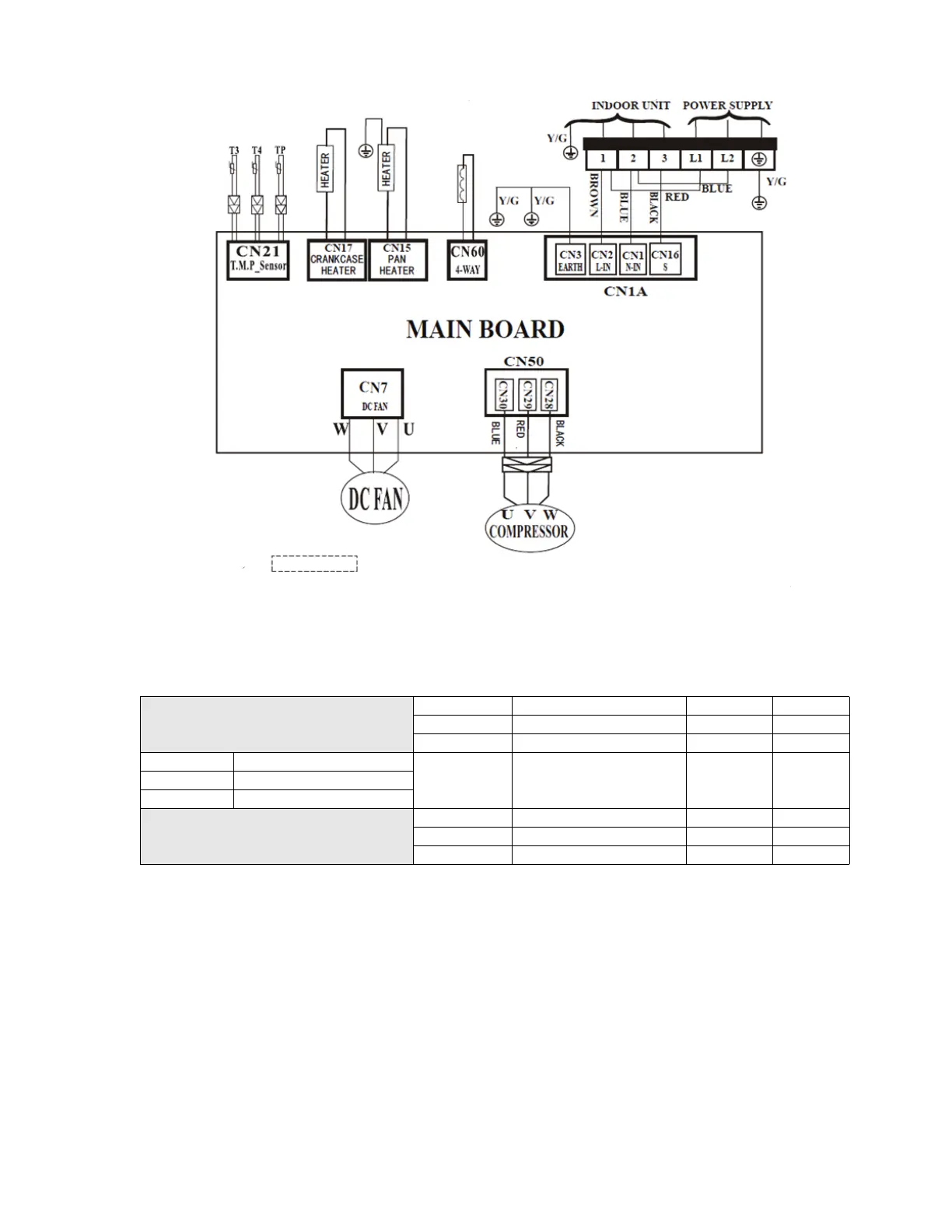

Fig. 10 — Wiring Diagram Sizes 9-18K (208-230V)
Table 9 — Wiring Diagram Sizes 9-18K (208-230V)
CN1A INPUT 230V AC
CN7 OUTPUT 0-310V AC
CN60 OUTPUT 230V AC
T3 Condenser TEMP. Sensor
CN21 OUTPUT 0-5V DCT4 Ambient TEMP. Sensor
TP Discharge TEMP. Sensor
CN15 OUTPUT 230V AC
CN17 OUTPUT 230V AC
CN50 OUTPUT 0-310V AC
This symbol indicates that
the element is optional.
The actual shape shall prevail.
