42PHW / 42PHQ / 42PHQ...K
GB - 3
ENGLISH

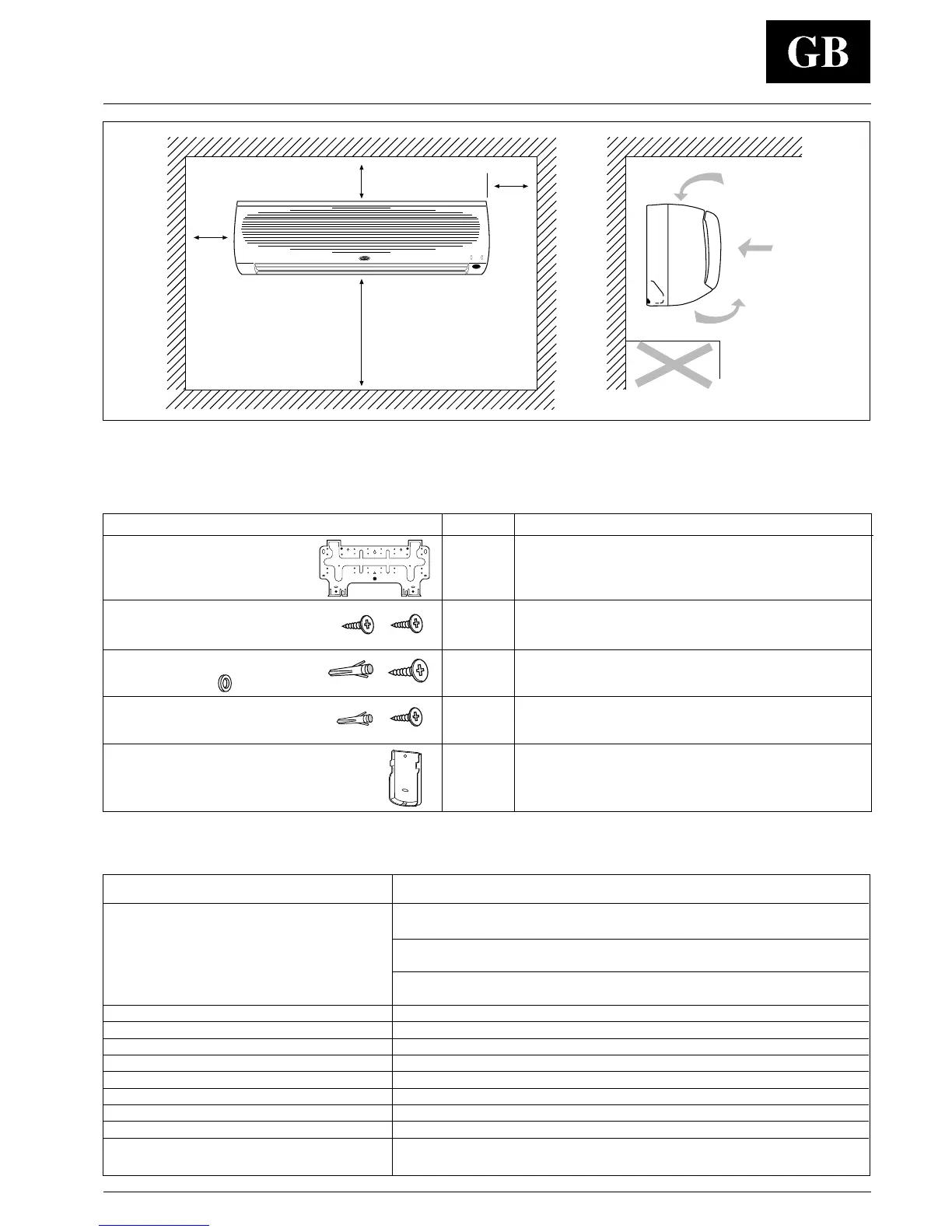

Minimum clearances (mm)
Obstacle
The following field-supplied items are required to complete the installation.
Name Specification
42PHW007, 009 / 42PHQ007,007K, 009, 009K:
Ø (3/8”) 9.52 mm (Gas) / Ø (1/4”) 6.35 mm (Liquid)
42PHW012, 014, 018, 024 / 42PHQ012, 012K, 014, 014K, 018, 018K, 024:
Connection pipe
Ø (1/2”) 12.70 mm (Gas) / Ø (1/4”) 6.35 mm (Liquid)
42PHQ024K:
Ø (5/8”) 15.87 mm (Gas) / Ø (1/4”) 6.35 mm (Liquid)
Wall sleeve
Wall cap
Finishing tape PVC film
Fastening tape
Pipe insulation
Drain hose I.D. 16-17 mm
Sealer putty
- Power supply cable H07RN-F or higher
- Electrical connecting cable
Cable type: A07 RN-F, synthetic rubber insulation with Neoprene coating,
between indoor and outdoor unit
according to EN (IEC) 60335-2-40 and HD277.S1 standards.
Table lIl: Material supplied
The following installation accessories are supplied with unit. Use them as required.
NAME and shape Q.ty Use
Wall hanging bracket 1 For indoor unit installation.
Screws 4xL10 2 For fixing unit and hanging bracket
Screws anchors and screws 6xL25
4 + 4 + 4 For wall hanging bracket installation.
Washers Ø 12
Screws anchors and screws 6xL20 2 + 2 For cordless remote control
mounting bracket installation
Cordless remote control
1 For cordless remote control installation.
mounting bracket
90
min.
200
min.
100
min.
1900
min.
