Carrier FY4A series User Manual

4
036 Puron - 3/4" I.D.SWEAT 036 R-22 - 7/8" I.D.SWEAT 042 - 060 - 7/8"I.D.SWEAT
LIQUID: 3/8" I.D. SWEAT CONDENSATE: 3/4" FPT
A05355

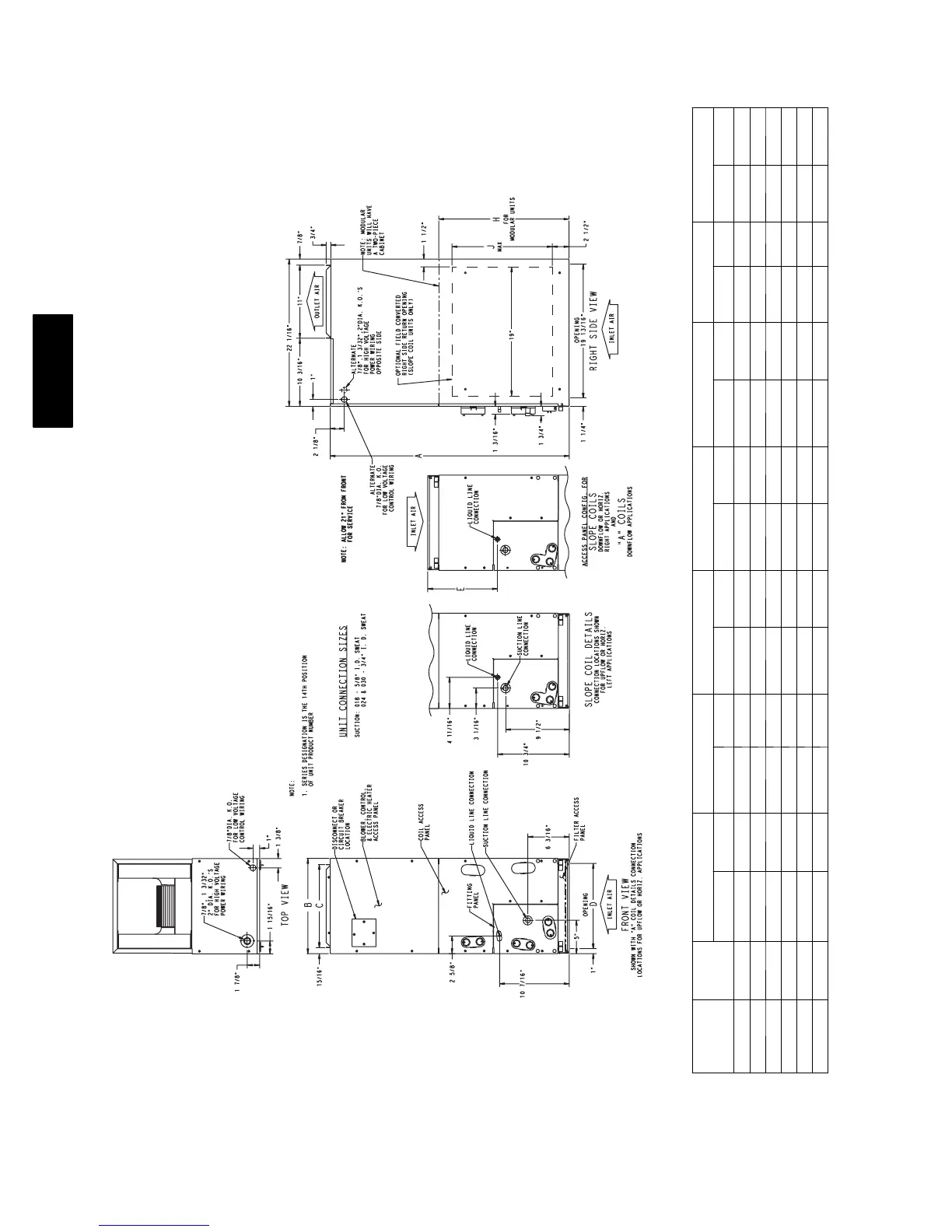

DIMENSIONS
UNIT
SIZE
FY, FA
COIL
TYPE
A B C D E H† J
in mm in mm in mm in mm in mm in mm in mm
018 Slope 42--- 11/16 1084 14--- 5/16 364 12--- 7/16 316 12---5/16 313 10--- 7/16 265 — — 12 305
024, 030 Slope 47--- 11/16 1211.5 17--- 5/8 448 15--- 3/4 400 15--- 5/8 397 15---3/8 391 — — 17 432
036 Slope 53--- 7/16 1357 21--- 1/8 537 19---1/4 489 19---1/8 486 19---3/16 487 — — 19 483 042 A 49---5/8 1260.5 21--- 1/8 537 19---1/4 489 19---1/8 486 15---3/8 391 — — — — 048 A 53--- 7/16 1357 21---1/8 537 19 ---1/4 489 19 ---1/8 486 19 --- 1/2 495 — — — — 060 A 59---3/16 1503 24--- 11/16 627 22--- 3/4 577 22 --- 11/16 576 25---1/4 642 34--- 1/16 685 — —
† Applicable to modular units only.
FY4A / FA4C
