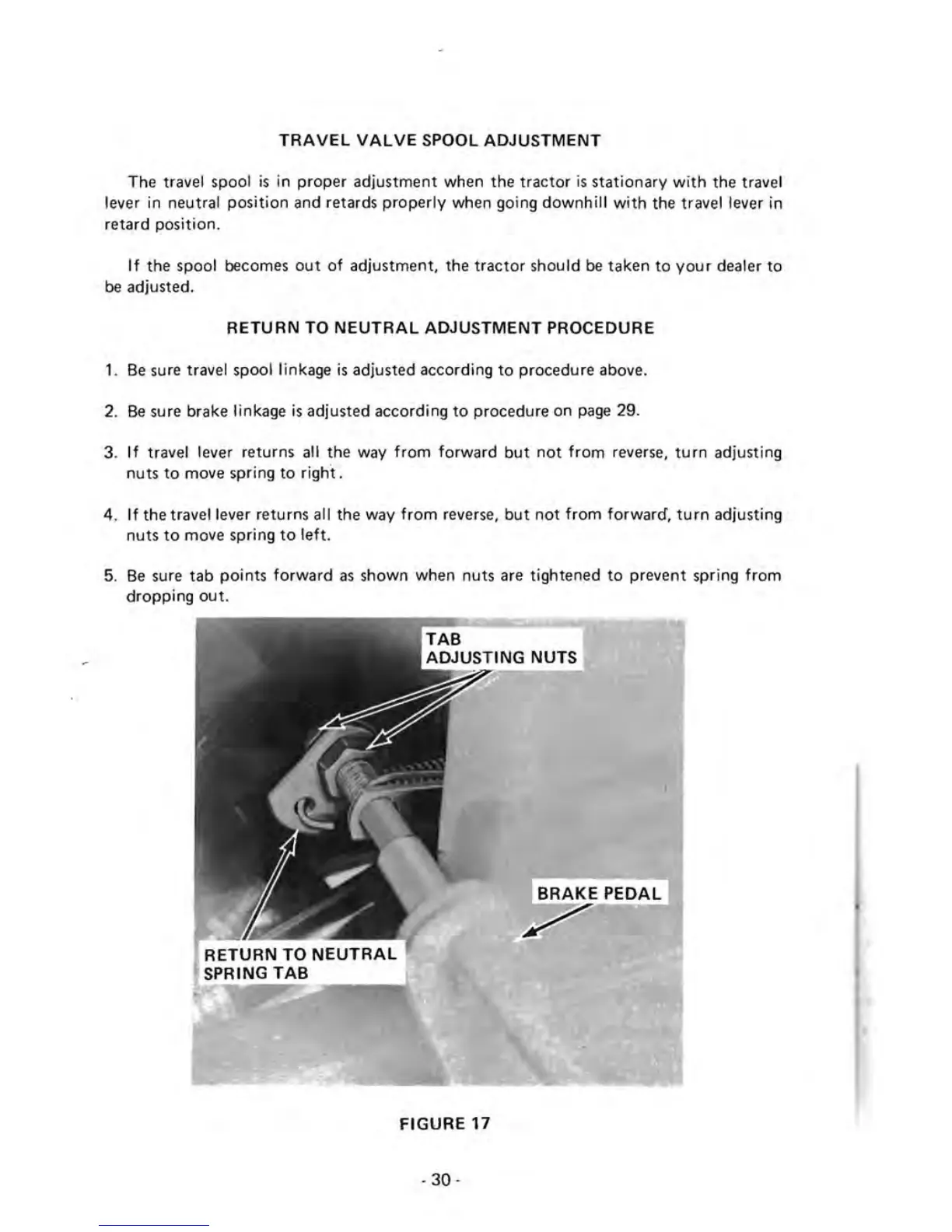

TRAVEL VALVE SPOOL ADJUSTMENT
The travel spool is in proper adjustment when the tractor is stationary with the travel
lever
in neutral position and retards properly when going downhill with the travel lever in
retard position .
If the spool becomes out of adjustment, the tractor should be taken to your dealer to
be adjusted.
RETURN TO NEUTRAL ADJUSTMENT PROCEDURE
1. Be sure travel spool linkage is adjusted according to procedure above.
2.
Be sure brake linkage is adjusted according to procedure on page 29.
3.
If travel lever returns all the way from forward but not from reverse, turn adjusting
nuts to move spring to right.
4. If the travel lever returns all the way from reverse, but not from forward, turn adjusting
nuts to move spring to left.
5.
Be sure tab points forward as shown when nuts are tightened to prevent spring from
dropping out.
BRAKE PEDAL
~
FIGURE 17
·30 -
