IC200 IC300
M51348FP-T1 M52045FP
IF AGC OUT 1 24 IF AGC ADJ
IF AGC IN 2 23 SyOUT
RF AGC 3 22 SyIN
AGCDL 4 21 AFTC
VCCv 5 20 LLD
IFIN 6 19 LLD
IFIN 7 18 VIDEO
GNDv 8 17 AFT
VCCs 9 16 SIFOUT
SIFIN 10 15 FMD
FB 11 14 ATT
GNDs 12 13 AUDIO
VIDEO 1 24 VCC
SY IN 2 23 VCXO OUT
ACCF 3 22 NC
SY OUT 4 21 VCXO IN
HDIN 5 20 COLOR
Y CLAMP 6 19 TINT
Y LPF 7 18 KILLER F
Y OUT 8 17 APCF
CONT 9 16 APCREF
R 10 15 KILLER OUT
G 11 14 PIX
B 12 13 GND

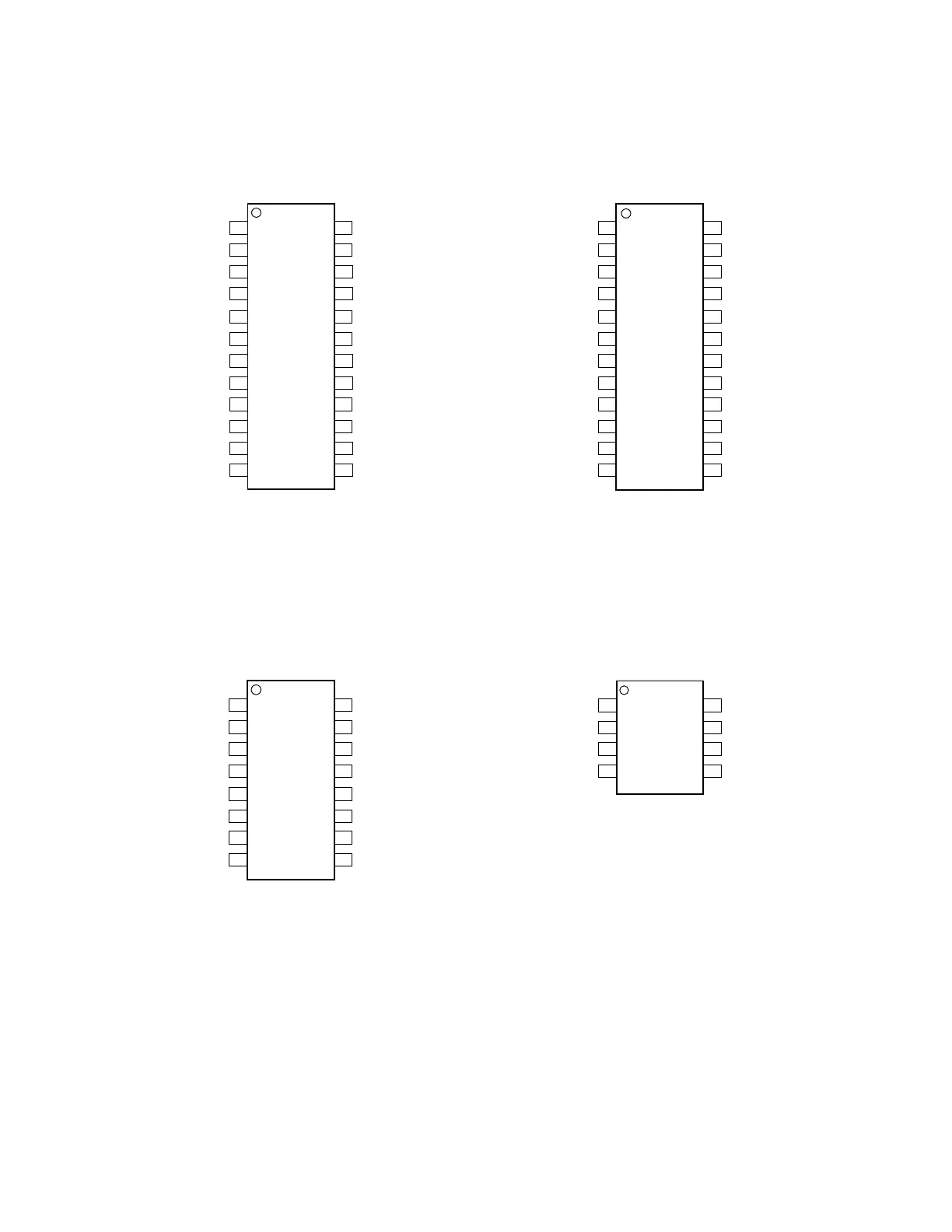

IC AND TRANSISTOR LEAD IDENTIFICATION
IC/LSI
Vref 1 16 VCC
U1 2 15 BS
U2 3 14 BT
VL1 4 13 IN
VL2 5 12 OUT
VH1 6 11 TU
VH2 7 10 H/L
GND 8 9 U/V
IC500
MSC1169MS-K-620
NC 1 8 NC
+IN 2 7 VCC
–IN 3 6 OUT
GND 4 5 GND
IC600
NJM2070M-T1
