6-67

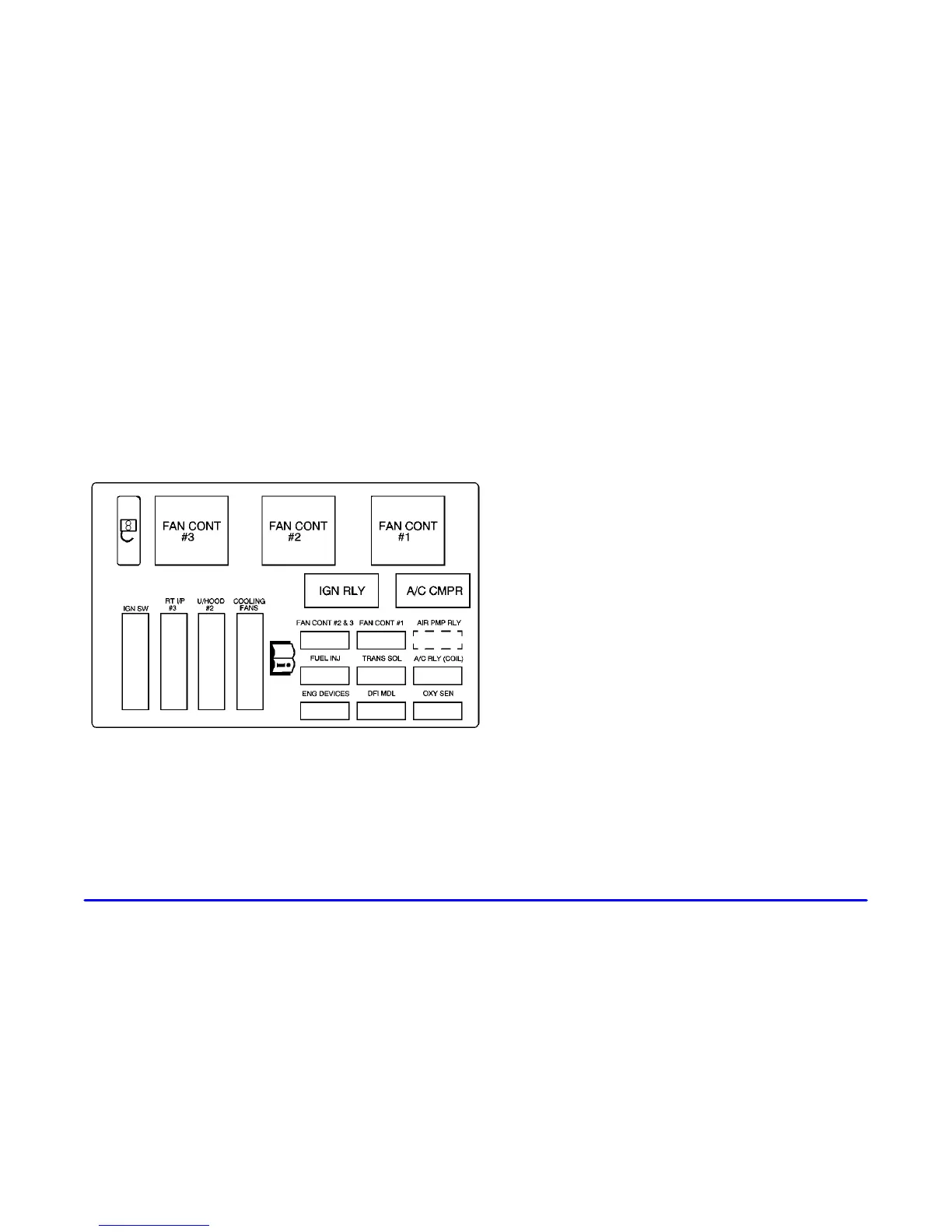

Underhood Fuse Block (Lower)
Some fuses are in a fuse block in the engine
compartment on the passenger’s side of the vehicle.
See “Engine Compartment Overview” in the Index
for more information on location.
Circuit Relay Description
FAN CONT #3 Secondary Cooling Fan
(Passenger’s Side)
FAN CONT #2 Cooling Fan Control Relay
FAN CONT #1 Primary Cooling Fan
(Driver’s Side)
IGN RELAY Ignition Relay
A/C CMPR HVAC Compressor
Maxi Fuses Description
IGN SW Ignition Switch
RT I/P #3 Rear Defogger, Audio System
U/HOOD #2 Ignition Relay, AIR Pump
COOLING
FANS
Cooling Fans (Battery)
