14
Installing and Upgrading Fans in Cisco 2811 Series Routers
78-17850-01
Installing the Chassis Cover
Step 1 Position the cover so that it rests flat on the chassis, with the front (bezel) end of the cover about 1 inch
(25 mm) from the front end of the chassis. See Figure 19.

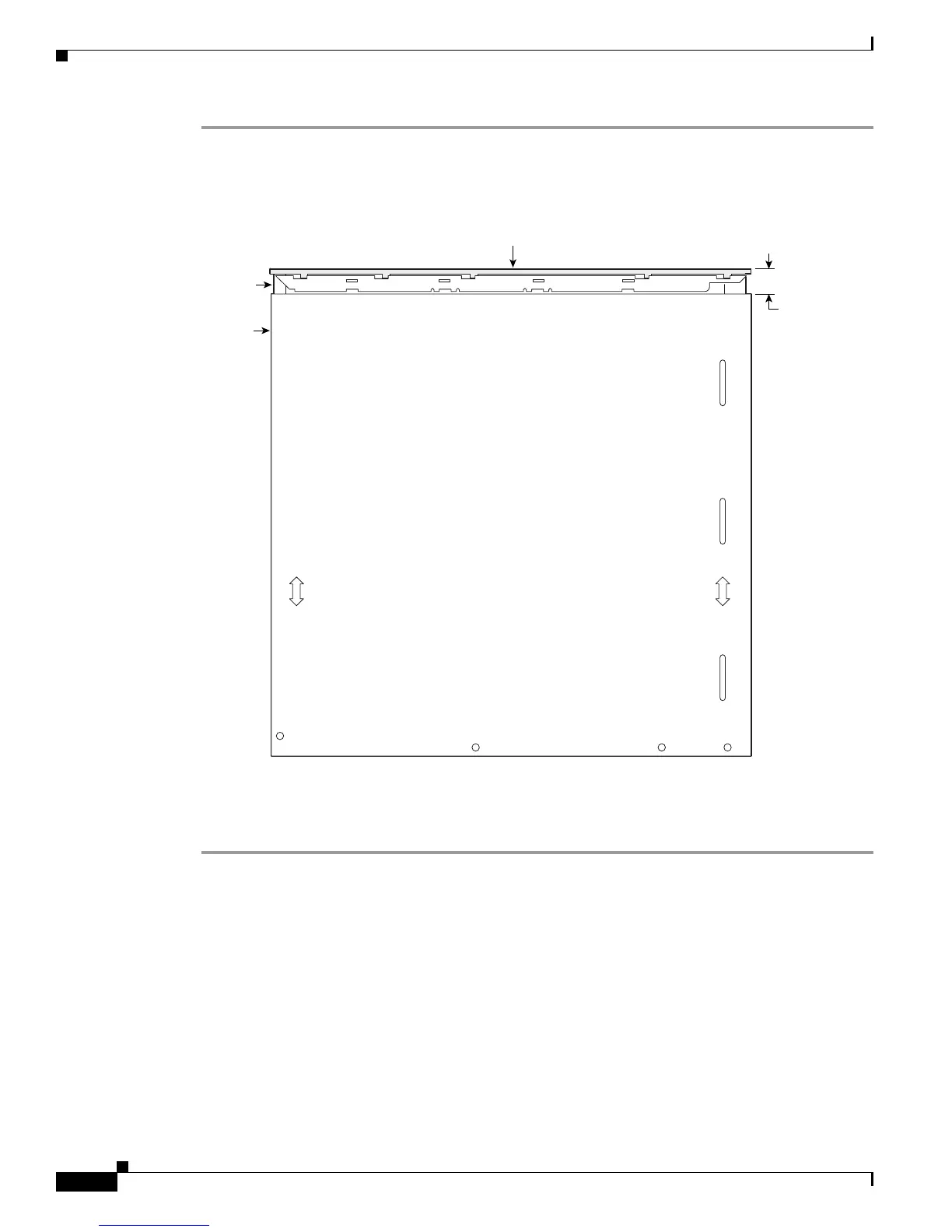

Figure 19 Cover in Position for Installation
Step 2 Slide the cover toward the front so that the male flanges enter the slots and the cover is fully closed. Press
the cover flat against the chassis while you slide the cover closed.
Step 3 Use a Phillips screwdriver to install the four screws at the top back of the cover.
Copyright © 2006 Cisco Systems, Inc. All rights reserved.
103528
Plastic bezel
Chassis
Cover
Approx. 1 inch
(25 mm)
