Cisco 4948 - Catalyst Switch User Manual

3-11
Catalyst 4948E and Catalyst 4948E-F Switch Installation Guide
OL-21561-02
Chapter 3 Installing the Switch
Installing the System Ground

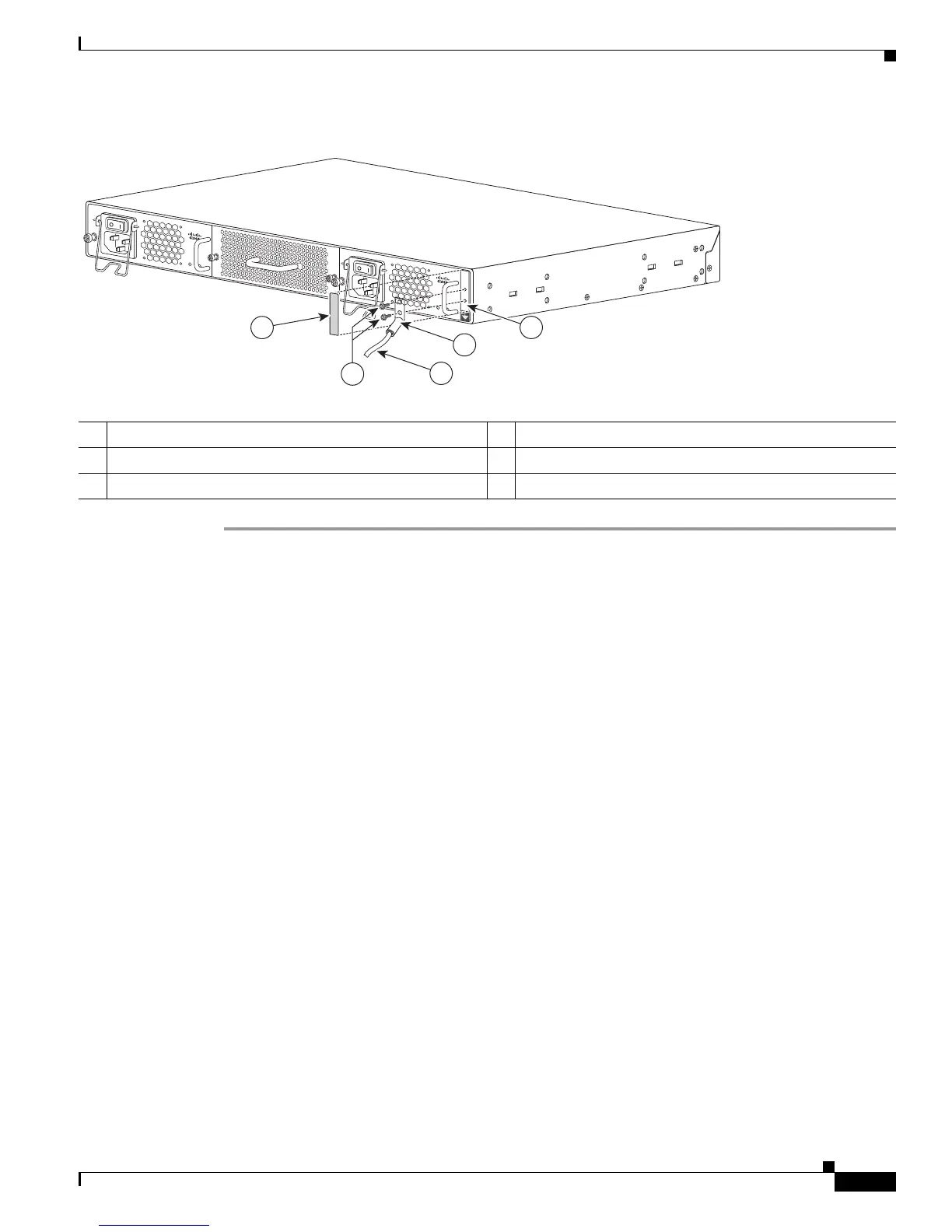

Figure 3-4 Installing the System Ground
1 Chassis grounding pad 4 M4 screws (2X)
2 System ground lug 5 Adhesive label (yellow). Covers grounding pad.
3 System ground wire
278168
INPUT
OK
OUTPUT
OK
PWR - 540 AC
100 - 240 VAC
7 - 3A
50 - 60 Hz
INPUT
OK
OUTPUT
OK
PWR - 540 AC
100 - 240 VAC
7 - 3A
50 - 60 Hz
4
1
2
3
5
