Cisco ASA 5512-X, ASA 5515-X, ASA 5525-X, ASA 5545-X, and ASA 5555-X Quick Start Guide
4. Modify the Initial Configuration for the ASA FirePOWER Module (Optional)
Cisco ASA 5512-X, ASA 5515-X, ASA 5525-X, ASA 5545-X, and ASA 5555-X Quick Start Guide
4
Note: The ASA 5525-X, 5545-X, and 5555-X include interfaces GigabitEthernet 0/0 through GigabitEthernet 0/7.
This procedure lets you connect to the ASA console port and paste in a new configuration that configures the following behavior:
 outside GigabitEthernet 0/0, IP address from DHCP
 inside bridge group with GigabitEthernet 0/1 through 0/5 (or through 0/7 for the ASA 5525-X, 5545-X, and 5555-X) member
interfaces, 192.168.1.1
 inside --> outside traffic flow
 inside --> inside traffic flow for member interfaces
 DHCP for clients on inside
 Management 0/0 belongs to the ASA FirePOWER module. The interface is Up, but otherwise unconfigured on the ASA. The
ASA FirePOWER module can then use this interface to access the ASA inside network and use the inside interface as the
gateway to the Internet.
Note: Do not configure an IP address for this interface in the ASA configuration. Only configure an IP address in the
FirePOWER configuration. You should consider this interface as completely separate from the ASA in terms of routing.
 ASDM access on the inside interface
 NAT: Interface PAT for all traffic from inside and management to outside.
Note: If you want to deploy a separate router on the inside network, then you can route between management and inside. In this
case, you can manage both the ASA and ASA FirePOWER module on Management 0/0 with the appropriate configuration changes.

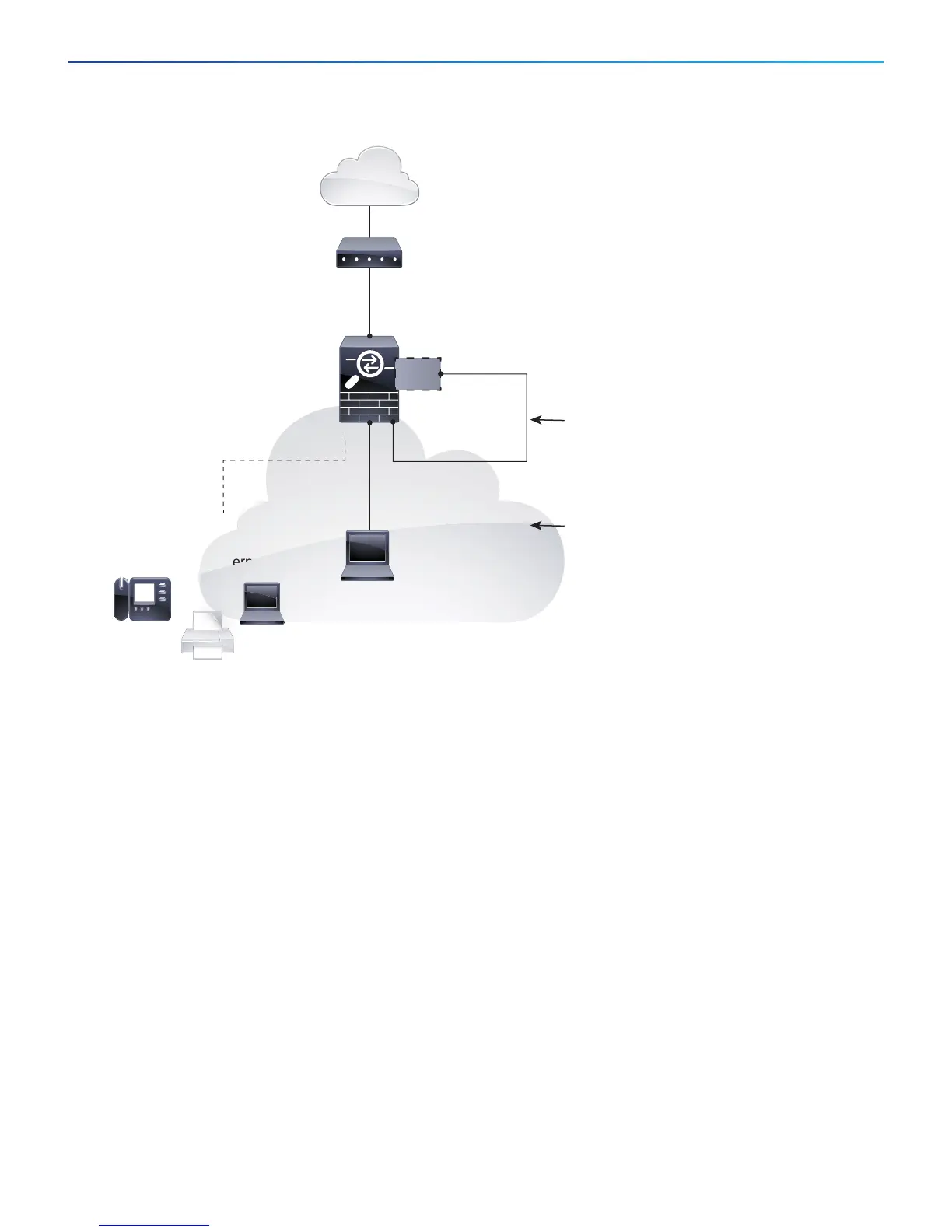

outside
GigabitEthernet 0/0
(DHCP)
inside
BVI 1
192.168.1.1
inside1
GigabitEthernet 0/1
inside3 - inside5
GigabitEthernet 0/3
- GigabitEthernet 0/5
inside2
GigabitEthernet 0/2
Internet
Management 1/1
No ASA IP address
ASA FirePOWER IP address: 192.168.1.2
ASA FirePOWER
Default Gateway
Direct Cable
Connection between
Management 0/0 and
GigabitEthernet 0/1
FP
Management
Computer
AP
- Gigab
bitEthernet 0
bitEtherne
