40 4012160 Rev C
How Do I Install the Modem for Telephone Service?

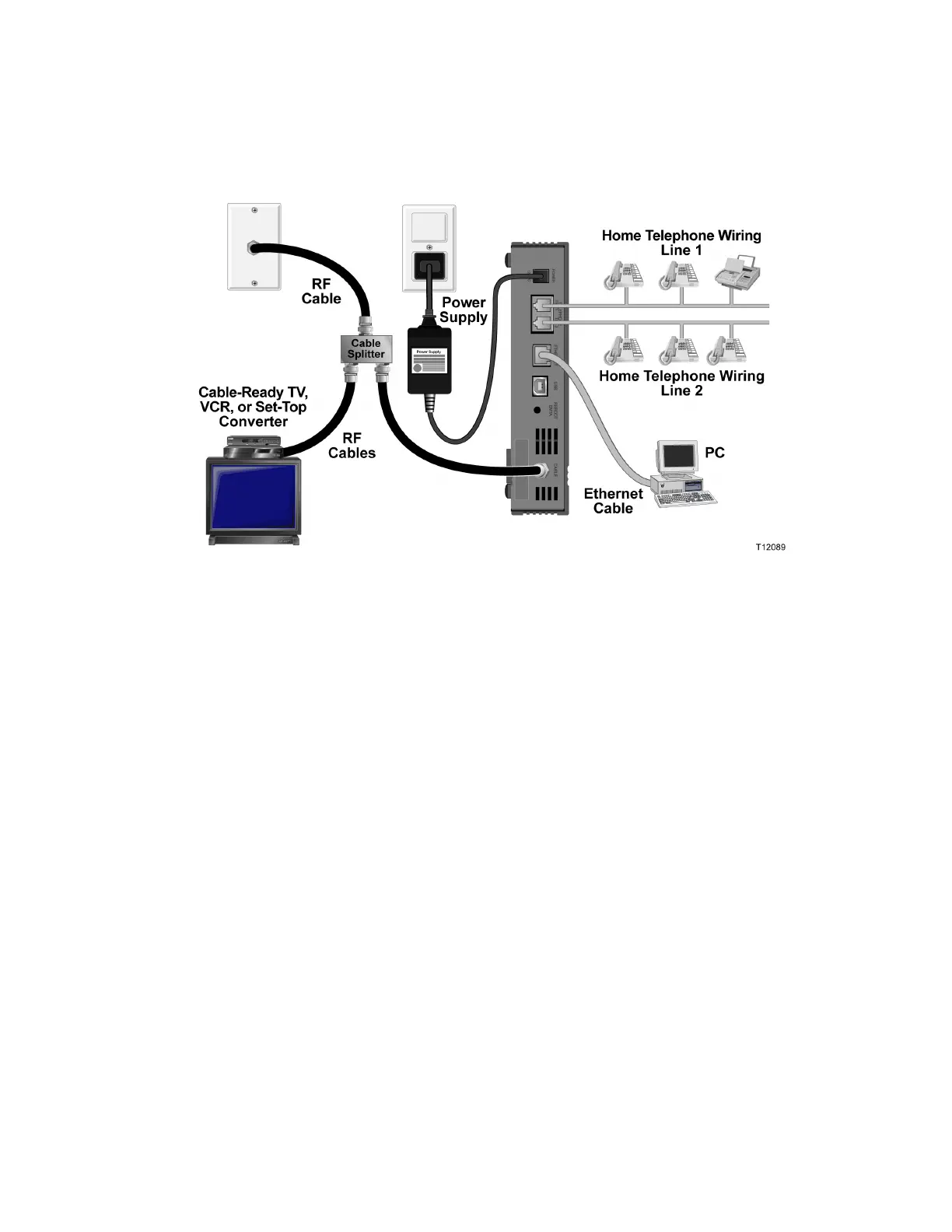

Installation Diagram
The following diagram illustrates one of the various connection options that are
available to you.
To install the cable modem for telephone service
1 Connect a telephone, fax machine, or analog modem to each of the appropriate
RJ-11 ports on the cable modem.
Notes:
The cable modem provides one line of telephone service on each of the RJ-11
connectors.
Service must be set up and enabled by the telephone service provider.
The two center conductors (pins 3 and 4) on the RJ-11 connector provide
electrical connections to directly attached telephone devices or to a
permanently installed in-home telephone wiring network.
The telephone port labeled Line 1 also supports multi-line telephone devices.
Line 1 is supported on pins 3 and 4, and Line 2 is supported on pins 2 and 5.
The use of telephones that require electrical connections to other RJ-11 pins
requires an adapter.
2 After all telephone connections are complete, insert the AC power cord into the
power connector on the back of the cable modem, and then plug the cord into an
AC power source.
3 Connect the active RF coaxial cable to the CABLE connector on the back of the
cable modem. The cable modem begins an automatic search to locate and sign on
to the network that provides the telephone service. This process may take up to 5
minutes. The modem will be ready for use when the ONLINE LED status
indicator on the front panel stops blinking and illuminates continuously
To Next Page
