Clevo M740S User Manual

Disassembly
2 - 20 Removing the Modem
2.Disassembly
Removing the Modem
1. Turn off the computer, remove the battery (page 2 - 5), HDD (page 2 - 6), component bay cover (page 2 - 11),
optical device (page 2 - 9), CPU (page 2 - 14), bluetooth (page 2 - 18) and keyboard (page 2 - 19).
2. Remove screws - from the bottom case and carefully disconnect the cable from the mainboard (Figure
17a).
3. Turn the computer over, remove screws - and disconnect cables - (Figure 17b).
4. For M760S/M765S/M766S/M767S only - remove screws - (Figure 17c) from the rear of the computer.
1
18
21
22
23
24
26
27
28

• 20 Screws
(M740S/M741S/
M745S)/ 24
Screws (M760S/
M765S/M766S/
M767S)
3
a.
b.
11
22
1
2
4
6
5
7
8
9
12
13
10
14
15
16
17
18
23
25
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
M760S/M765S/M766S/M767SM740S/M741S/M745S
26
22
23
24
25
26
c.
27 28
20
2121

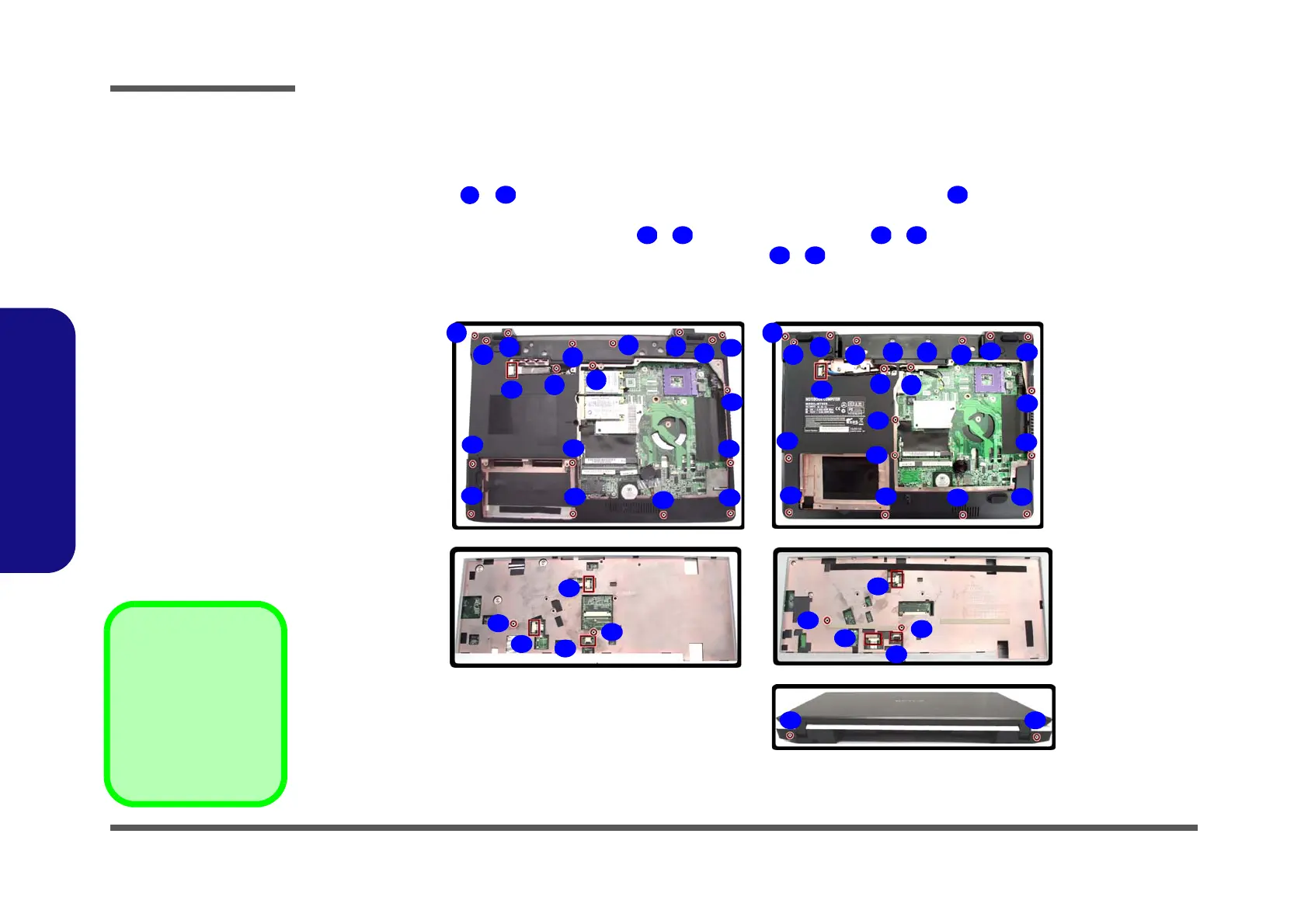

Figure 16
Modem Removal
a. Remove the screws and
diconnect the cable.
b. Turn the computer over,
remove the screws and
disconnect the cable.
c. Remove the screws.
