Disassembly
2 - 10 Removing the M.2 SSD Module
2.Disassembly
Removing the M.2 SSD Module
M.2 SSD-1 Removal Procedure
1. Turn off the computer, turn it over, remove the battery (page 2 - 5).
2. The M.2 SSD module will be visible at point on the mainboard (Figure 6a).
3. Remove the screw
(Figure 6b).
4. The M.2 SSD module (Figure 6c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new module (do not forget to replace the thermal pad, screws and bottom cover).
1
2
3
b. c.
a.
2
3
1
3

Thermal Pad
Make sure to place the
thermal pad’s adhesive
side down on the module’s
surface as illustrated.

3.M2 SSD Module
SATA/PCIE
•1 Screw
Figure 6
M.2 SSD-1 Module
Removal

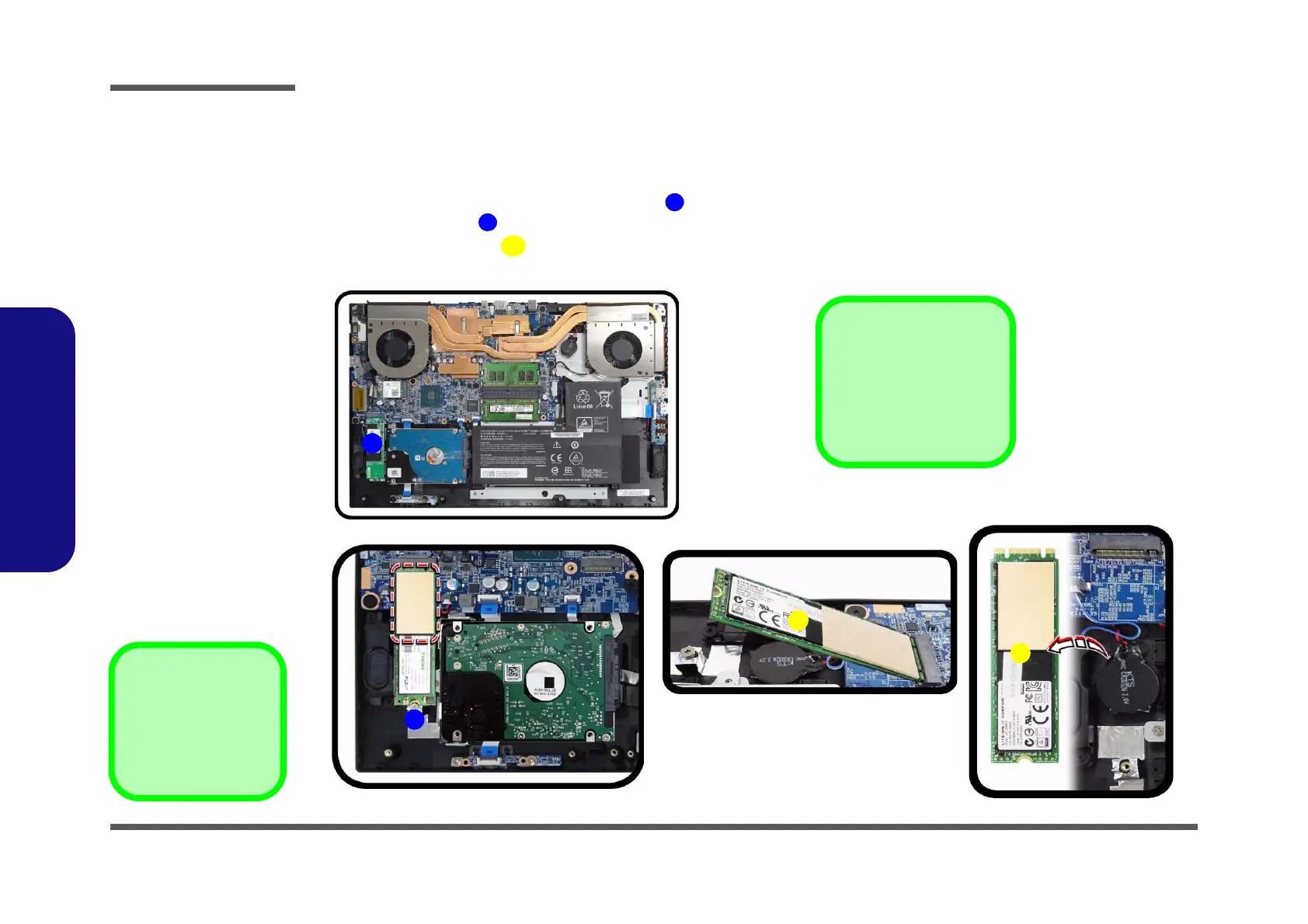

a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
