Installation instructions
Recoil hand shower
Convotherm maxx
Convotherm Elektrogeräte GmbH
Talstraße 35, 82436 Eglfing, Germany
T +49(0)88 47 67-0
F +49(0)88 47 414
www.convotherm.com
6/6
Art.Nr. / Part no 6267981_00 version deu, eng 10/20 Änderungen vorbehalten! changes excepted!
© 2020 Welbilt soweit nicht anders angegeben. Alle Rechte vorbehalten. / © 2018 Welbilt except where explicitly stated otherwise. All rights reserved.

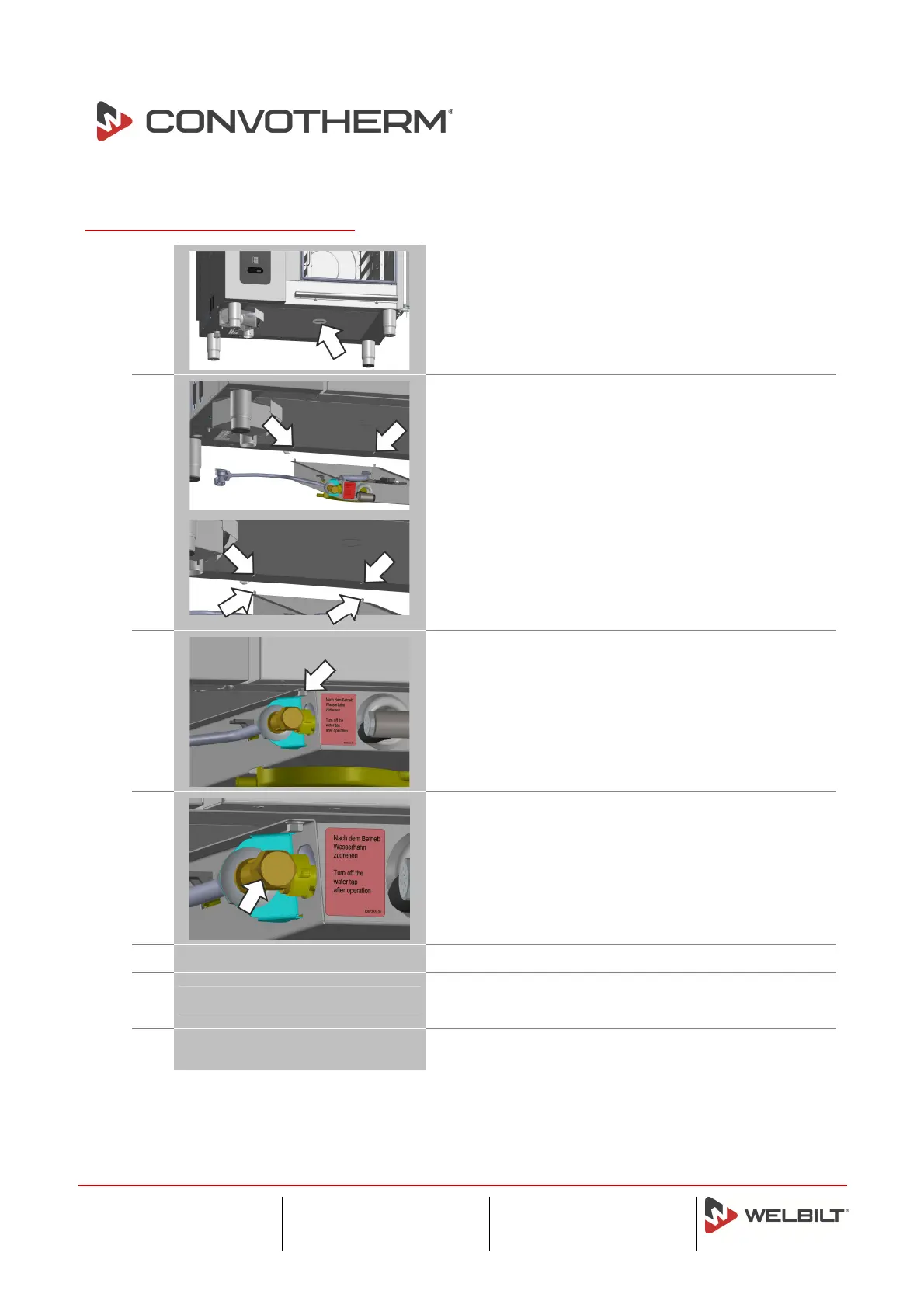

Installing the Convotherm maxx recoil hand shower
1.
Before installing the recoil hand shower, break out the perforat-
ed opening in the bottom of the appliance.
2.
Hook the rear section of the recoil hand shower housing into
the two openings in the bottom of the appliance.
3.
Secure the recoil hand shower housing to the bottom of the
appliance with the two M5x10 A2 self-locking screws included
in delivery.
Please note: The angle valve must always be closed during
unattended operation and after use of the recoil hand shower.
4.
Connect the recoil hand shower to the water supply.
5.
Reconnect the water supply, wastewater disposal system and
the power supply and check all screw connections for water-
tightness.
6.
Put the appliance back into service and run a functional test.
