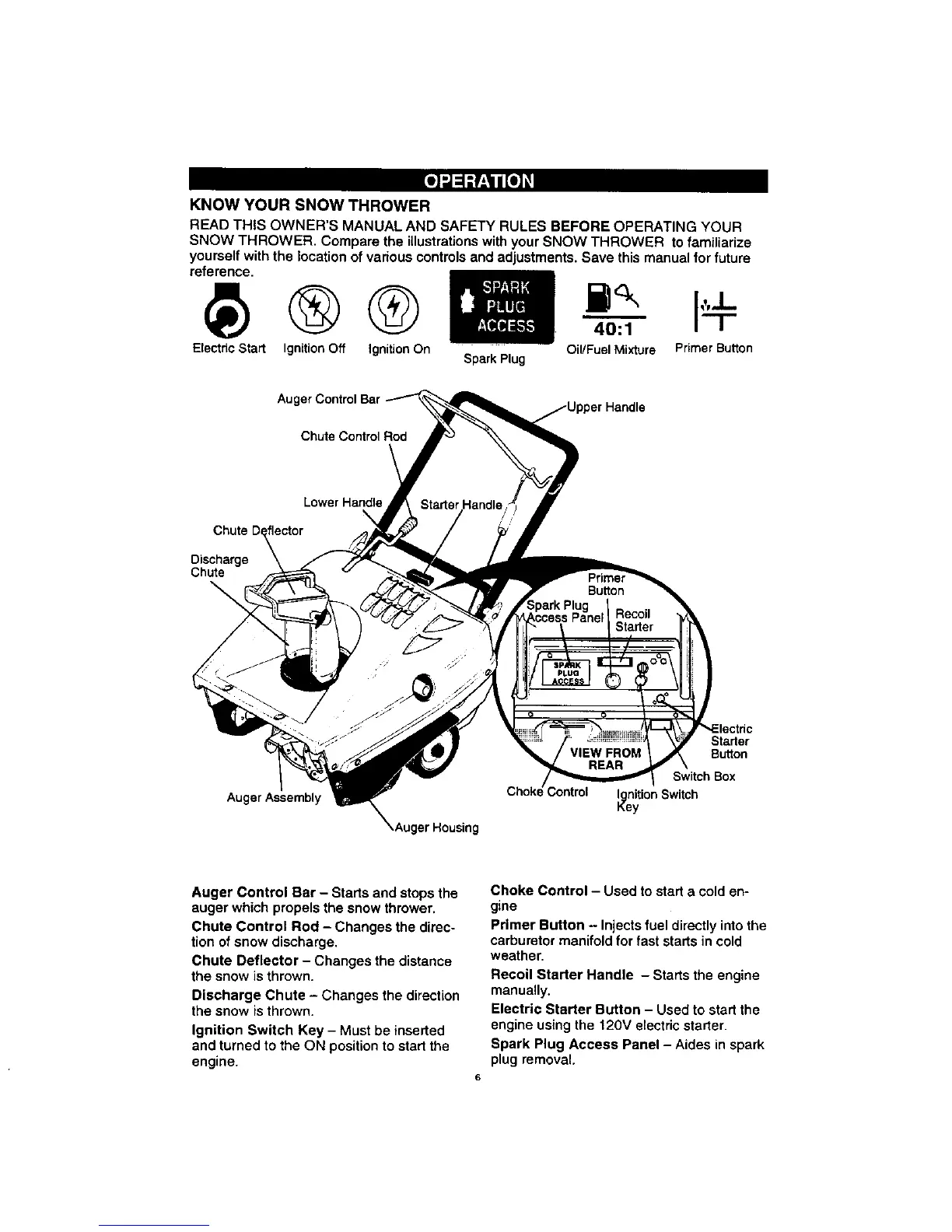

KNOW YOUR SNOW THROWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
SNOW THROWER, Compare the illustrations with your SNOW THROWER to familiarize
yourself with the location of various controls and adjustments. Save this manual for future
reference.
ElectricStart Ignition Off ignitionOn ..... Oil/Fuel Mixture Primer Button
Spark Plug
Aug
Chute ControlRod
Lower Handle
\
Chute
Auger Assembly
Starter
Button
REAR
Switch BOX
_enition Switch
Y
Auger Control Bar - Starts and stops the
auger which propels the snow thrower.
Chute Control Rod - Changes the direc-
tion of snow discharge,
Chute Deflector - Changes the distance
the snow is thrown.
Discharge Chute - Changes the direction
the snow is thrown.
Ignition Switch Key - Must be inserted
and turned to the ON position to start the
engine.
Choke Control - Used to start a cold en-
gine
Primer Button - Injects fuel directly into the
carburetor manifold for fast starts in cold
weather.
Recoil Starter Handle - Starts the engine
manually.
Electric Starter Button - Used to start the
engine using the 120V electric starter.
Spark Plug Access Panel - Aides in spark
plug removal.
To Next Page
