10

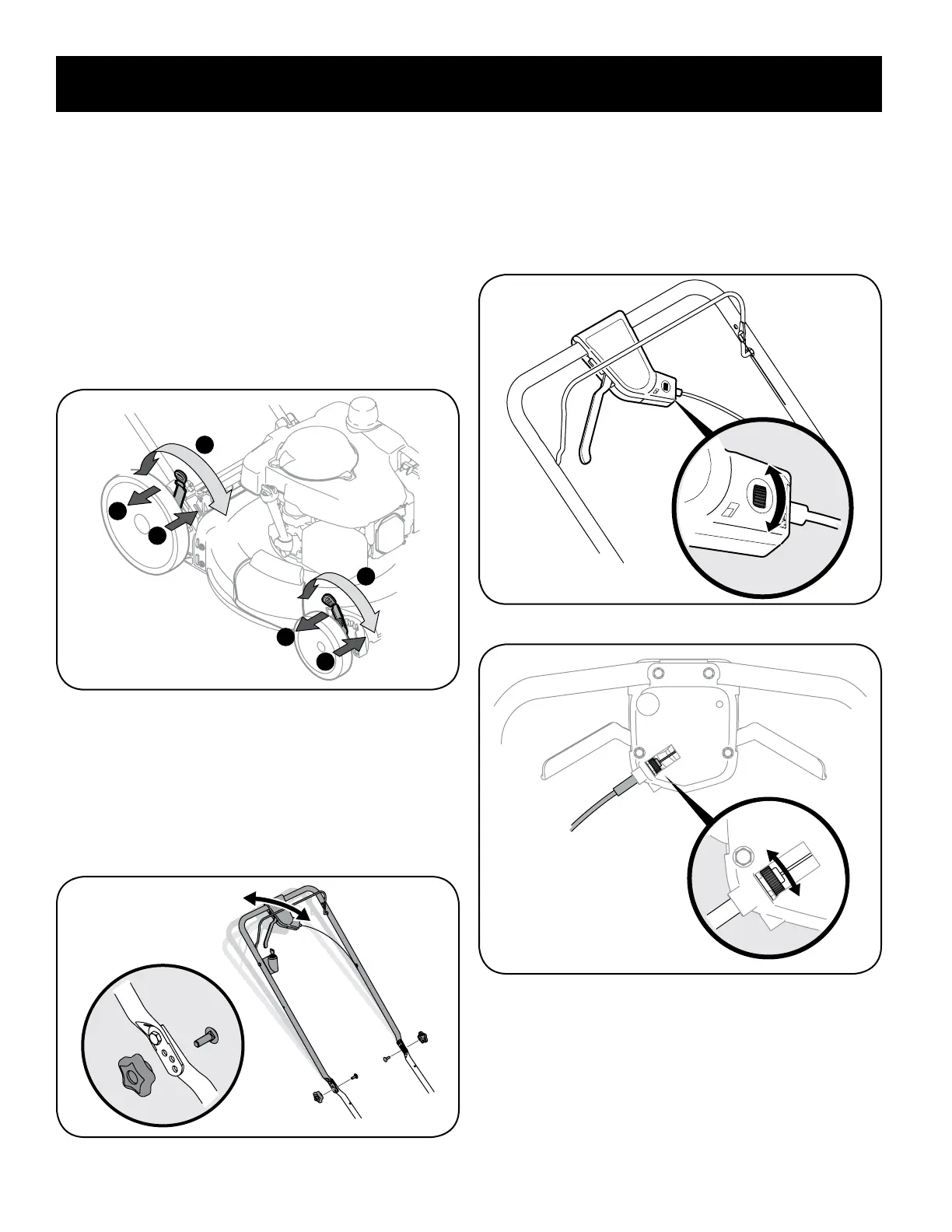

ADJUSTMENTS
Adjustments
Cutting Height
There is a cutting height adjustment lever located above the front and rear right
wheel.
1. Pull the height adjustment lever outward towards wheel (unit will tend to
fall when lever is moved outward). See Figure 10.
2. Move lever to desired position for a change in cutting height. See Figure 10.
3. Release lever towards deck.
IMPORTANT: All wheels must be placed in the same position. For rough or uneven
lawns, move each height adjustment lever to a higher position. This will prevent you
from cutting the grass too close to the ground.
3
2
2
1
3
1
Lower
Lower
Higher
Higher
Figure 10
Handle Pitch (If Equipped)
For convenience of operation, you may adjust the pitch of the handle as follows:
1. Remove wing nuts and carriage bolts from handle. See Figure 11.
2. Position the handle in one of the three positions that is most comfortable.
See Figure 11 inset.
3. Secure into position with wing nuts and carriage bolts removed in Step 1.
Figure 11
Drive Control (If Equipped)
The adjustment wheel is located in the drive control handle housing and is used
to tighten or loosen the drive belt. You will need to adjust the drive control if the
mower does not propel itself with the drive control engaged or if the mower’s
wheels hesitate with the drive control engaged. If either of these conditions occur,
rotate adjustment wheel clockwise to tighten cable or counterclockwise to loosen
the cable. See Figure 12 or Figure 13.
Figure 12
Figure 13
