CyberPower CP800AVR Battery Replacement Manual

7
10
8 9
11
K01-0000611-01
FTTx Series

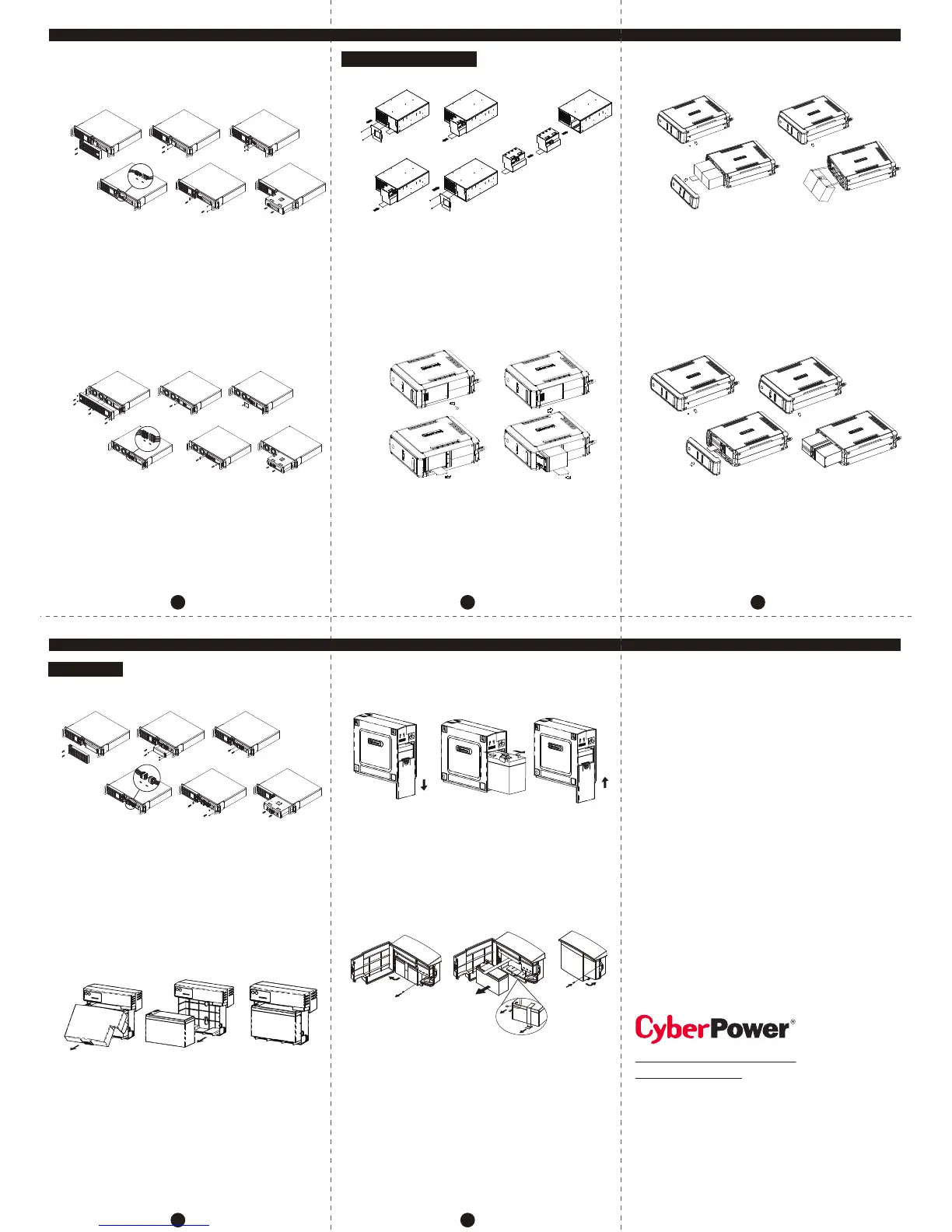

1. Remove the battery cover.
2. Disconnect battery cable connector to remove battery.
3. Replace with new battery and re-connect the battery connector.
4. Make sure battery is fixed properly in the compartment and close the
battery cover.
MODEL: CSN27U12V-NA2, CSN27U12V-NA3,
CSN27U12V-NA3-G, CSN27U12V-XL
1 2 3
1. Slide off the battery cover at the back of the DTC36U12V unit.
2. Remove the battery from the enclosure.
3. Disconnect both battery cable connectors.
4. Install the new battery by connecting the red lead to the positive
terminal and the black lead to the negative terminal.
5. Slide the battery back into the normal operation.
6. Replace battery cover to resume normal operation.
MODEL: DTC36U12V-NA3-G
1 2 3
1. Remove the case screw.
2. Open the battery cover.
3. Loosen the battery strap.
4. Disconnect battery cable connector to remove battery.
5. Replace with new battery and re-connect the battery connector.
6. Tighten the battery strip
7. Close the battery cover and lock the case screw.
MODEL: CS24C12V2-E
1 2 3
1. Remove the six retaining screws, and remove the front panel from the
UPS.
2. Remove the two retaining screws for the cable protection cover and
remove the cover.
3. Remove the two retaining screws from the cable connectors.
4. Disconnect the black and red cable.
5. Remove the three retaining screws holding the battery pack in place.
6. Remove the battery pack.
7. Install the new battery pack. Assemble the screws, cover, cable and
front panel in the reverse order of the previous steps. Charge the unit
for 4-8 hours to ensure the UPS performs expected runtimes.
MODEL: PR1000LCDRTXL2Ua, PR1500LCDRTXL2U,
PR2200LCDRTXL2U, PR3000LCDRT2U,
PR3000LCDRTXL2U
654
1 2 3
1. Remove the right side front panel.
2. Remove the three retaining screws for the cable protection cover and
remove the cover.
3. Remove the two retaining screws from the cable connectors.
4. Disconnect the black and red cable.
5. Remove the four retaining screws holding the battery pack in place.
6. Remove the battery pack.
7. Install the new battery pack. Assemble the screws, cover, cable and
front panel in the reverse order of the previous steps. Charge the unit
for 4-8 hours to ensure the UPS performs expected runtimes.
MODEL: OR1500PFCRT2U, OR2200PFCRT2U
4
1 2 3
5 6
PFC SINEWAVE Series
1. Turn the UPS on its side. Remove the retaining screw located on the
bottom of the UPS.
2. Slide the battery compartment cover completely off of the unit.
3. Remove the batteries from the compartment.
4. Disconnect the battery wires from the batteries.
5. Install the replacement batteries by connecting the red wire (+) and
black wire (-) to the same color connectors from the battery pack. Put
the batteries back into the compartment.
6. Slide back the battery compartment cover and tighten the retaining
screw. Recharge the UPS for 8-16 hours to fully charge the battery.
MODEL: CP850PFCLCD, CP1000PFCLCD
3 4
1
2
1. Turn the UPS on its side. Remove the front panel retaining screws
located on the bottom of the UPS.
2. Slide the battery compartment cover (front panel) completely off of the
unit.
3. Remove the batteries from the compartment.
4. Disconnect the battery wires from the batteries.
5. Install the replacement batteries by connecting the red wire (+) and
black wire (-) to the same color connectors from the battery pack. Put
the batteries back into the compartment.
6. Slide back the battery compartment cover and tighten the retaining
screws. Recharge the UPS for 8-16 hours to fully charge the battery.
MODEL: CP1350PFCLCD
1
3 4
2
1. Turn the UPS on its side. Remove the front panel retaining screws
located on the bottom of the UPS.
2. Slide the battery compartment cover (front panel) completely off of the
unit.
3. Remove the batteries from the compartment.
4. Disconnect the battery wires from the batteries.
5. Install the replacement batteries by connecting the wire bundle
(composed of one red wire and one black wire) to the connector from
the battery pack. Put the batteries back into the compartment.
6. Slide back the battery compartment cover and tighten the retaining
screws. Recharge the UPS for 8-16 hours to fully charge the battery.
MODEL: CP1500PFCLCD
1
3 4
2
1 2
4 5
3
1. Remove the front panel.
2. Remove the two retaining screws of the cable protection cover and
remove the cover.
3. Pull the plastic sticker out slowly to remove the battery module.
4. Put the new battery modules back into the compartment.
5. Tighten the screws and replace the cable protection cover and the front
panel.
MODEL: PR5000LCDRTXL5U, PR6000LCDRTXL5U
1. Remove the right side front panel.
2. Remove the three retaining screws for the cable protection cover and
remove the cover.
3. Remove the two retaining screws from the cable connectors.
4. Disconnect the black and red cable.
5. Remove the four retaining screws holding the battery pack in place.
6. Remove the battery pack.
7. Install the new battery pack. Assemble the screws, cover, cable and
front panel in the reverse order of the previous steps. Charge the unit
for 4-8 hours to ensure the UPS performs expected runtimes.
MODEL: PR1000LCDRT2U, PR1000LCDRTXL2U,
PR1500LCDRT2U, PR2200LCDRT2U, PR3000SWRM2U
21
!
3
4
5
6
Cyber Power Systems, Inc.
www.cyberpower.com
For USA and Canada:
4241 12th Ave East, Suite 400
Shakopee, MN 55379
Toll-free: (877) 297-6937
For all other regions:
Please visit our website for local contact information.
