D-Link DAP-1530 User Manual

26D-Link DAP-1530 User Manual
Section 3 - Conguration

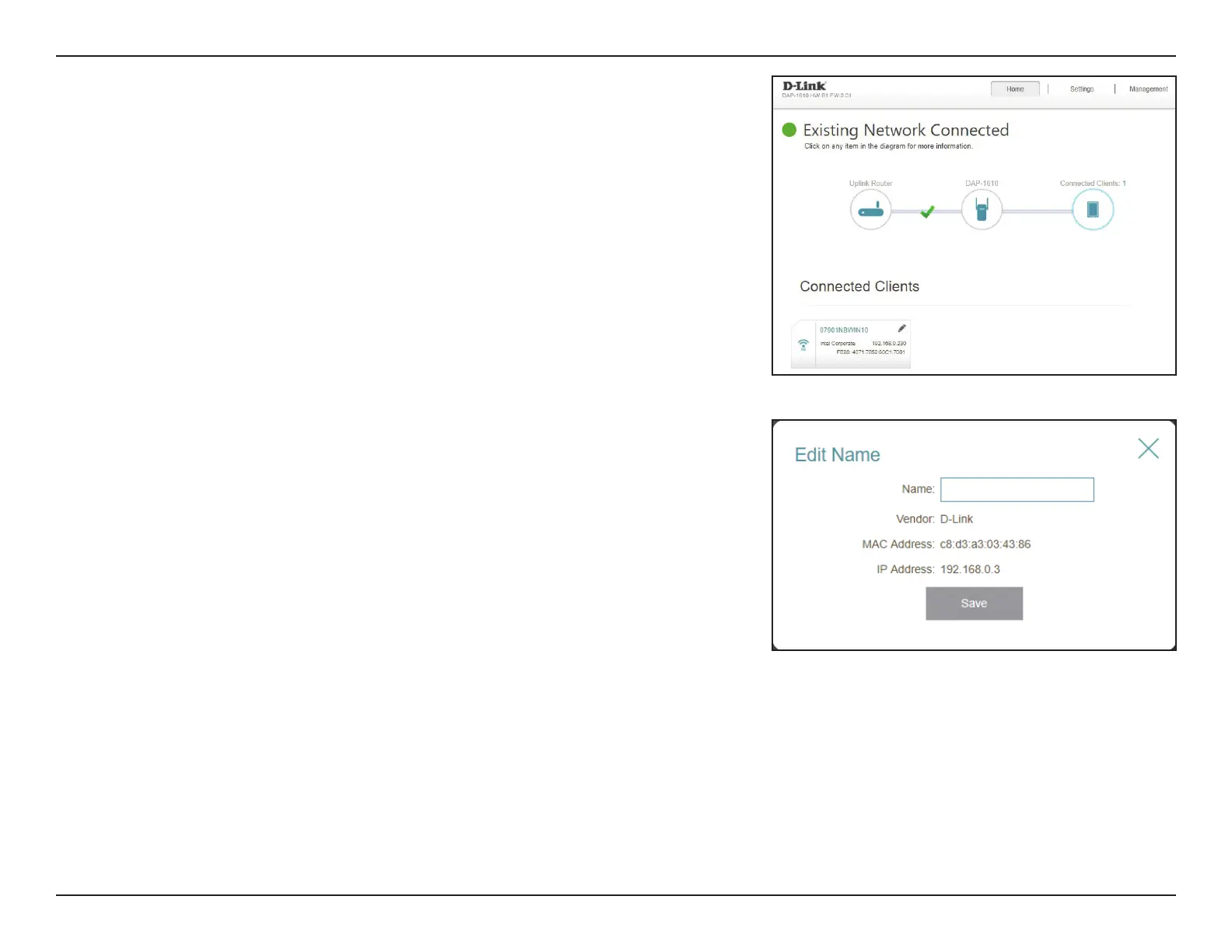

Clicking the Connected Clients icon will show you the devices that are
currently connected to the DAP-1530, the network they are connected to,
and their IP addresses.
To edit each client’s settings, click the pencil icon on the client you want to
edit.
Name Enter a custom name for this client.
Vendor Displays the vendor of the device.
MAC Address Displays the MAC address of the device.
IP Address Displays the current IP address of this client.
Click Save when you are done.

D-Link DAP-1530 Specifications

General

Type	Network repeater
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Antenna type	External
Antennas quantity	2
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.3ab
Wi-Fi data rate (max)	433 Mbit/s
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	8 MB
Internal memory	64 MB
Certification	FCC, CE, IC, UL
Product color	Grey, White
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	48.7 mm
Width	50.7 mm
Height	97.9 mm
Weight	116 g
