D-Link DAP-2682 User Manual

53D-Link DAP-2682 User Manual
Section 3 - Conguration

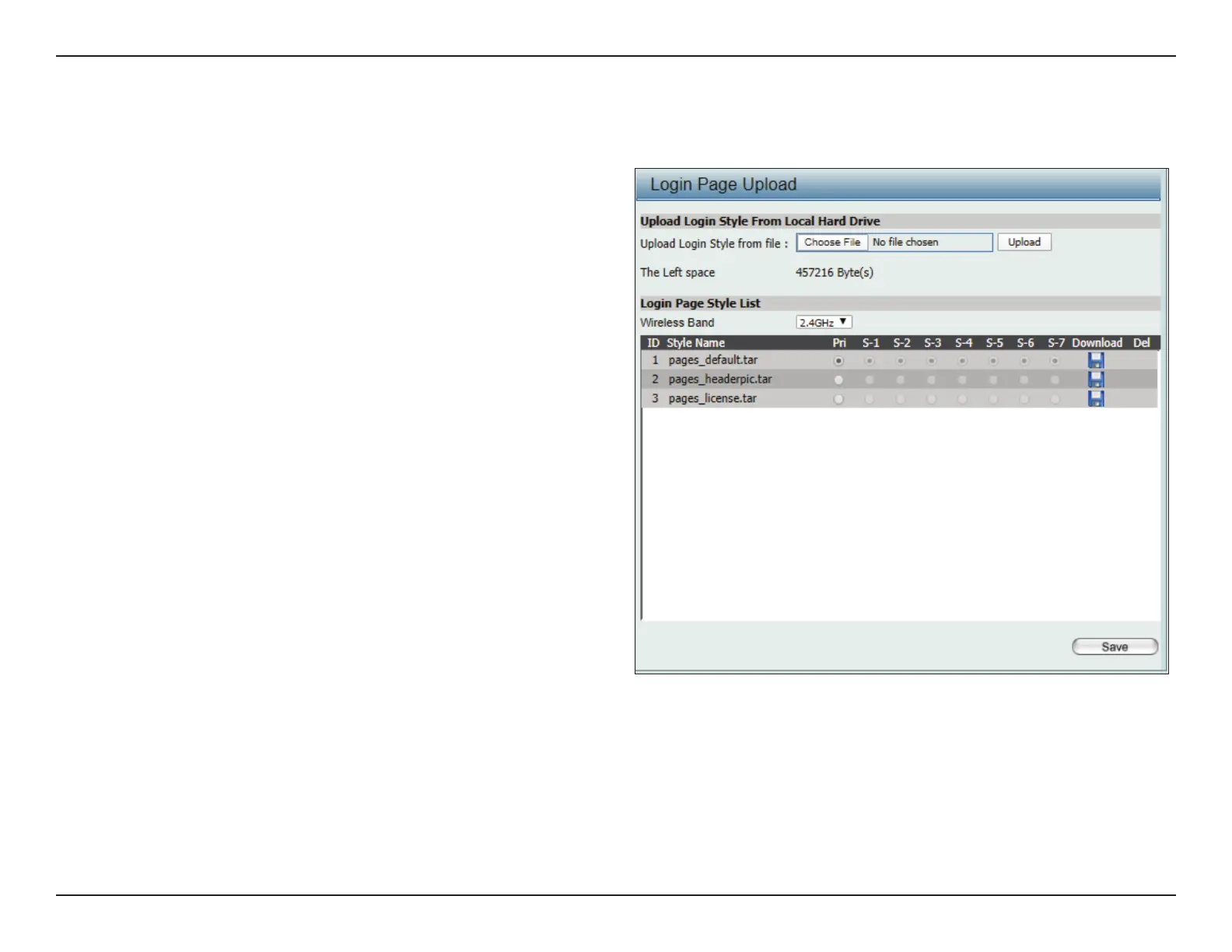

In this window, users can upload a custom login web page that will be used by the captive portal feature. Click the Browse button to navigate to
the login style located on the managing computer and then click the Upload button to initiate the upload.
Upload Login Style
From Local Hard Drive:
Login Page Style List :
Save:
In this eld the path to the login style le that
will be uploaded is be displayed. Alternatively,
the path can be manually entered here.
Select the wireless band and login style that will
be used in each SSID here. Click the download
button to download the template le for the
login page and click the delete button to delete
the template le.
Click to save the updated configuration.
To make the updates permanent, click
Conguration > Save and Activate.
Login Page Upload

D-Link DAP-2682 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Frequency band	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Virtual LAN features	Multiple VXLAN (MUX VLAN)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mean time between failures (MTBF)	341897 h
Maximum data transfer rate (5 GHz)	1700 Mbit/s
Maximum data transfer rate (2.4 GHz)	600 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA2
Number of SSID supported	16
Service Set Identifier (SSID) features	SSID broadcast
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	2
Input current	2.5 A
AC input voltage	12 V
Power consumption (max)	15.5 W
Placement	Ceiling, Wall
Certification	FCC, CE, UL
Product color	White
LED indicators	Power, Status
Antenna type	Internal
Antenna gain level (max)	4.8 dBi
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	190 mm
Height	43.7 mm
Weight	551.6 g
