11
MOUNTING THE SWITCH ON A WALL
The DES-1005D/ DSS-5+ can also be mounted on a wall. Two mounting
slots are provided on the bottom of the switch for this purpose. Please
make sure that the front panel is exposed in order to view the LEDs.

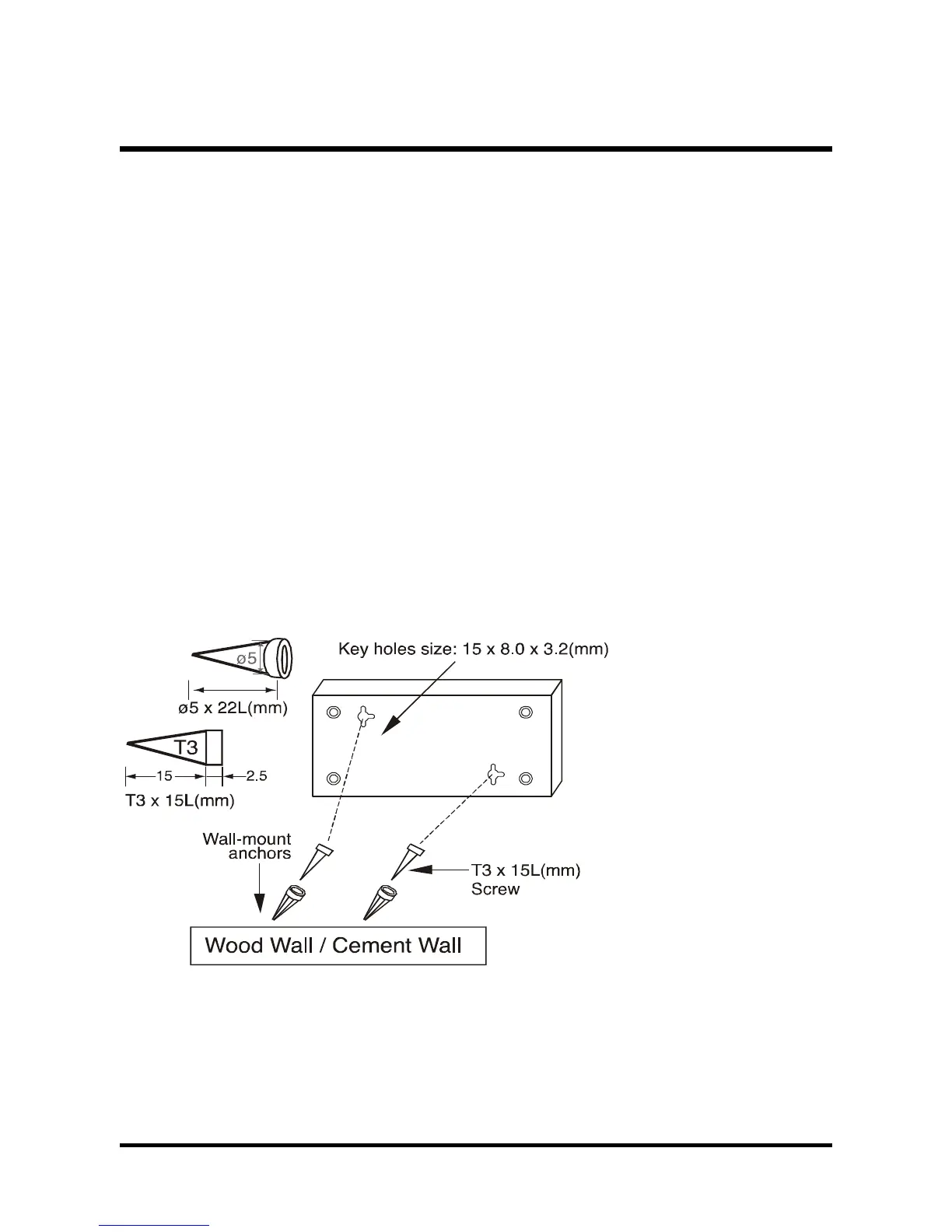

Please refer to the illustration below:
A.) Mounting on a cement wall
1. Mount the Nylon screw anchors into a cement wall.
2. Drive the T3 x 15L screws into the Nylon screw anchors.
3. Hook the mounting holes of the switch back on the screws; you
have completed the wall-mount.
B.) Mounting on a wood wall
1. Drive the T3 x 15 L screws into the wood wall.
2. Hook the mounting holes of the switch back on the screws; you
have completed the wall-mount.
(1) 3/4 inch minimum
for wood wall
(2) 3 inch minimum
for cement wall.
