D-Link DGS-108 User Manual

D-Link DGS-108 Unmanaged Gigabit Ethernet Switch
9
Section 3
Connecting The Switch
Switch To End Node
Switch To Hub or Switch
Connecting To a Server
Switch To End Node
End nodes include PCs outfitted with a 10, 100, or 1000 Mbps RJ-45 Ethernet/Fast Ethernet Network Interface
Card (NIC) and most routers.
An end node can be connected to the Switch via a twisted-pair Category 3, 4, 5, or 5e UTP/STP cable. The end
node can be connected to any of the ports of the Switch.

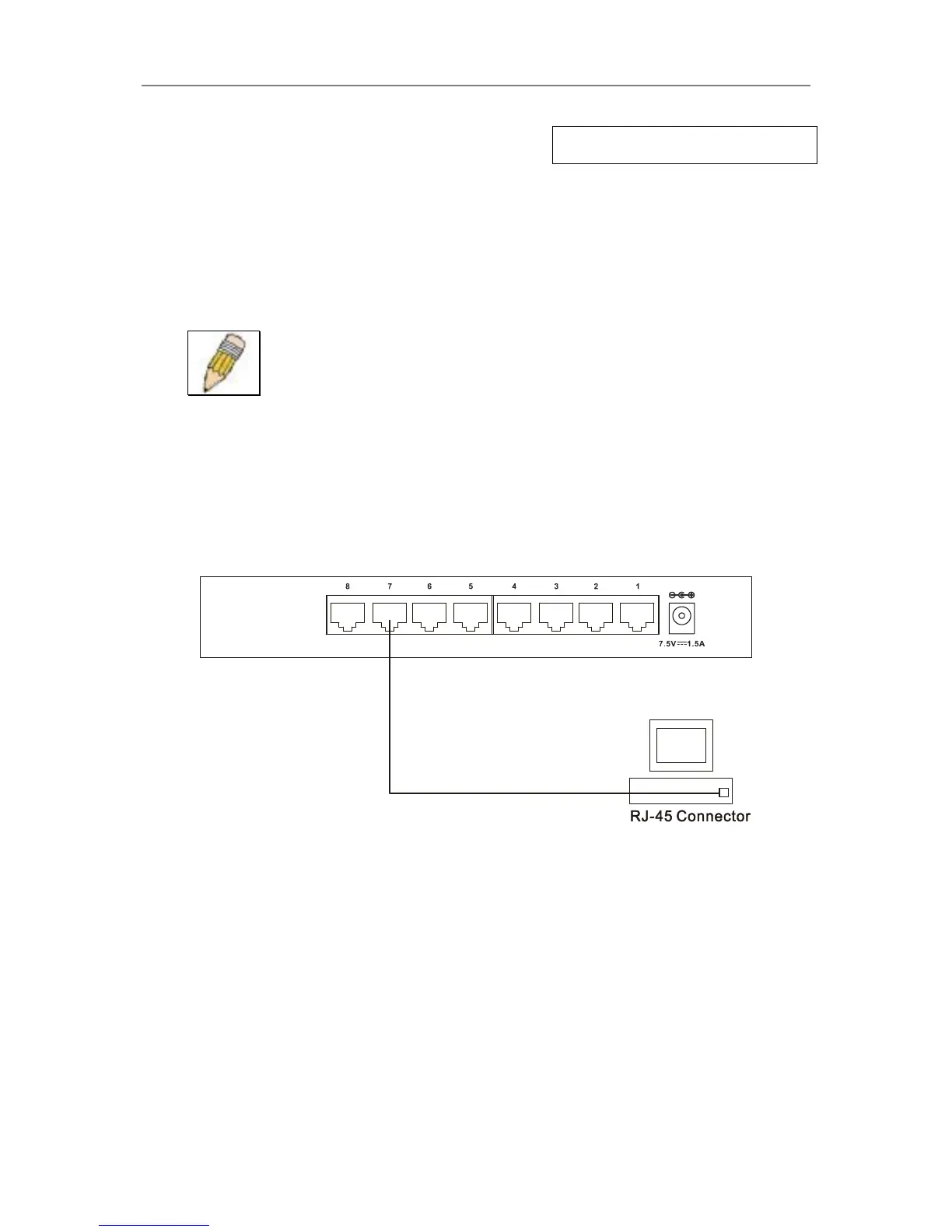

Figure 3-1. Switch connected to an end node
The Link/Act LEDs for each UTP port light green when the link is valid. The LED over the port label indicates
a port speed of either 10/100 Mbps or 1000Mbps. A blinking LED on the bottom indicates packet activity on that
port.
Switch to Hub or Switch
These connections can be accomplished in a number of ways using a standard Ethernet cable.
• A 10BASE-T hub or switch can be connected to the Switch via a twisted-pair Category 3, 4, 5, or 5e
UTP/STP cable.
• A 100BASE-T hub or switch can be connected to the Switch via a twisted -pair Category 5 UTP/STP
cable.
NOTE:
All eight high-performance NWay Ethernet ports can support both MDI-
II and MDI-X connections.

D-Link DGS-108 Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	0.128 MB
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10/100/1000 Mbps
Dimensions (WxDxH)	162 x 102 x 28 mm
Connectivity technology	Wired
10G support	-
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Switch type	Unmanaged
Switch layer	L2
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Certification	FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
Product color	Black
Rack mounting	No
LED indicators	Link, Power, Y
Housing material	Metal
Input current	1 A
Input voltage	5 V
Power consumption (typical)	4.5 W
Mean time between failures (MTBF)	2053751 h
Heat dissipation	9.548 BTU/h
Storage temperature (T-T)	10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	440 g
