DIR-825 AC1200 Wave 2 MU-MIMO Wi-Fi Gigabit Router
with 3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface
Bandwidth Control
On the Advanced / Bandwidth Control page, you can setup the rate limit for traffic transmitted
from every port of the router.

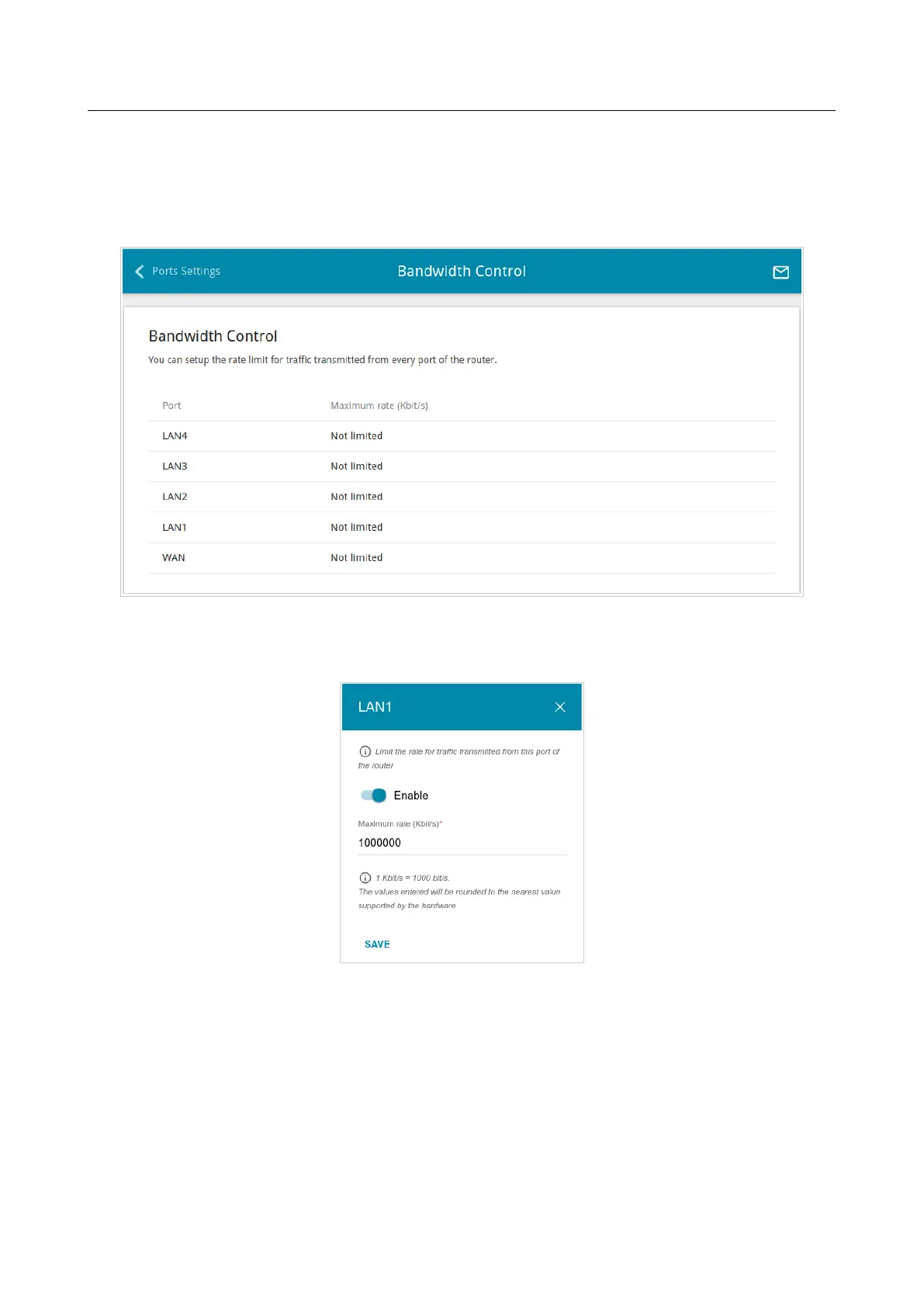

Figure 141. The Advanced / Bandwidth Control page.
By default, the rate is not limited. If you want to limit the rate for traffic transmitted from a port,
select the line corresponding to this port.
Figure 142. The window for setting up rate limit.
In the opened window, move the Enable switch to the right and enter the maximum value of the
transmitted traffic rate for this port in the Maximum rate field. Then click the SAVE button.
If you want to remove the rate limit for this port, move the Enable switch to the left and click the
SAVE button.
Page 185 of 249
