D-Link DSL-2740U User Manual

DSL-2740U Wireless ADSL2+ Router with Ethernet WAN Support
User Manual
Configuring via Web-based Interface
Con$guring LAN Ports for IPTV/VoIP
1. On the IPTV page, select the Is an STB connected to the device checkbox.

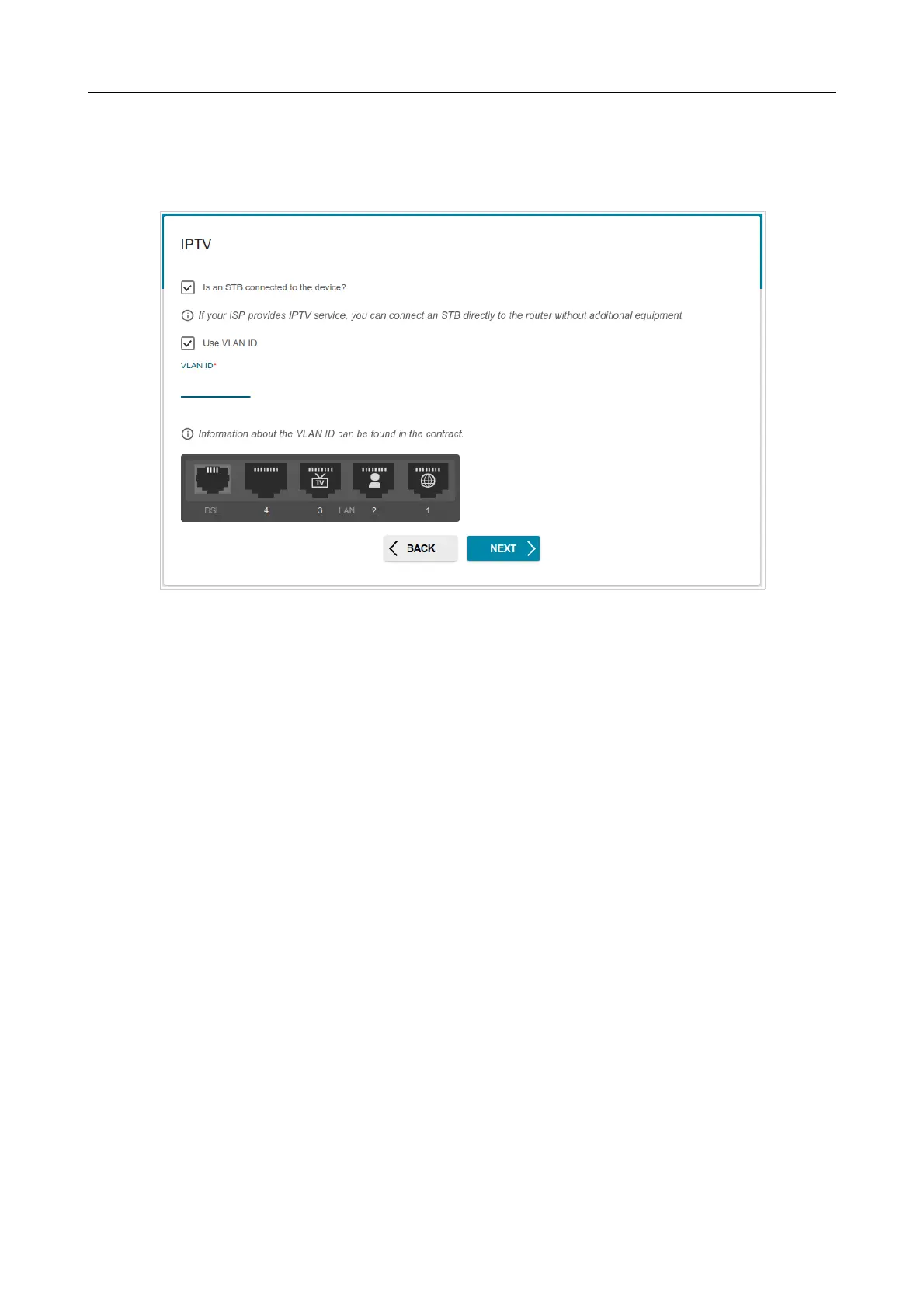

Figure 32. The page for selecting a LAN port to connect an IPTV set-top box.
2. Select a free LAN port for connecting your set-top box.
3. For the Ethernet connection method: If the IPTV service is provided via a VLAN channel,
select the Use VLAN ID checkbox and fill in the VLAN ID field.
4. For the ADSL connection method: Specify the VPI and VCI values in the relevant fields.
5. Click the NEXT button to continue or click the BACK button to specify other settings.
Page 44 of 174

D-Link DSL-2740U Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector	RJ-11
ADSL interface cable	24/26 AWG twisted pair
LAN interface connector	RJ-45
LAN interface standard	10/100BASE-T Ethernet
