Configuring via Web-based Interface
DSL Status
The information shown on the Statistics / DSL Status page can be used for troubleshooting and
diagnosing connection problems.
In the DSL status and Line sections you can view data on your DSL line: the line state, data
transfer rate (downstream/upstream traffic), physical parameters of the line (SNR, output power).
The Framing section displays information on transmitted DSL frames.

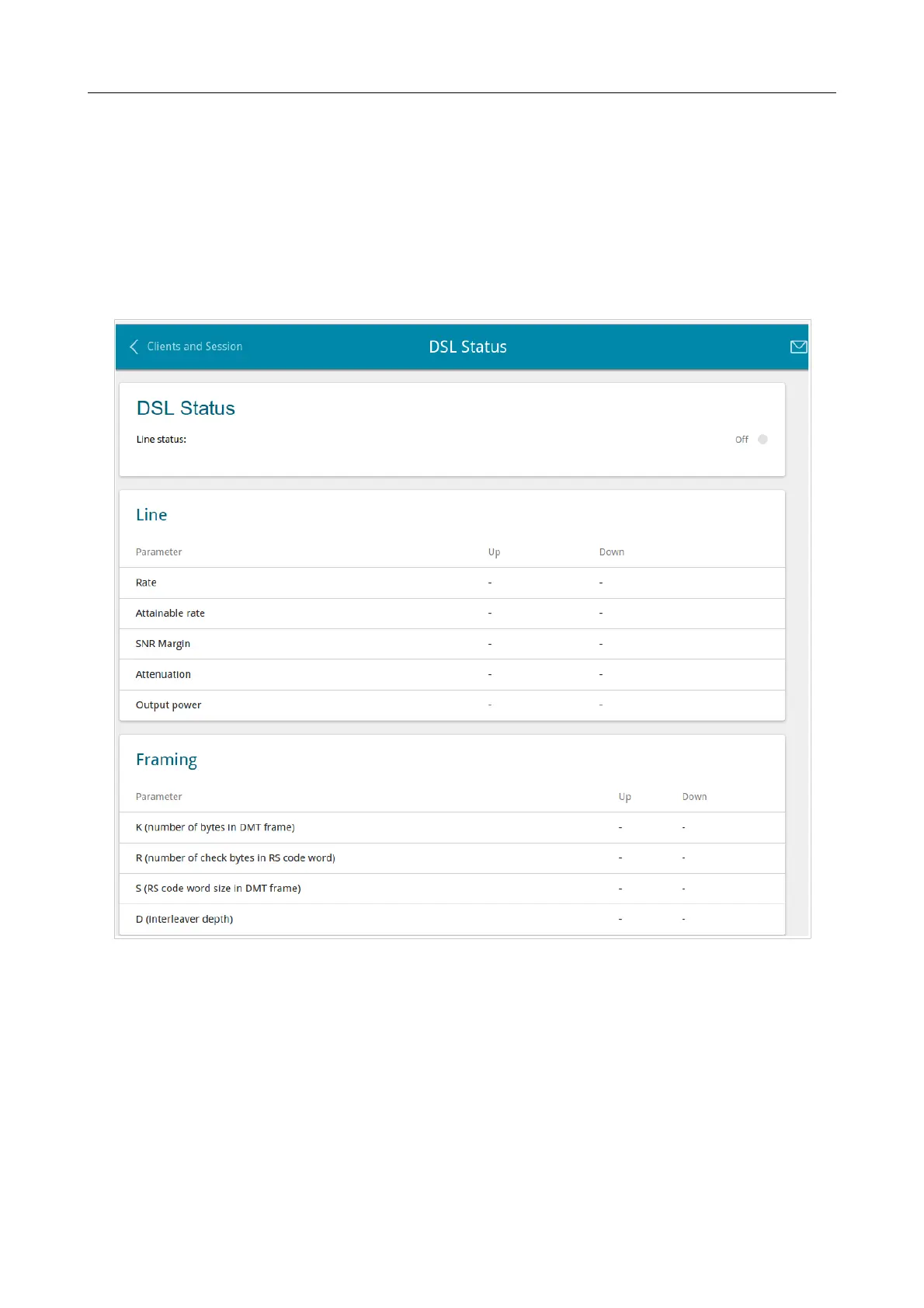

Figure 44. The Statistics / DSL Status page.
Page 58 of 174

D-Link DSL-2740U Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector	RJ-11
ADSL interface cable	24/26 AWG twisted pair
LAN interface connector	RJ-45
LAN interface standard	10/100BASE-T Ethernet
