D-Link DSL-2750E Quick Start Guide

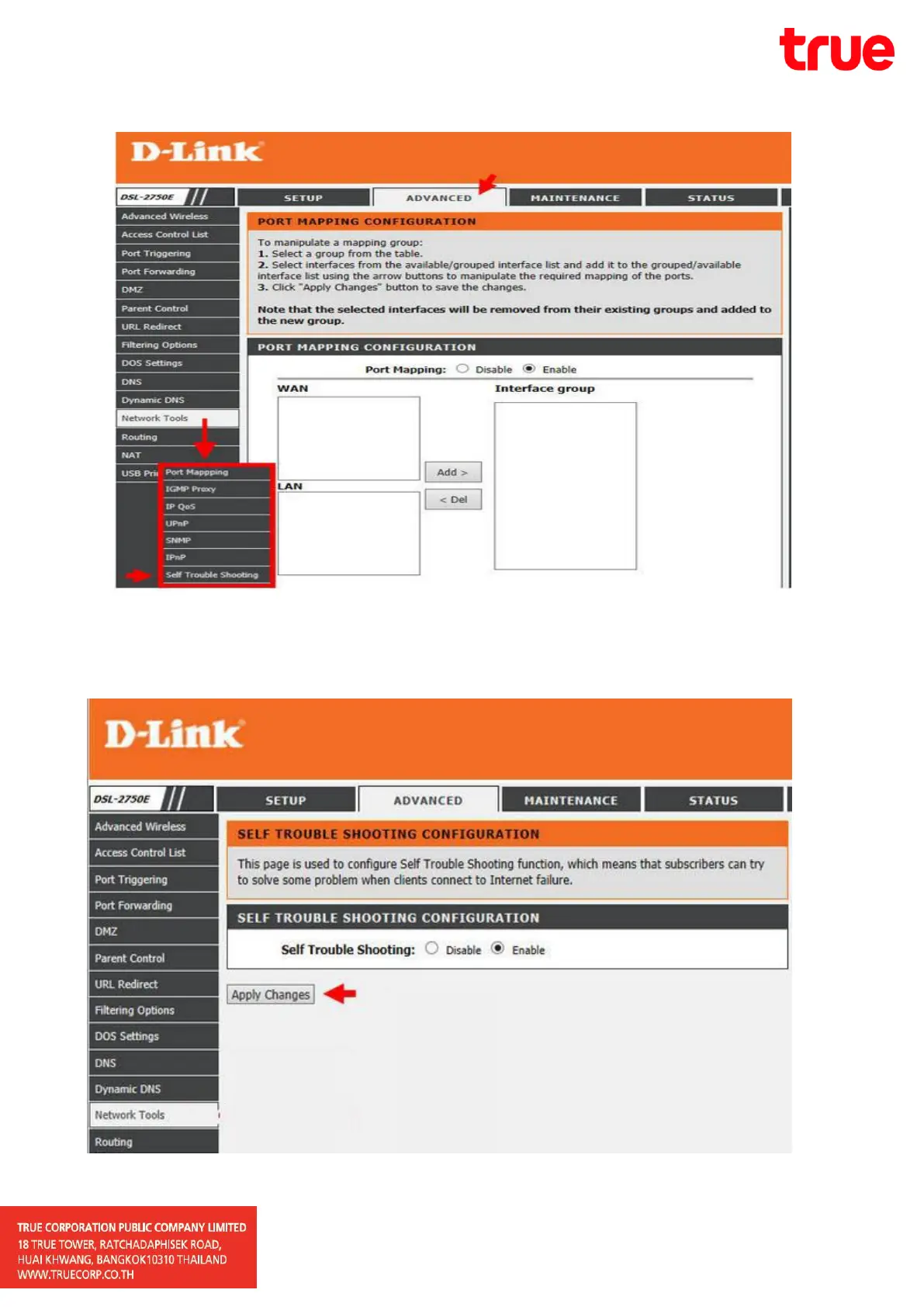

3. Click at ‘ADVANCED’ and click ‘Network Tools’ and then ‘Self Trouble Shooting’.
4. There’ll be a page of ‘Self Trouble shooting configuration’ You can select
Enable/ Disable and click ‘Apply Changes’

D-Link DSL-2750E Specifications

ADSL Standards

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface	RJ-45 port for 10/100BASE-T Ethernet connection
