D-Link DWA-192 User Manual

31D-Link DWA-192 User Manual
Appendix B - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
• Click on Start > Control Panel (make sure you are in Classic View). Double-click
on the Network and Sharing Center icon and then click on Change adapter
settings.
• Right-click on the Local Area Connection which represents your D-Link wireless
network adapter which will be connected to your network.
• Highlight Internet Protocol Version 4 (TCP /IPv4) and click Properties.

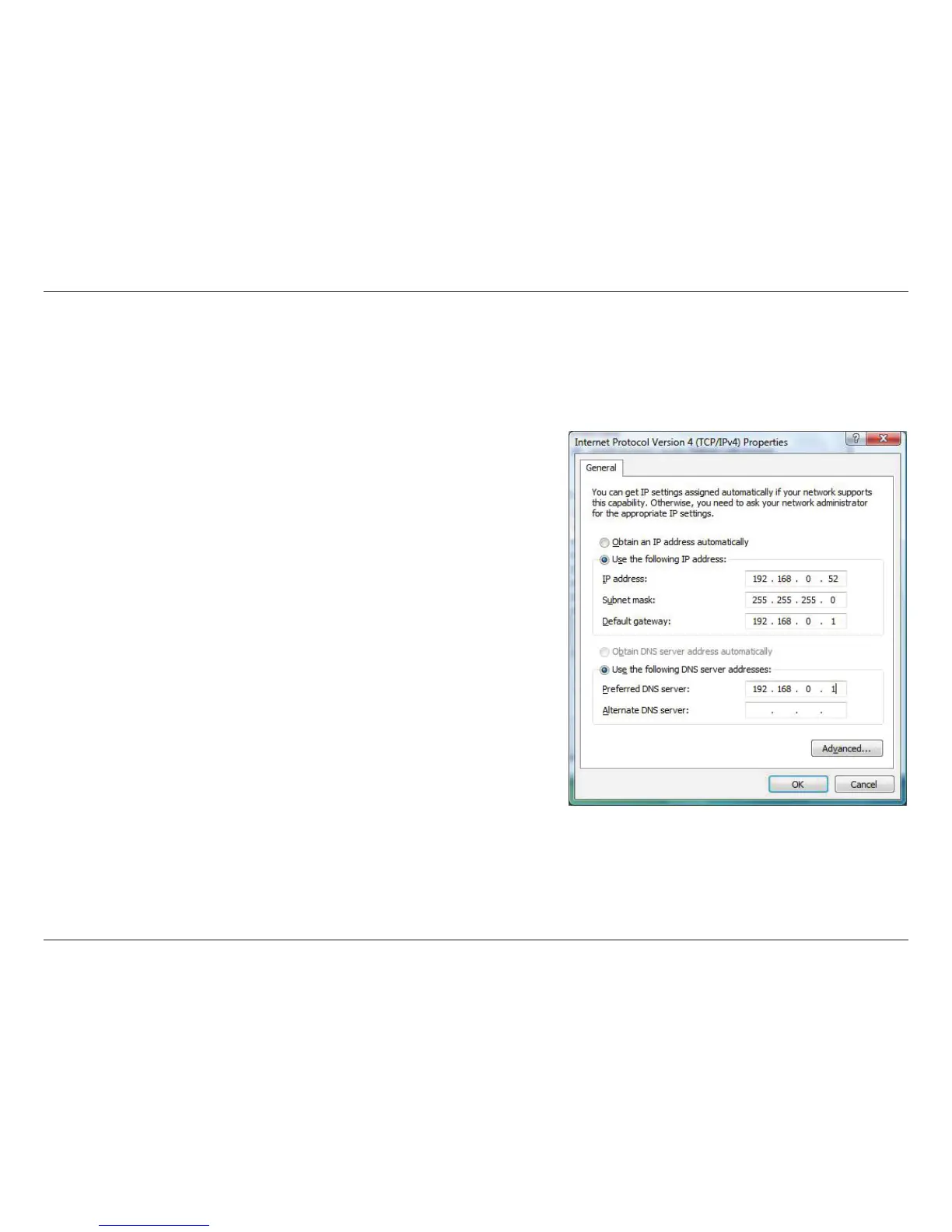

• Click Use the following IP address and enter an IP address that is on the same
subnet as your network or LAN IP address on your router or network.
Example: If the router’s LAN IP address is 192.168.0.1, make your IP address
192.168.0.X where X is a number between 2 and 99. Make sure that the number
you choose is not in use on the network.
• Set Default Gateway the same as the LAN IP address of your router or gateway.
• Set Primary DNS the same as the LAN IP address of your router or gateway.
• The Secondary DNS is optional (you may enter a DNS server from your ISP).
• Click OK to save your settings.

D-Link DWA-192 Specifications

Operating Environment

operating temperature	0 °C to 40 °C
operating humidity	10% to 90% maximum (non-condensing)
frequency range	2.4 GHz to 2.4835 GHz, 5.150 GHz to 5.850 GHz

Power

operating voltage	5 V DC +/- 10%
current consumption	880 mA

Weight and Dimensions

weight	167 grams
dimensions	79.92 x 79.92 x 77 mm
