Locating WLAN Devices
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 654
D-Link UWS User Manual
Managed AP Location Summary
Use the Managed AP Location Summary page to view summary information about the location of the APs in
the wireless network. The page displays the APs with a location that has been manually configured or imported
from the WLAN Visualization tool.

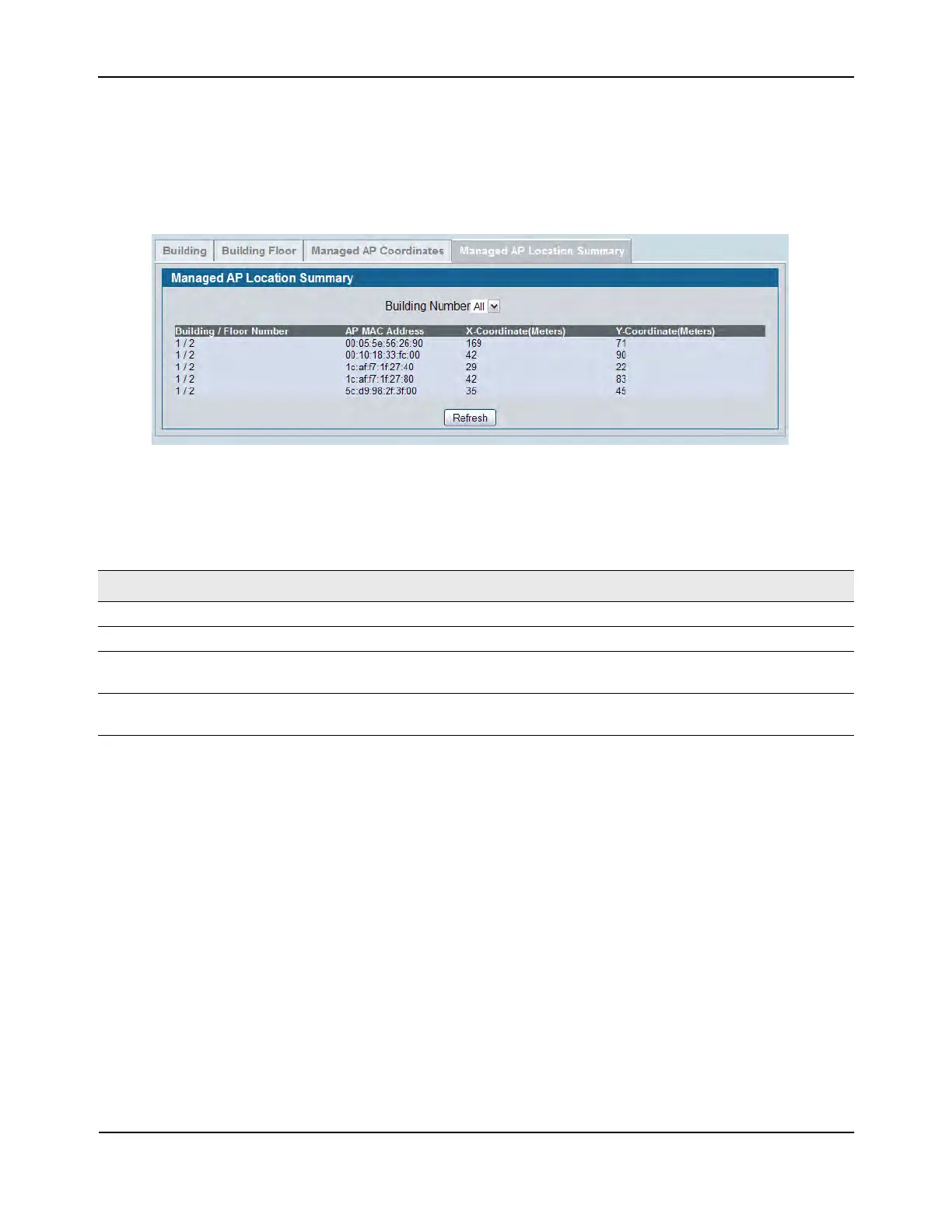

Figure 411: Managed AP Location Summary
The following table shows the fields available on the Managed AP Location Summary page.
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Table 377: Managed AP Location Summary
Field Description
Building/Floor Number Identifies the building and floor where the AP is located.
AP MAC Address Identifies the MAC address of the AP
X-Coordinate Identifies the X axis offset of the managed AP from some arbitrary 0,0 point on
the building floor.
Y-Coordinate Identifies the Y axis offset of the managed AP from some arbitrary 0,0 point on
the building floor.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
